Name: Oil Pump (Cologne V6 4.0 EFI (SOHC)) ((V) FROMAA000001)
Rating: 5.0 (1 reviews)

View All

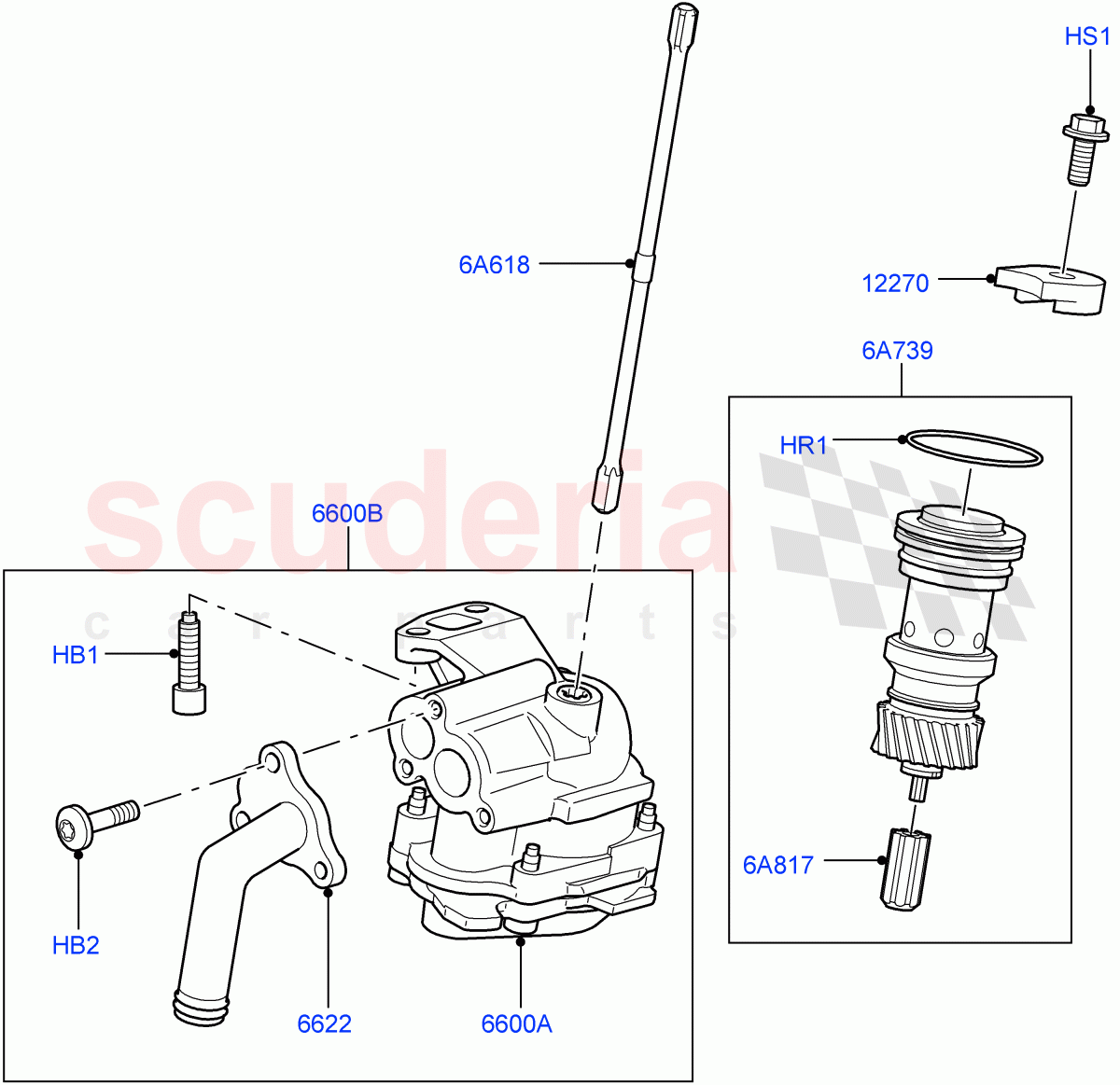

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR000380	BOLT - HEX.HEAD	$7.55	To Order

Photo	Part No	Description	Price (each)	Stock
	6165957	BOLT - HEX.HEAD	$0.88	To Order

Photo	Part No	Description	Price (each)	Stock
	1038048	O-RING	$2.40	To Order

Photo	Part No	Description	Price (each)	Stock
	6729404	SCREW	$0.73	To Order

Photo	Part No	Description	Price (each)	Stock
	4076633	TUBE - OIL PUMP INLET	$17.94	To Order

Photo	Part No	Description	Price (each)	Stock
	4629702	CLAMP	$804.85	To Order

Photo	Part No	Description	Price (each)	Stock
	4089070	PUMP - OIL	$719.18	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000440	PUMP - OIL	$494.12	To Order

Photo	Part No	Description	Price (each)	Stock
	1141357	SHAFT - INTERMEDIATE	$396.67	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000418	DRIVE - OIL PUMP	$80.34	To Order

Photo	Part No	Description	Price (each)	Stock
	3036402	SHAFT	$88.71	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR000380	BOLT - HEX.HEAD	LR000380 BOLT - HEX.HEAD M8 x 28MM / From: AA000001	$7.55	2
HB2	6165957	BOLT - HEX.HEAD	6165957 BOLT - HEX.HEAD M6 x 22MM / From: AA000001	$0.88	3
HR1	1038048	O-RING	1038048 O-RING 29.82 X 1.78MM / From: AA000001	$2.40	1
HS1	6729404	SCREW	6729404 SCREW M6 X 20MM / From: AA000001	$0.73	1
6A618	1141357	SHAFT - INTERMEDIATE	1141357 SHAFT - INTERMEDIATE From: AA000001	$396.67	1
6A739	LR000418	DRIVE - OIL PUMP	LR000418 DRIVE - OIL PUMP From: AA000001	$80.34	1
6A817	3036402	SHAFT	3036402 SHAFT From: AA000001	$88.71	1
6600A	4089070	PUMP - OIL	4089070 PUMP - OIL From: AA000001	$719.18	1
6600B	LR000440	PUMP - OIL	LR000440 PUMP - OIL From: AA000001	$494.12	1
6622	4076633	TUBE - OIL PUMP INLET	4076633 TUBE - OIL PUMP INLET From: AA000001	$17.94	1
12270	4629702	CLAMP	4629702 CLAMP From: AA000001	$804.85	1

Oil Pump (Cologne V6 4.0 Efi (Sohc)) ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6]
