Oil Pan/Oil Level Indicator (Cologne V6 4.0 Efi (Sohc)) ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6]

Find Your Part

Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6] - Oil Pan/Oil Level Indicator (Cologne V6 4.0 EFI (SOHC)) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4413729 SCREW $1.00 To Order
Photo Part No Description Price (each) Stock
LR000387 SCREW $0.58 To Order
Photo Part No Description Price (each) Stock
4364422 SCREW $1.30 To Order
Photo Part No Description Price (each) Stock
4614315 STUD $0.89 To Order
Photo Part No Description Price (each) Stock
4537649 TUBE - OIL PUMP INLET $21.53 To Order
Photo Part No Description Price (each) Stock
4664019 PAN - ENGINE OIL $318.60 To Order
Photo Part No Description Price (each) Stock
4639173 GASKET - OIL PAN $29.76 To Order
Photo Part No Description Price (each) Stock
LR073675 PLUG - OIL DRAIN $7.90 IN STOCK
Photo Part No Description Price (each) Stock
1005593 GASKET $20.77 To Order
Photo Part No Description Price (each) Stock
LQM500050 INDICATOR - OIL LEVEL $22.34 To Order
Photo Part No Description Price (each) Stock
4569269 TUBE - OIL LEVEL INDICATOR $8.95 To Order
View All

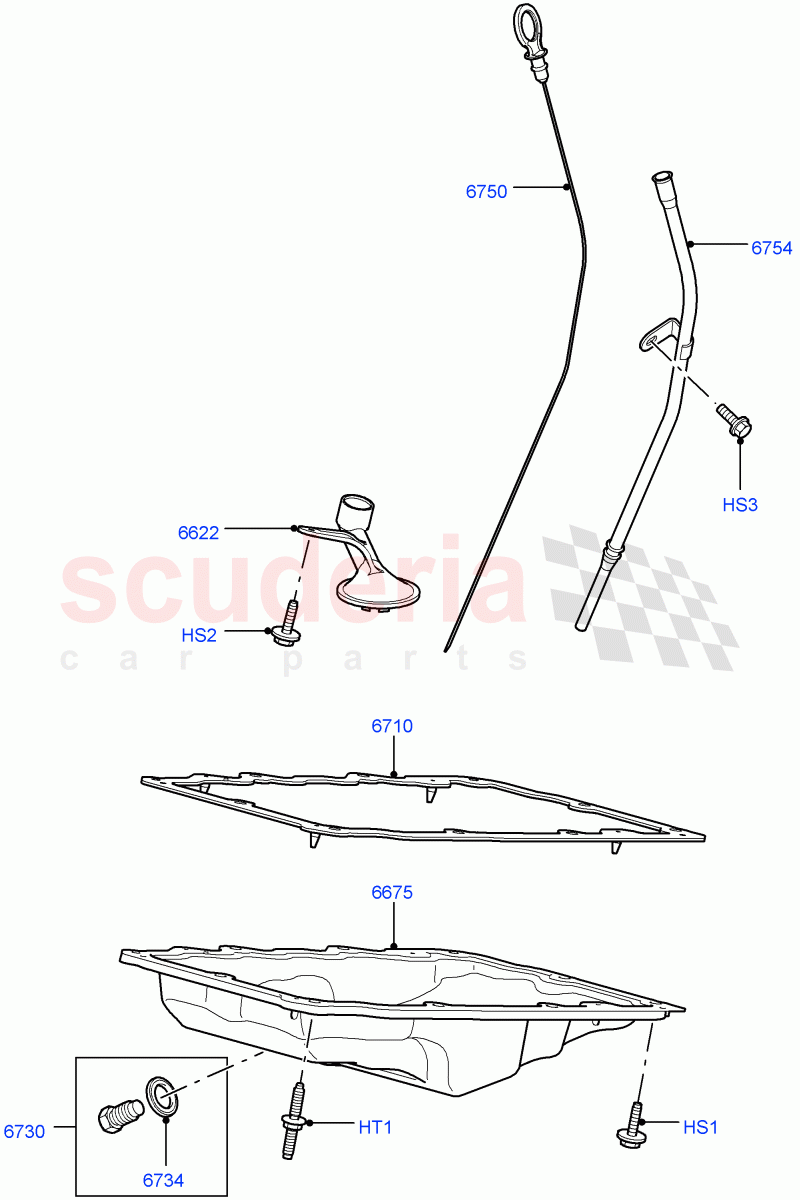

Oil Pan/Oil Level Indicator (Cologne V6 4.0 EFI (SOHC)) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 4413729
SCREW
M6 X 20MM / From: AA000001 		$1.00 10
HS2 LR000387
SCREW
M6 x 1.0 x 22.5 / From: AA000001 		$0.58 1
HS3 4364422
SCREW
M6 X 16MM / From: AA000001 		$1.30 1
HT1 4614315
STUD
M6 X 21 + M5 X 12 / From: AA000001 		$0.89 2
6622 4537649
TUBE - OIL PUMP INLET
From: AA000001 		$21.53 1
6675 4664019
PAN - ENGINE OIL
From: AA000001 		$318.60 1
6710 4639173
GASKET - OIL PAN
From: AA000001 		$29.76 1
6730 LR073675
PLUG - OIL DRAIN
For Japan Only Order With LR Prefix, Head Size: 13mm, Includes Seal, M14 X 1.5 / From: AA000001
IN STOCK 		$7.90 1
6734 1005593
GASKET
From: AA000001 		$20.77 1
6750 LQM500050
INDICATOR - OIL LEVEL
From: AA000001 		$22.34 1
6754 4569269
TUBE - OIL LEVEL INDICATOR
From: AA000001 		$8.95 1
