Balance Shafts And Drive (Cologne V6 4.0 EFI (SOHC)) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6]

View All

Land Rover Discovery 4 (2010-2016) [4.0 Petrol V6] - Balance Shafts And Drive (Cologne V6 4.0 EFI (SOHC)) ((V) FROMAA000001)

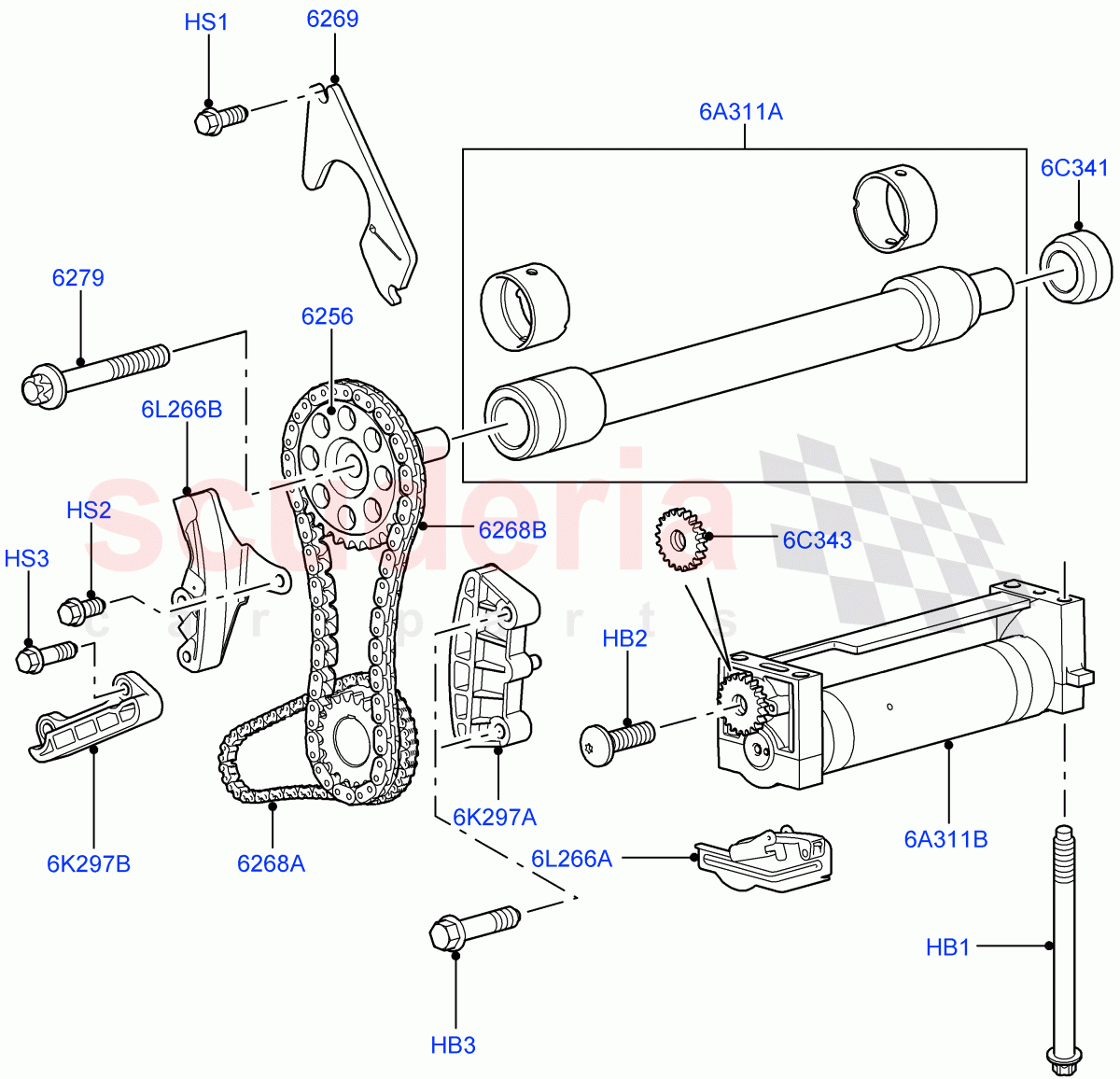

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1031400	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3045334	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1031182	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1032055	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1063180	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1063089	BOLT AND WASHER - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000605	SPROCKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1025109	PLATE - THRUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4345507	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1025293	CHAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1025098	CHAIN - TIMING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1025110	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000429	SPROCKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000002	SHAFT - BALANCE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR008467	SHAFT - BALANCE	Enquire	To Order
	LR027657	SHAFT - BALANCE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4345659	GUIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1025408	GUIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4361284	TENSIONER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4403856	TENSIONER - TIMING CHAIN	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	1031400	BOLT	1031400 BOLT M8 x 100MM / From: AA000001	-	4	Enquire
HB2	3045334	BOLT	3045334 BOLT M10 X 34MM / From: AA000001	-	1	Enquire
HB3	1031182	BOLT	1031182 BOLT M8 X 35MM / From: AA000001	-	2	Enquire
HS1	1032055	SCREW	1032055 SCREW M6 X 14MM / From: AA000001	-	2	Enquire
HS2	1063180	BOLT	1063180 BOLT M6 X 14MM / From: AA000001	-	2	Enquire
HS3	1063089	BOLT AND WASHER - HEX.HEAD	1063089 BOLT AND WASHER - HEX.HEAD M6 X 20MM / From: AA000001	-	2	Enquire
6A311A	LR000002	SHAFT - BALANCE	LR000002 SHAFT - BALANCE From: AA000001	-	1	Enquire
6A311B	LR008467	SHAFT - BALANCE	LR008467 SHAFT - BALANCE From: AA000001 / To: AA999999	-	1	Enquire
6A311B	LR027657	SHAFT - BALANCE	LR027657 SHAFT - BALANCE From: BA000001	-	1	Enquire
6C341	1025110	SPACER	1025110 SPACER From: AA000001	-	1	Enquire
6C343	LR000429	SPROCKET	LR000429 SPROCKET From: AA000001	-	1	Enquire
6K297A	4345659	GUIDE	4345659 GUIDE From: AA000001	-	1	Enquire
6K297B	1025408	GUIDE	1025408 GUIDE From: AA000001	-	1	Enquire
6L266A	4361284	TENSIONER	4361284 TENSIONER Lower / From: AA000001	-	1	Enquire
6L266B	4403856	TENSIONER - TIMING CHAIN	4403856 TENSIONER - TIMING CHAIN Upper / From: AA000001	-	1	Enquire
6256	LR000605	SPROCKET	LR000605 SPROCKET From: AA000001	-	1	Enquire
6268A	1025293	CHAIN	1025293 CHAIN From: AA000001	-	1	Enquire
6268B	1025098	CHAIN - TIMING	1025098 CHAIN - TIMING From: AA000001	-	1	Enquire
6269	1025109	PLATE - THRUST	1025109 PLATE - THRUST From: AA000001	-	1	Enquire
6279	4345507	BOLT	4345507 BOLT M12 / From: AA000001	-	1	Enquire
