Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol] - Air Conditioning System (Rear) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
JQF000011 GROMMET $14.18 To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.45 IN STOCK
Photo Part No Description Price (each) Stock
FS106256 SCREW $0.42 To Order
Photo Part No Description Price (each) Stock
4380670 SCREW $0.73 To Order
Photo Part No Description Price (each) Stock
JQY000011 SEAL - COVER $13.12 To Order
Photo Part No Description Price (each) Stock
LR013852 HOSE - AIR CONDITIONING $156.77 To Order
Photo Part No Description Price (each) Stock
LR013853 HOSE - AIR CONDITIONING $211.07 To Order
Photo Part No Description Price (each) Stock
LR013854 HOSE - AIR CONDITIONING $194.87 To Order
Photo Part No Description Price (each) Stock
LR013855 HOSE - AIR CONDITIONING $194.87 To Order
LR070652 HOSE - AIR CONDITIONING $141.90 To Order
Photo Part No Description Price (each) Stock
JUU500010 O-RING $9.45 To Order
Photo Part No Description Price (each) Stock
JUU500020 O-RING $8.83 To Order
LR031797 O-RING $8.14 To Order
Photo Part No Description Price (each) Stock
JUU500030 O-RING $9.45 To Order
View All

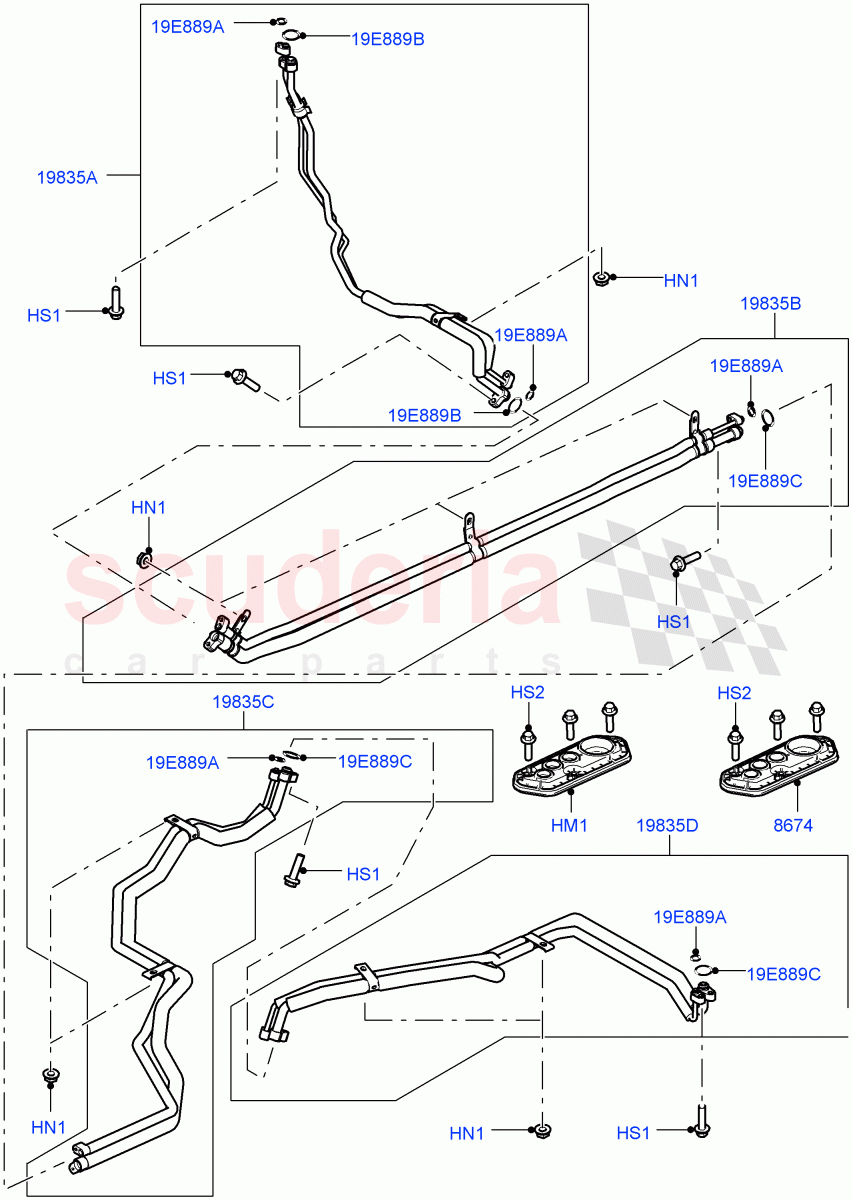

Air Conditioning System (Rear) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HM1 JQF000011
GROMMET
With Rear Seat Climate Control / 3 Holes / From: AA000001 		$14.18 1
HN1 FN106046
NUT - HEX.
With Rear Seat Climate Control / Hexagonal Head, M6 / From: AA000001
IN STOCK 		$1.45 8
HS1 FS106256
SCREW
With Rear Seat Climate Control / M6 x 25MM / From: AA000001 		$0.42 10
HS2 4380670
SCREW
Hexagonal Head, M6 X 16MM / From: AA000001 		$0.73 3
19E889A JUU500010
O-RING
With Rear Seat Climate Control / From: AA000001 		$9.45 5
19E889B JUU500020
O-RING
With Rear Seat Climate Control / From: AA000001 / To: BA584130 		$8.83 2
19E889B LR031797
O-RING
10.6 x 2.4MM / From: BA584131 		$8.14 2
19E889C JUU500030
O-RING
With Rear Seat Climate Control / From: AA000001 		$9.45 3
8674 JQY000011
SEAL - COVER
Less Rear Seat Climate Control / From: AA000001 		$13.12 1
19835A LR013852
HOSE - AIR CONDITIONING
With Rear Seat Climate Control / Front / From: AA000001 		$156.77 1
19835B LR013853
HOSE - AIR CONDITIONING
With Rear Seat Climate Control / Located On Floor, Middle / From: AA000001 		$211.07 1
19835C LR013854
HOSE - AIR CONDITIONING
With Rear Seat Climate Control / Middle And Rear / From: AA000001 		$194.87 1
19835D LR013855
HOSE - AIR CONDITIONING
With Rear Seat Climate Control / Rear, To Evaporator / From: AA000001 / To: FA999999 		$194.87 1
19835D LR070652
HOSE - AIR CONDITIONING
With Rear Seat Climate Control / Rear, To Evaporator / From: GA000001 		$141.90 1
