Air Conditioning Condensr/Compressr (3.0 V6 Diesel) ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol]

Find Your Part

Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol] - Air Conditioning Condensr/Compressr (3.0 V6 Diesel) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYG500290 BOLT - HEX.HEAD $0.50 IN STOCK
Photo Part No Description Price (each) Stock
FB108186M BOLT $4.47 IN STOCK
Photo Part No Description Price (each) Stock
LR018706 SCREW $1.00 To Order
LR000033 SCREW $0.50 To Order
Photo Part No Description Price (each) Stock
LR018707 SCREW $1.00 To Order
Photo Part No Description Price (each) Stock
JUU500110 SEAL $9.66 IN STOCK
Photo Part No Description Price (each) Stock
LR058017 COMPRESSOR - AIR CONDITIONING $1,881.35 To Order
LR056365 COMPRESSOR - AIR CONDITIONING $1,113.59 To Order
LR058017 COMPRESSOR - AIR CONDITIONING $1,881.35 To Order
Photo Part No Description Price (each) Stock
LR015556 CONDENSER $299.09 To Order
Photo Part No Description Price (each) Stock
LR061463 KIT - VALVE REPAIR $224.86 To Order
Photo Part No Description Price (each) Stock
LR013376 BRACKET - COMPRESSOR $24.83 To Order
Photo Part No Description Price (each) Stock
JRJ500020 DRYER - COMPRESSOR AIR $231.82 To Order
View All

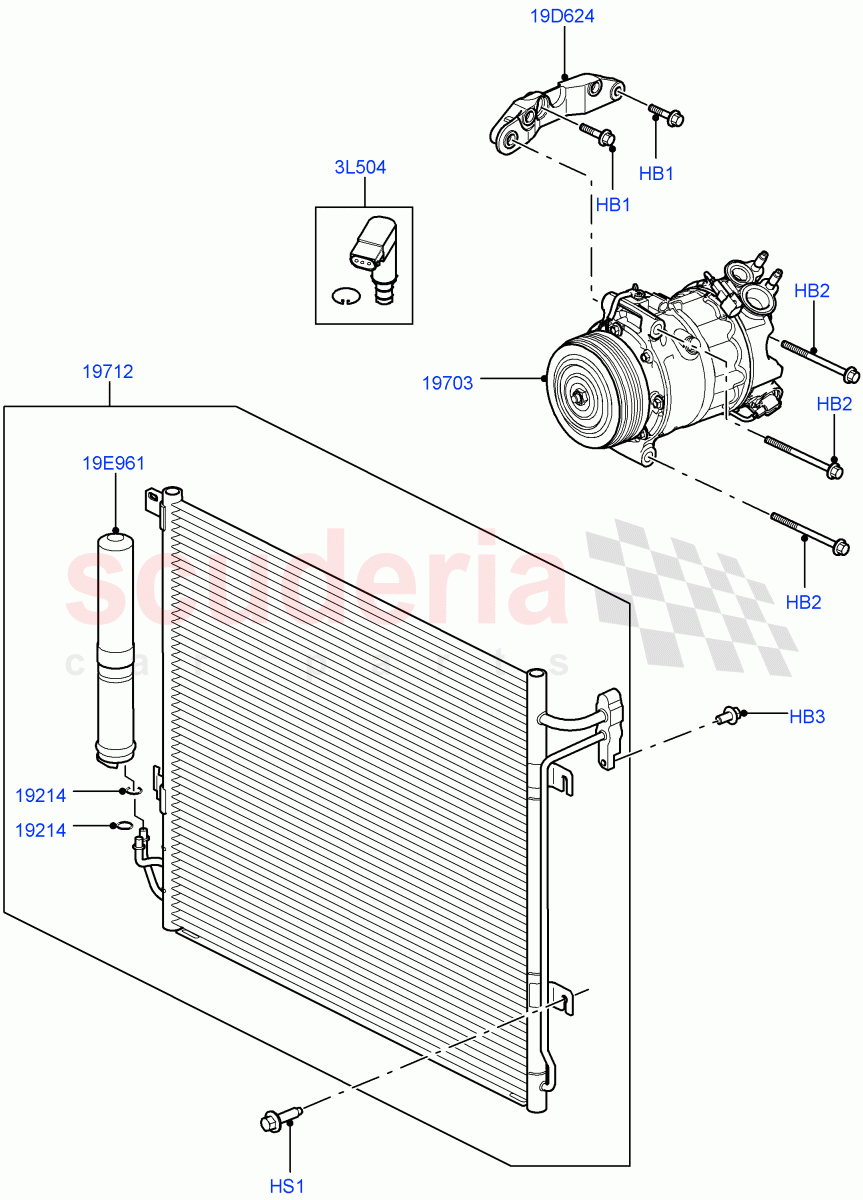

Air Conditioning Condensr/Compressr (3.0 V6 Diesel) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 RYG500290
BOLT - HEX.HEAD
Bracket, Hexagonal Head, M8 x 30MM / From: AA000001
IN STOCK 		$0.50 2
HB2 FB108186M
BOLT
M8 X 90MM / From: AA000001
IN STOCK 		$4.47 3
HB3 LR018706
SCREW
Attaches To Condenser, M6 x 12MM / From: AA000001 / To: BA567133 		$1.00 1
HB3 LR000033
SCREW
Attaches To Condenser, Hexagonal Head, M6 x 12MM / From: BA567134 		$0.50 1
HS1 LR018707
SCREW
6X20, Hexagonal Head / From: AA000001 		$1.00 4
3L504 LR061463
KIT - VALVE REPAIR
Includes A/C Compressor Control Valve And Snap Ring / From: AA000001 / To: DA687776 		$224.86 1
19D624 LR013376
BRACKET - COMPRESSOR
From: AA000001 		$24.83 1
19E961 JRJ500020
DRYER - COMPRESSOR AIR
From: AA000001 		$231.82 1
19214 JUU500110
SEAL
From: AA000001
IN STOCK 		$9.66 2
19703 LR058017
COMPRESSOR - AIR CONDITIONING
From: AA000001 / To: DA687776 		$1,881.35 1
19703 LR056365
COMPRESSOR - AIR CONDITIONING
From: DA687777 / To: DA697715 		$1,113.59 1
19703 LR058017
COMPRESSOR - AIR CONDITIONING
From: DA697716 		$1,881.35 1
19712 LR015556
CONDENSER
With Dryer / From: AA000001 		$299.09 1
