Front Brake Discs And Calipers (With Four Corner Air Suspension) ((V) FROMEA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol]

View All

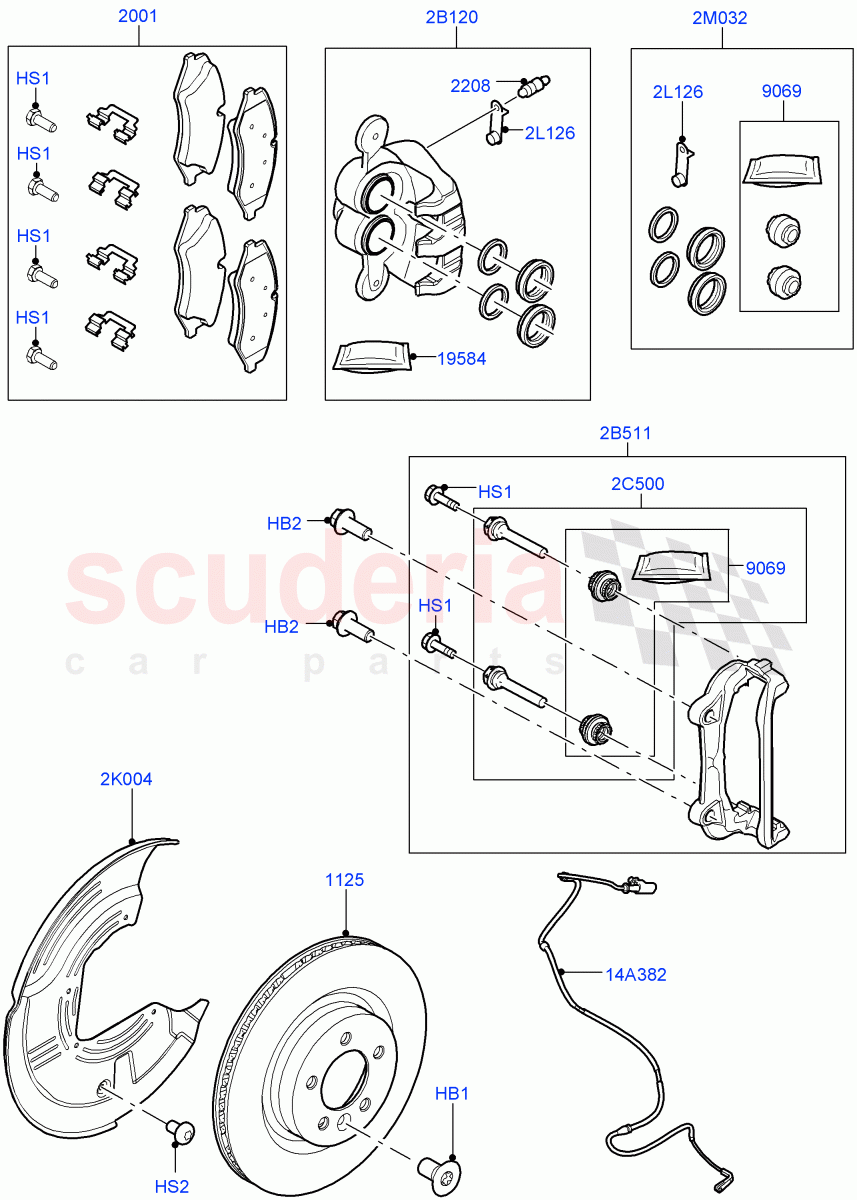

Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol] - Front Brake Discs And Calipers (With Four Corner Air Suspension) ((V) FROMEA000001)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR002080	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SYG500050	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SMV500010	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018509	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SDB000624	DISC - BRAKE - VENTED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR134700	BRAKE PADS - WITH SPRINGS	Enquire	To Order
	LR134700	BRAKE PADS - WITH SPRINGS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015523	SCREW - BLEED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015525	COVER - DUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR020053	GREASE - CHASSIS LUBRICATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR047906	CALIPER - BRAKE - LESS PADS	Enquire	To Order
	LR047905	CALIPER - BRAKE - LESS PADS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR051627	BRACKET - BRAKE CALIPER	Enquire	To Order
	LR051628	BRACKET - BRAKE CALIPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR020489	KIT - LOCATING PIN BOLTS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR056531	SHIELD - SPLASH	Enquire	To Order
	LR056532	SHIELD - SPLASH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SEE500100	CAP - BLEED SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015580	KIT - CALIPER BRAKE PAD MTG PARTS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SEM500070	WIRE - BRAKE PAD WEAR WARNING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR002080	BOLT	LR002080 BOLT Disc - Brake, M10 X 20MM, Torx / From: EA000001	-	2	Enquire
HB2	SYG500050	BOLT	SYG500050 BOLT M16 X 1.5 X 45, To Caliper / From: EA000001	-	4	Enquire
HS1	SMV500010	SCREW	SMV500010 SCREW Pin - Slide / From: EA000001	-	4	Enquire
HS2	LR018509	SCREW	LR018509 SCREW M6 X 10MM, Shield, Torx / From: EA000001	-	1	Enquire
2B120	LR047906	CALIPER - BRAKE - LESS PADS	LR047906 CALIPER - BRAKE - LESS PADS RH / From: EA000001	-	1	Enquire
2B120	LR047905	CALIPER - BRAKE - LESS PADS	LR047905 CALIPER - BRAKE - LESS PADS LH / From: EA000001	-	1	Enquire
2B511	LR051627	BRACKET - BRAKE CALIPER	LR051627 BRACKET - BRAKE CALIPER RH / From: EA000001	-	1	Enquire
2B511	LR051628	BRACKET - BRAKE CALIPER	LR051628 BRACKET - BRAKE CALIPER LH / From: EA000001	-	1	Enquire
2C500	LR020489	KIT - LOCATING PIN BOLTS	LR020489 KIT - LOCATING PIN BOLTS Caliper Set, Pin And Boot / From: EA000001	-	2	Enquire
2K004	LR056531	SHIELD - SPLASH	LR056531 SHIELD - SPLASH RH / From: EA000001	-	1	Enquire
2K004	LR056532	SHIELD - SPLASH	LR056532 SHIELD - SPLASH LH / From: EA000001	-	1	Enquire
2L126	SEE500100	CAP - BLEED SCREW	SEE500100 CAP - BLEED SCREW From: EA000001	-	2	Enquire
2M032	LR015580	KIT - CALIPER BRAKE PAD MTG PARTS	LR015580 KIT - CALIPER BRAKE PAD MTG PARTS Caliper Set, Seal / From: EA000001	-	2	Enquire
14A382	SEM500070	WIRE - BRAKE PAD WEAR WARNING	SEM500070 WIRE - BRAKE PAD WEAR WARNING From: EA000001	-	1	Enquire
1125	SDB000624	DISC - BRAKE - VENTED	SDB000624 DISC - BRAKE - VENTED From: EA000001	-	2	Enquire
2001	LR134700	BRAKE PADS - WITH SPRINGS	LR134700 BRAKE PADS - WITH SPRINGS Axle Set / From: EA000001 / To: EA999999	-	1	Enquire
2001	LR134700	BRAKE PADS - WITH SPRINGS	LR134700 BRAKE PADS - WITH SPRINGS Axle Set / From: FA000001	-	1	Enquire
2208	LR015523	SCREW - BLEED	LR015523 SCREW - BLEED From: EA000001	-	2	Enquire
9069	LR015525	COVER - DUST	LR015525 COVER - DUST Boot, Caliper Set / From: EA000001	-	2	Enquire
19584	LR020053	GREASE - CHASSIS LUBRICATION	LR020053 GREASE - CHASSIS LUBRICATION From: EA000001	-	1	Enquire
