Name: Front Brake Discs And Calipers (With Standard Duty Coil Spring Susp) ((V) FROMDA000001)
Rating: 5.0 (1 reviews)

Front Brake Discs And Calipers (With Standard Duty Coil Spring Susp) ((V) FROMDA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol]

View All

Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol] - Front Brake Discs And Calipers (With Standard Duty Coil Spring Susp) ((V) FROMDA000001)

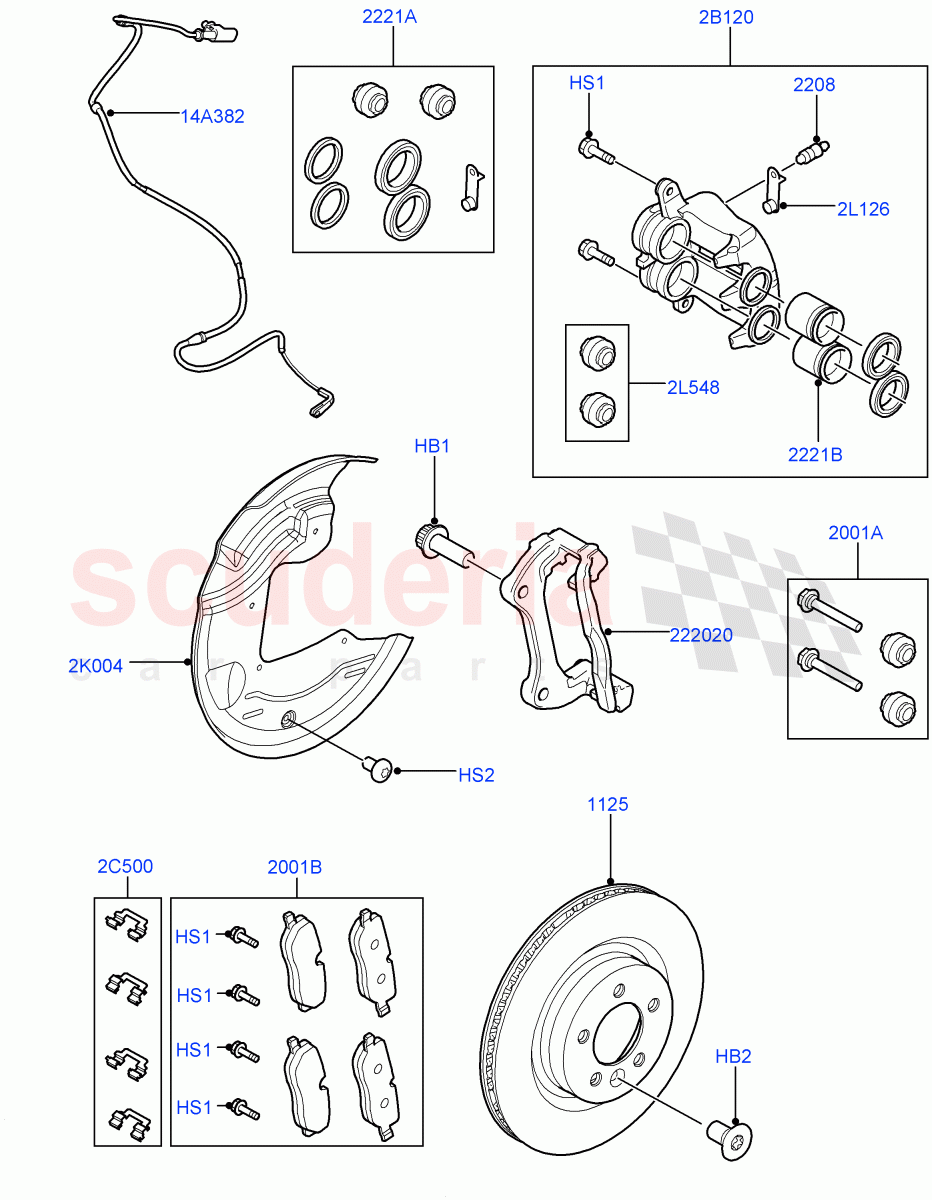

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	SYG500050	BOLT	$8.21	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR002080	BOLT	$3.05	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	SMV500010	SCREW	$2.63	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR018509	SCREW	$1.19	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	SDB000604	DISC - BRAKE - VENTED	$83.66	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR015523	SCREW - BLEED	$6.46	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	SEE500020	KIT - CALIPER BRAKE PAD MTG PARTS	$30.48	To Order

Photo	Part No	Description	Price (each)	Stock
	LR019618	BRAKE PADS - LESS SPRINGS	$79.27	To Order

Photo	Part No	Description	Price (each)	Stock
	SEE500010	KIT - CALIPER REPAIR	$28.92	To Order

Photo	Part No	Description	Price (each)	Stock
	STC1918	PISTON	$37.43	To Order

Photo	Part No	Description	Price (each)	Stock
	SEG500040	CALIPER ASSY - BRAKE - LESS PADS	$452.35	To Order
	SEG500050	CALIPER ASSY - BRAKE - LESS PADS	$461.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR019625	SPRING - BRAKE CALIPER	$7.19	To Order

Photo	Part No	Description	Price (each)	Stock
	SEC000162	SHIELD - SPLASH	$100.76	To Order
	SEC000172	SHIELD - SPLASH	$133.05	To Order

Photo	Part No	Description	Price (each)	Stock
	SEE500100	CAP - BLEED SCREW	$1.86	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	SEE500030	KIT - SLIDE PIN BOOT	$17.64	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	SEM500070	WIRE - BRAKE PAD WEAR WARNING	$33.48	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	SEH500012	CARRIER	$78.60	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	SYG500050	BOLT IN STOCK	SYG500050 BOLT M16 X 1.5 X 45, To Caliper / From: DA000001 IN STOCK	$8.21	4
HB2	LR002080	BOLT IN STOCK	LR002080 BOLT Disc - Brake, M10 X 20MM, Torx / From: DA000001 IN STOCK	$3.05	2
HS1	SMV500010	SCREW IN STOCK	SMV500010 SCREW Pin - Slide / From: DA000001 IN STOCK	$2.63	4
HS2	LR018509	SCREW IN STOCK	LR018509 SCREW M6 X 10MM, Shield, Torx / From: DA000001 IN STOCK	$1.19	10
2B120	SEG500040	CALIPER ASSY - BRAKE - LESS PADS	SEG500040 CALIPER ASSY - BRAKE - LESS PADS RH / From: DA000001	$452.35	1
2B120	SEG500050	CALIPER ASSY - BRAKE - LESS PADS	SEG500050 CALIPER ASSY - BRAKE - LESS PADS LH / From: DA000001	$461.40	1
2C500	LR019625	SPRING - BRAKE CALIPER	LR019625 SPRING - BRAKE CALIPER Axle Set, Includes Clips / From: DA000001	$7.19	1
2K004	SEC000162	SHIELD - SPLASH	SEC000162 SHIELD - SPLASH RH / From: DA000001	$100.76	1
2K004	SEC000172	SHIELD - SPLASH	SEC000172 SHIELD - SPLASH LH / From: DA000001	$133.05	1
2L126	SEE500100	CAP - BLEED SCREW IN STOCK	SEE500100 CAP - BLEED SCREW From: DA000001 IN STOCK	$1.86	2
2L548	SEE500030	KIT - SLIDE PIN BOOT IN STOCK	SEE500030 KIT - SLIDE PIN BOOT Caliper Set, Kit / From: DA000001 IN STOCK	$17.64	2
14A382	SEM500070	WIRE - BRAKE PAD WEAR WARNING IN STOCK	SEM500070 WIRE - BRAKE PAD WEAR WARNING From: DA000001 IN STOCK	$33.48	1
1125	SDB000604	DISC - BRAKE - VENTED IN STOCK	SDB000604 DISC - BRAKE - VENTED From: DA000001 IN STOCK	$83.66	2
2001A	SEE500020	KIT - CALIPER BRAKE PAD MTG PARTS	SEE500020 KIT - CALIPER BRAKE PAD MTG PARTS Caliper Set, Pin And Boot / From: DA000001	$30.48	2
2001B	LR019618	BRAKE PADS - LESS SPRINGS	LR019618 BRAKE PADS - LESS SPRINGS Axle Set, Less Clips / From: DA000001	$79.27	1
2208	LR015523	SCREW - BLEED IN STOCK	LR015523 SCREW - BLEED From: DA000001 IN STOCK	$6.46	2
2221A	SEE500010	KIT - CALIPER REPAIR	SEE500010 KIT - CALIPER REPAIR Boot And Seal, Caliper Set / From: DA000001	$28.92	2
2221B	STC1918	PISTON	STC1918 PISTON Seal - Piston / From: DA000001	$37.43	4
222020	SEH500012	CARRIER	SEH500012 CARRIER Support Bracket / From: DA000001	$78.60	2

Front Brake Discs And Calipers (With Standard Duty Coil Spring Susp) ((V) Fromda000001)

Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol]

Land Rover Discovery 4 (2010-2016) [3.0 DOHC GDI SC V6 Petrol] - Front Brake Discs And Calipers (With Standard Duty Coil Spring Susp) ((V) FROMDA000001)
