Rear Seat Covers (With 65/35 Split Fold Rear Seat) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] - Rear Seat Covers (With 65/35 Split Fold Rear Seat) ((V) FROMAA000001)

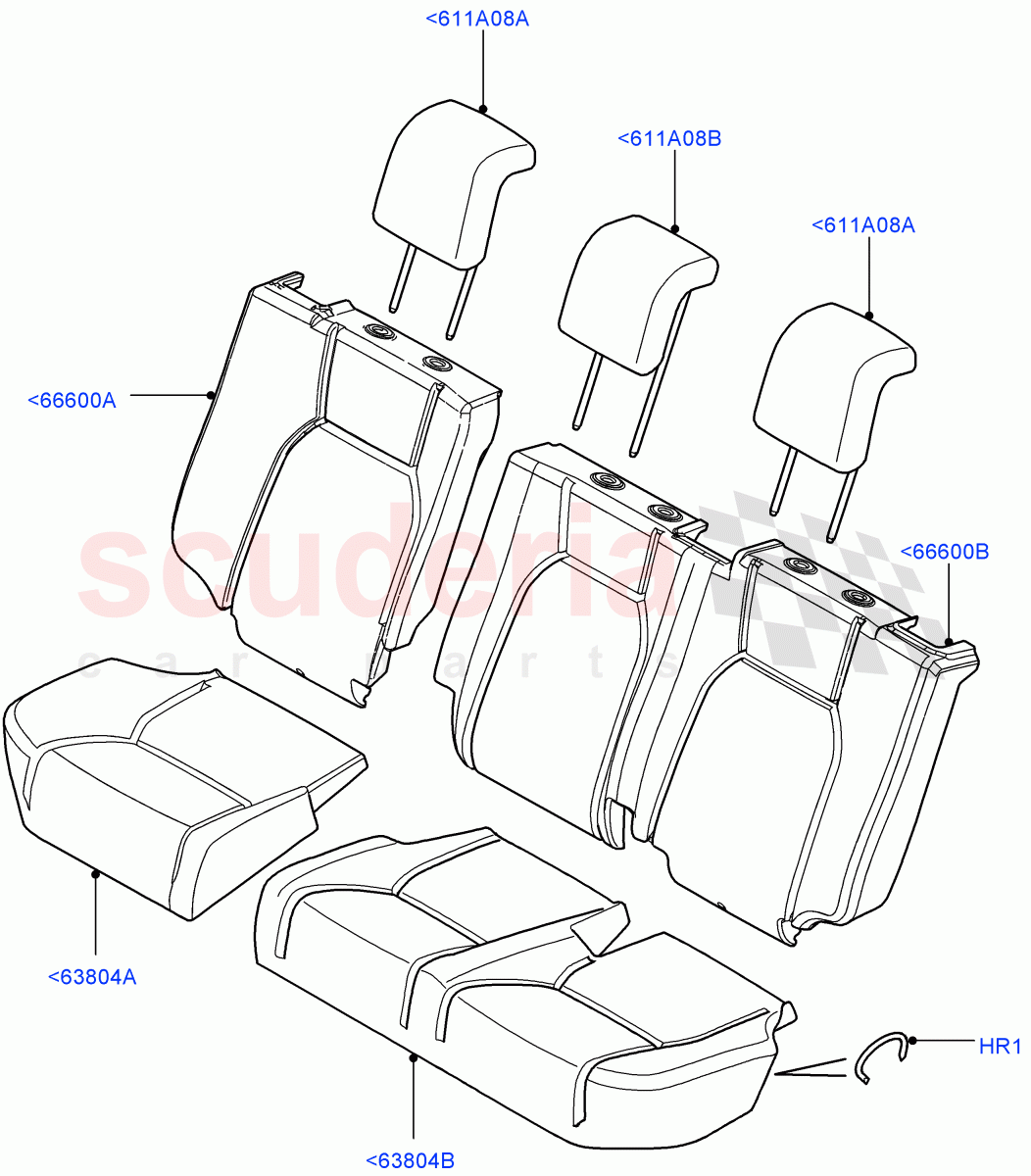

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	HYX100060	RING - RETAINING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013261	COVER - REAR SEAT CUSHION	Enquire	To Order
	LR013262	COVER - REAR SEAT CUSHION	Enquire	To Order
	LR013263	COVER - REAR SEAT CUSHION	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR013281	COVER - REAR SEAT CUSHION	Enquire	To Order
	LR013282	COVER - REAR SEAT CUSHION	Enquire	To Order
	LR013283	COVER - REAR SEAT CUSHION	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR013307	COVER - REAR SEAT BACK	Enquire	To Order
	LR013308	COVER - REAR SEAT BACK	Enquire	To Order
	LR013309	COVER - REAR SEAT BACK	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR013337	COVER - REAR SEAT BACK	Enquire	To Order
	LR013336	COVER - REAR SEAT BACK	Enquire	To Order
	LR013338	COVER - REAR SEAT BACK	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR008397	HEADREST - COVER AND PAD	Enquire	To Order
	LR015504	HEADREST	Enquire	To Order
	LR013251	HEADREST	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR015505	HEADREST	Enquire	To Order
	LR008398	HEADREST - COVER AND PAD	Enquire	To Order
	LR013253	HEADREST	Enquire	To Order

...and 1 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<611A08A	LR008397	HEADREST - COVER AND PAD	LR008397 HEADREST - COVER AND PAD Almond, Leather Seat Fabric / Outer / From: AA000001 / To: AA551483	-	2	Enquire
<611A08A	LR015504	HEADREST	LR015504 HEADREST Ebony Black/Ebony Black Interior, Leather Seat Fabric / Outer / From: AA000001 / To: AA551483	-	2	Enquire
<611A08A	LR013251	HEADREST	LR013251 HEADREST Cloth Seat Fabric, Ebony Black/Ebony Black Interior / Outer / From: AA000001 / To: AA551483	-	2	Enquire
<611A08A	LR013252	HEADREST	LR013252 HEADREST Almond, Cloth Seat Fabric / Outer / From: AA000001 / To: AA551483	-	2	Enquire
<611A08A	LR020284	HEADREST	LR020284 HEADREST Cloth Seat Fabric, Ebony Black/Ebony Black Interior / Outer / From: BA551484	-	2	Enquire
<611A08A	LR020285	HEADREST	LR020285 HEADREST Almond, Cloth Seat Fabric / Outer / From: BA551484	-	2	Enquire
<611A08A	LR020286	HEADREST - COVER AND PAD	LR020286 HEADREST - COVER AND PAD Almond, Leather Seat Fabric / Outer / From: BA551484	-	2	Enquire
<611A08A	LR020287	HEADREST	LR020287 HEADREST Ebony Black/Ebony Black Interior, Leather Seat Fabric / Outer / From: BA551484	-	2	Enquire
<611A08B	LR015505	HEADREST	LR015505 HEADREST Ebony Black/Ebony Black Interior, Leather Seat Fabric / Centre / From: AA000001	-	1	Enquire
<611A08B	LR008398	HEADREST - COVER AND PAD	LR008398 HEADREST - COVER AND PAD Almond, Leather Seat Fabric / Centre / From: AA000001	-	1	Enquire
<611A08B	LR013253	HEADREST	LR013253 HEADREST Cloth Seat Fabric, Ebony Black/Ebony Black Interior / Centre / From: AA000001	-	1	Enquire
<611A08B	LR013254	HEADREST	LR013254 HEADREST Almond, Cloth Seat Fabric / Centre / From: AA000001	-	1	Enquire
<63804A	LR013261	COVER - REAR SEAT CUSHION	LR013261 COVER - REAR SEAT CUSHION Cloth Seat Fabric, Ebony Black/Ebony Black Interior / Small / From: AA000001	-	1	Enquire
<63804A	LR013262	COVER - REAR SEAT CUSHION	LR013262 COVER - REAR SEAT CUSHION Almond, Cloth Seat Fabric / Small / From: AA000001	-	1	Enquire
<63804A	LR013263	COVER - REAR SEAT CUSHION	LR013263 COVER - REAR SEAT CUSHION Almond, Leather Seat Fabric / Small / From: AA000001 / To: BA559277	-	1	Enquire
<63804A	LR013264	COVER - REAR SEAT CUSHION	LR013264 COVER - REAR SEAT CUSHION Ebony Black/Ebony Black Interior, Leather Seat Fabric / Small / From: AA000001 / To: BA559277	-	1	Enquire
<63804A	LR027456	COVER - REAR SEAT CUSHION	LR027456 COVER - REAR SEAT CUSHION Almond, Leather Seat Fabric / Small / From: BA559278	-	1	Enquire
<63804A	LR027457	COVER - REAR SEAT CUSHION	LR027457 COVER - REAR SEAT CUSHION Ebony Black/Ebony Black Interior, Leather Seat Fabric / Small / From: BA559278	-	1	Enquire
<63804B	LR013281	COVER - REAR SEAT CUSHION	LR013281 COVER - REAR SEAT CUSHION Cloth Seat Fabric, Ebony Black/Ebony Black Interior / Large / From: AA000001	-	1	Enquire
<63804B	LR013282	COVER - REAR SEAT CUSHION	LR013282 COVER - REAR SEAT CUSHION Almond, Cloth Seat Fabric / Large / From: AA000001	-	1	Enquire
<63804B	LR013283	COVER - REAR SEAT CUSHION	LR013283 COVER - REAR SEAT CUSHION Almond, Leather Seat Fabric / Large / From: AA000001 / To: BA559277	-	1	Enquire
<63804B	LR013284	COVER - REAR SEAT CUSHION	LR013284 COVER - REAR SEAT CUSHION Ebony Black/Ebony Black Interior, Leather Seat Fabric / Large / From: AA000001 / To: BA559277	-	1	Enquire
<63804B	LR027460	COVER - REAR SEAT CUSHION	LR027460 COVER - REAR SEAT CUSHION Almond, Leather Seat Fabric / Large / From: BA559278	-	1	Enquire
<63804B	LR027461	COVER - REAR SEAT CUSHION	LR027461 COVER - REAR SEAT CUSHION Ebony Black/Ebony Black Interior, Leather Seat Fabric / Large / From: BA559278	-	1	Enquire
<66600A	LR013307	COVER - REAR SEAT BACK	LR013307 COVER - REAR SEAT BACK Cloth Seat Fabric, Ebony Black/Ebony Black Interior / Small / From: AA000001	-	1	Enquire
<66600A	LR013308	COVER - REAR SEAT BACK	LR013308 COVER - REAR SEAT BACK Almond, Cloth Seat Fabric / Small / From: AA000001	-	1	Enquire
<66600A	LR013309	COVER - REAR SEAT BACK	LR013309 COVER - REAR SEAT BACK Almond, Leather Seat Fabric / Small / From: AA000001 / To: BA559277	-	1	Enquire
<66600A	LR013310	COVER - REAR SEAT BACK	LR013310 COVER - REAR SEAT BACK Ebony Black/Ebony Black Interior, Leather Seat Fabric / Small / From: AA000001 / To: BA559277	-	1	Enquire
<66600A	LR027468	COVER - REAR SEAT BACK	LR027468 COVER - REAR SEAT BACK Almond, Leather Seat Fabric / Small / From: BA559278 / To: DA678754	-	1	Enquire
<66600A	LR027469	COVER - REAR SEAT BACK	LR027469 COVER - REAR SEAT BACK Ebony Black/Ebony Black Interior, Leather Seat Fabric / Small / From: BA559278 / To: DA678754	-	1	Enquire
<66600A	LR055131	COVER - REAR SEAT BACK	LR055131 COVER - REAR SEAT BACK Almond, Leather Seat Fabric / Small / From: DA678755	-	1	Enquire
<66600A	LR055132	COVER - REAR SEAT BACK	LR055132 COVER - REAR SEAT BACK Ebony Black/Ebony Black Interior, Leather Seat Fabric / Small / From: DA678755	-	1	Enquire
<66600B	LR013337	COVER - REAR SEAT BACK	LR013337 COVER - REAR SEAT BACK Cloth Seat Fabric, Ebony Black/Ebony Black Interior / Large / From: AA000001	-	1	Enquire
<66600B	LR013336	COVER - REAR SEAT BACK	LR013336 COVER - REAR SEAT BACK Almond, Cloth Seat Fabric / Large / From: AA000001	-	1	Enquire
<66600B	LR013338	COVER - REAR SEAT BACK	LR013338 COVER - REAR SEAT BACK Almond, Leather Seat Fabric / Large / From: AA000001 / To: BA559277	-	1	Enquire
<66600B	LR013339	COVER - REAR SEAT BACK	LR013339 COVER - REAR SEAT BACK Ebony Black/Ebony Black Interior, Leather Seat Fabric / Large / From: AA000001 / To: BA559277	-	1	Enquire
<66600B	LR027474	COVER - REAR SEAT BACK	LR027474 COVER - REAR SEAT BACK Almond, Leather Seat Fabric / Large / From: BA559278 / To: DA678754	-	1	Enquire
<66600B	LR027475	COVER - REAR SEAT BACK	LR027475 COVER - REAR SEAT BACK Ebony Black/Ebony Black Interior, Leather Seat Fabric / Large / From: BA559278 / To: DA678754	-	1	Enquire
<66600B	LR055133	COVER - REAR SEAT BACK	LR055133 COVER - REAR SEAT BACK Almond, Leather Seat Fabric / Large / From: DA678755	-	1	Enquire
<66600B	LR055134	COVER - REAR SEAT BACK	LR055134 COVER - REAR SEAT BACK Ebony Black/Ebony Black Interior, Leather Seat Fabric / Large / From: DA678755	-	1	Enquire
HR1	HYX100060	RING - RETAINING	HYX100060 RING - RETAINING Seats / From: AA000001	-	-	Enquire
