Front Seat Pads/Valances & Heating ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] - Front Seat Pads/Valances & Heating ((V) FROMAA000001)

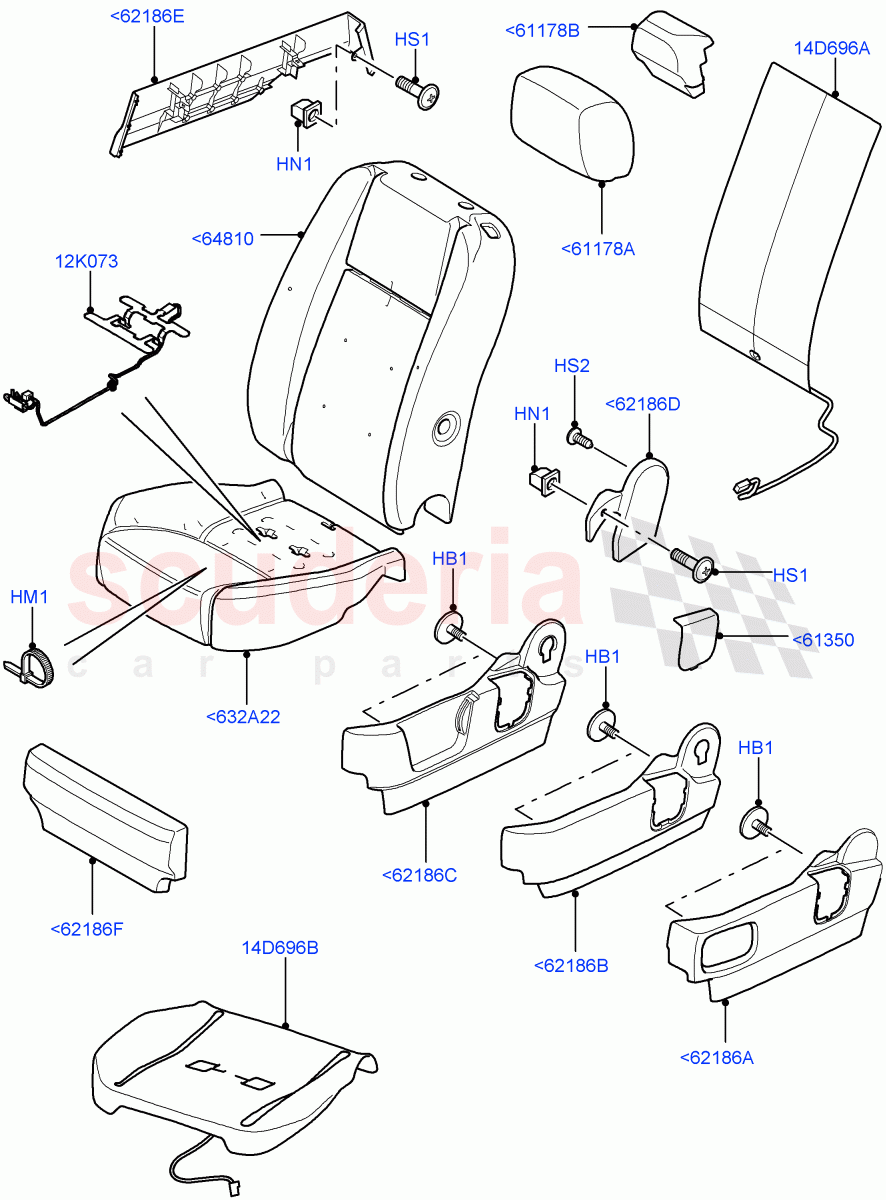

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	HYG500110	BOLT - SHOULDERED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR039437	CABLE TIE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HYH000110	NUT - LOCKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DA608044L	SCREW - SELF-TAPPING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HYG500070	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007905	COVER - SEAT VALANCE	Enquire	To Order
	FCL500062PVJ	COVER - SEAT VALANCE	Enquire	To Order
	FCL500072PVJ	COVER - SEAT VALANCE	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR013552	PAD - SEAT BACK	Enquire	To Order
	LR013553	PAD - SEAT BACK	Enquire	To Order
	LR013554	PAD - SEAT BACK	Enquire	To Order

...and 6 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR017309	SENSOR - BODY WEIGHT - AIRBAG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HGH500020	PAD - HEADREST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HGH500030	PAD - HEADREST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013200	VALANCE - SEAT CUSHION	Enquire	To Order
	LR013201	VALANCE - SEAT CUSHION	Enquire	To Order
	LR013203	VALANCE - SEAT CUSHION	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	HJH500042PVJ	VALANCE - SEAT SIDE	Enquire	To Order
	LR008281	VALANCE - SEAT SIDE	Enquire	To Order
	HJH500052PVJ	VALANCE - SEAT SIDE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	HJH500022PVJ	VALANCE - SEAT SIDE	Enquire	To Order
	LR008279	VALANCE - SEAT SIDE	Enquire	To Order
	HJH500032PVJ	VALANCE - SEAT SIDE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	HJE500100PVJ	VALANCE - SEAT SIDE	Enquire	To Order
	LR007934	VALANCE - SEAT CUSHION	Enquire	To Order
	LR007946	VALANCE - SEAT CUSHION	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	EBV500022PVJ	VALANCE - SEAT CUSHION	Enquire	To Order
	EBV500032PVJ	VALANCE - SEAT CUSHION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015515	VALANCE - SEAT CUSHION	Enquire	To Order
	LR016892	VALANCE - SEAT SIDE	Enquire	To Order
	LR019751	VALANCE - SEAT CUSHION	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR013221	PAD - SEAT CUSHION	Enquire	To Order
	LR013221	PAD - SEAT CUSHION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013782	ELEMENT - FRONT SEAT BACK HEATING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013728	ELEMENT - FRONT SEAT CUSHION HEATING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<632A22	LR013221	PAD - SEAT CUSHION	LR013221 PAD - SEAT CUSHION (-)"CDN/MEX/USA" / From: AA000001	-	2	Enquire
<632A22	LR013221	PAD - SEAT CUSHION	LR013221 PAD - SEAT CUSHION (+)"CDN/MEX/USA" / Driver Frt Seat / From: AA000001	-	1	Enquire
<61178A	HGH500020	PAD - HEADREST	HGH500020 PAD - HEADREST With Provision For DVD Screen / From: AA000001	-	2	Enquire
<61178B	HGH500030	PAD - HEADREST	HGH500030 PAD - HEADREST With Provision For DVD Screen / Insert / From: AA000001	-	2	Enquire
<61350	LR007905	COVER - SEAT VALANCE	LR007905 COVER - SEAT VALANCE Almond / RH, Access Hole Cover, Valance / From: AA000001	-	1	Enquire
<61350	FCL500062PVJ	COVER - SEAT VALANCE	FCL500062PVJ COVER - SEAT VALANCE Ebony Black/Ebony Black Interior / RH, Access Hole Cover, Valance / From: AA000001	-	1	Enquire
<61350	FCL500072PVJ	COVER - SEAT VALANCE	FCL500072PVJ COVER - SEAT VALANCE Ebony Black/Ebony Black Interior / LH, Access Hole Cover, Valance / From: AA000001	-	1	Enquire
<61350	LR007906	COVER - SEAT VALANCE	LR007906 COVER - SEAT VALANCE Almond / LH, Access Hole Cover, Valance / From: AA000001	-	1	Enquire
<61350	FCL500062NUG	COVER - SEAT VALANCE	FCL500062NUG COVER - SEAT VALANCE Ivory / RH, Access Hole Cover, Valance / From: BA000001	-	1	Enquire
<61350	FCL500072NUG	COVER - ACCESS HOLE	FCL500072NUG COVER - ACCESS HOLE Ivory / LH, Access Hole Cover, Valance / From: BA000001	-	1	Enquire
<61350	LR016498	COVER - SEAT VALANCE	LR016498 COVER - SEAT VALANCE Arabica, Luxury Limited Edition / RH, Access Hole Cover, Valance / From: CA000001	-	1	Enquire
<61350	LR016501	COVER - ACCESS HOLE	LR016501 COVER - ACCESS HOLE Arabica, Luxury Limited Edition / LH, Access Hole Cover, Valance / From: CA000001	-	1	Enquire
<62186A	LR013200	VALANCE - SEAT CUSHION	LR013200 VALANCE - SEAT CUSHION Ebony/Cirrus, Electric Front Seat Adj Drv Memory / RH, Outer / From: AA000001	-	1	Enquire
<62186A	LR013201	VALANCE - SEAT CUSHION	LR013201 VALANCE - SEAT CUSHION Almond, Electric Front Seat Adj Drv Memory / RH, Outer / From: AA000001	-	1	Enquire
<62186A	LR013203	VALANCE - SEAT CUSHION	LR013203 VALANCE - SEAT CUSHION Ebony/Cirrus, Electric Front Seat Adj Drv Memory / LH, Outer / From: AA000001	-	1	Enquire
<62186A	LR013204	VALANCE - SEAT CUSHION	LR013204 VALANCE - SEAT CUSHION Almond, Electric Front Seat Adj Drv Memory / LH, Outer / From: AA000001	-	1	Enquire
<62186A	LR015068	VALANCE - SEAT CUSHION	LR015068 VALANCE - SEAT CUSHION Electric Front Seat Adj Non-Memory, Ivory / RH, Outer / From: BA000001	-	1	Enquire
<62186A	LR015072	VALANCE - SEAT CUSHION	LR015072 VALANCE - SEAT CUSHION Electric Front Seat Adj Non-Memory, Ivory / LH, Outer / From: BA000001	-	1	Enquire
<62186A	LR015065	VALANCE - SEAT CUSHION	LR015065 VALANCE - SEAT CUSHION Arabica, Electric Front Seat Adj Non-Memory, Luxury Limited Edition / RH, Outer / From: CA000001	-	1	Enquire
<62186A	LR015069	VALANCE - SEAT CUSHION	LR015069 VALANCE - SEAT CUSHION Arabica, Electric Front Seat Adj Non-Memory, Luxury Limited Edition / LH, Outer / From: CA000001	-	1	Enquire
<62186B	HJH500042PVJ	VALANCE - SEAT SIDE	HJH500042PVJ VALANCE - SEAT SIDE Ebony Black/Ebony Black Interior, LHD, Manual Front Seat Adj Driver & Pass / RH, Outer / From: AA000001	-	1	Enquire
<62186B	LR008281	VALANCE - SEAT SIDE	LR008281 VALANCE - SEAT SIDE Almond, LHD, Manual Front Seat Adj Driver & Pass / RH, Outer / From: AA000001	-	1	Enquire
<62186B	HJH500052PVJ	VALANCE - SEAT SIDE	HJH500052PVJ VALANCE - SEAT SIDE Ebony Black/Ebony Black Interior, Manual Front Seat Adj Driver & Pass, RHD / LH, Outer / From: AA000001	-	1	Enquire
<62186B	LR008282	VALANCE - SEAT SIDE	LR008282 VALANCE - SEAT SIDE Almond, Manual Front Seat Adj Driver & Pass, RHD / LH, Outer / From: AA000001	-	1	Enquire
<62186C	HJH500022PVJ	VALANCE - SEAT SIDE	HJH500022PVJ VALANCE - SEAT SIDE Ebony Black/Ebony Black Interior, Manual Front Seat Adj Driver & Pass, RHD / RH, Outer / From: AA000001	-	1	Enquire
<62186C	LR008279	VALANCE - SEAT SIDE	LR008279 VALANCE - SEAT SIDE Almond, Manual Front Seat Adj Driver & Pass, RHD / RH, Outer / From: AA000001	-	1	Enquire
<62186C	HJH500032PVJ	VALANCE - SEAT SIDE	HJH500032PVJ VALANCE - SEAT SIDE Ebony Black/Ebony Black Interior, LHD, Manual Front Seat Adj Driver & Pass / LH, Outer / From: AA000001	-	1	Enquire
<62186C	LR008280	VALANCE - SEAT SIDE	LR008280 VALANCE - SEAT SIDE Almond, LHD, Manual Front Seat Adj Driver & Pass / LH, Outer / From: AA000001	-	1	Enquire
<62186D	HJE500100PVJ	VALANCE - SEAT SIDE	HJE500100PVJ VALANCE - SEAT SIDE Ebony Black/Ebony Black Interior / RH, Inner / From: AA000001	-	1	Enquire
<62186D	LR007934	VALANCE - SEAT CUSHION	LR007934 VALANCE - SEAT CUSHION Almond / RH / From: AA000001	-	1	Enquire
<62186D	LR007946	VALANCE - SEAT CUSHION	LR007946 VALANCE - SEAT CUSHION Almond / LH / From: AA000001	-	1	Enquire
<62186D	LR009224	VALANCE - SEAT CUSHION	LR009224 VALANCE - SEAT CUSHION Ebony Black/Ebony Black Interior / LH, Inner / From: AA000001	-	1	Enquire
<62186D	HJE500100NUG	VALANCE - SEAT SIDE	HJE500100NUG VALANCE - SEAT SIDE Ivory / RH, Inner / From: BA000001	-	1	Enquire
<62186D	HJE500110NUG	VALANCE - SEAT SIDE	HJE500110NUG VALANCE - SEAT SIDE Ivory / LH, Inner / From: BA000001	-	1	Enquire
<62186D	LR016540	VALANCE - SEAT CUSHION	LR016540 VALANCE - SEAT CUSHION Arabica, Luxury Limited Edition / RH, Inner / From: CA000001	-	1	Enquire
<62186D	LR016542	VALANCE - SEAT CUSHION	LR016542 VALANCE - SEAT CUSHION Arabica, Luxury Limited Edition / LH, Inner / From: CA000001	-	1	Enquire
<62186E	EBV500022PVJ	VALANCE - SEAT CUSHION	EBV500022PVJ VALANCE - SEAT CUSHION RH Seat Outboard / From: AA000001	-	1	Enquire
<62186E	EBV500032PVJ	VALANCE - SEAT CUSHION	EBV500032PVJ VALANCE - SEAT CUSHION LH Seat Outboard / From: AA000001	-	1	Enquire
<62186F	LR015515	VALANCE - SEAT CUSHION	LR015515 VALANCE - SEAT CUSHION Ebony Black/Ebony Black Interior, Electric Front Seat Adj Non-Memory / From: AA000001 / To: AA515215	-	2	Enquire
<62186F	LR016892	VALANCE - SEAT SIDE	LR016892 VALANCE - SEAT SIDE Almond, Electric Front Seat Adj Drv Memory / From: AA000001 / To: AA515215	-	2	Enquire
<62186F	LR019751	VALANCE - SEAT CUSHION	LR019751 VALANCE - SEAT CUSHION Electric Front Seat Adj Drv Memory, Tan / From: AA515216	-	2	Enquire
<62186F	LR019753	VALANCE - SEAT SIDE	LR019753 VALANCE - SEAT SIDE Almond, Electric Front Seat Adj Non-Memory / From: AA515216	-	2	Enquire
<62186F	LR019750	VALANCE - SEAT SIDE	LR019750 VALANCE - SEAT SIDE Electric Front Seat Adj Non-Memory, Ivory / From: BA000001	-	2	Enquire
<62186F	LR019752	VALANCE - SEAT SIDE	LR019752 VALANCE - SEAT SIDE Arabica, Electric Front Seat Adj Non-Memory, Luxury Limited Edition / From: CA000001	-	2	Enquire
<64810	LR013552	PAD - SEAT BACK	LR013552 PAD - SEAT BACK (-)"CDN/MEX/USA", Less Drvs Articulated Seat Bolster / RH / From: AA000001	-	1	Enquire
<64810	LR013553	PAD - SEAT BACK	LR013553 PAD - SEAT BACK (+)"CDN/MEX/USA" / RH / From: AA000001 / To: EA999999	-	1	Enquire
<64810	LR013554	PAD - SEAT BACK	LR013554 PAD - SEAT BACK Articulated Drivers Seat Bolster, RHD / RH / From: AA000001	-	1	Enquire
<64810	LR013555	PAD - FRONT SEAT HEATING	LR013555 PAD - FRONT SEAT HEATING (-)"CDN/MEX/USA", Less Drvs Articulated Seat Bolster / LH / From: AA000001	-	1	Enquire
<64810	LR013556	PAD - SEAT BACK	LR013556 PAD - SEAT BACK (+)"CDN/MEX/USA", Less Drvs Articulated Seat Bolster / LH / From: AA000001 / To: EA999999	-	1	Enquire
<64810	LR013557	PAD - SEAT BACK	LR013557 PAD - SEAT BACK (-)"CDN/MEX/USA", Articulated Drivers Seat Bolster, LHD / LH / From: AA000001	-	1	Enquire
<64810	LR013558	PAD - SEAT BACK	LR013558 PAD - SEAT BACK (+)"CDN/MEX/USA", Articulated Drivers Seat Bolster / LH / From: AA000001 / To: EA999999	-	1	Enquire
<64810	LR061775	PAD - SEAT BACK	LR061775 PAD - SEAT BACK (+)"CDN/MEX/USA" / RH / From: FA000001	-	1	Enquire
<64810	LR061776	PAD	LR061776 PAD (+)"CDN/MEX/USA" / LH / From: FA000001	-	1	Enquire
HB1	HYG500110	BOLT - SHOULDERED	HYG500110 BOLT - SHOULDERED M4 x 10MM / From: AA000001	-	4	Enquire
HM1	LR039437	CABLE TIE	LR039437 CABLE TIE Cable Tie, RH Seat / From: DA663998	-	1	Enquire
HN1	HYH000110	NUT - LOCKING	HYH000110 NUT - LOCKING Attaches Valance / From: AA000001	-	2	Enquire
HS1	DA608044L	SCREW - SELF-TAPPING	DA608044L SCREW - SELF-TAPPING Size 8 - Self Tapping / From: AA000001	-	4	Enquire
HS2	HYG500070	SCREW	HYG500070 SCREW M4 x 10MM / From: AA000001	-	2	Enquire
12K073	LR017309	SENSOR - BODY WEIGHT - AIRBAG	LR017309 SENSOR - BODY WEIGHT - AIRBAG (-)"CDN/MEX/USA" / From: AA000001	-	1	Enquire
14D696A	LR013782	ELEMENT - FRONT SEAT BACK HEATING	LR013782 ELEMENT - FRONT SEAT BACK HEATING With Heated Seats - Front/Rear / From: AA000001	-	2	Enquire
14D696B	LR013728	ELEMENT - FRONT SEAT CUSHION HEATING	LR013728 ELEMENT - FRONT SEAT CUSHION HEATING With Heated Seats - Front/Rear / From: AA000001	-	2	Enquire
