Battery Cables And Horn (Lhd) ((V) Fromea000001)

Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] - Battery Cables And Horn (LHD) ((V) FROMEA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR006001 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR052363 NUT Enquire To Order
Photo Part No Description Price (each) Stock
FN108042 NUT Enquire To Order
Photo Part No Description Price (each) Stock
LR024287 CABLE - ENGINE TO EARTH Enquire To Order
Photo Part No Description Price (each) Stock
LR048786 POWER SUPPLY DISTRIBUTION BOX Enquire To Order
LR067367 POWER SUPPLY DISTRIBUTION BOX Enquire To Order
Photo Part No Description Price (each) Stock
LR057241 CABLE - BMS Enquire To Order
Photo Part No Description Price (each) Stock
LR038721 BATTERY MANAGEMENT SYSTEM Enquire To Order
Photo Part No Description Price (each) Stock
LR057999 CABLE - BATTERY POSITIVE Enquire To Order
Photo Part No Description Price (each) Stock
LR051757 HORN Enquire To Order
LR014560 HORN Enquire To Order
LR056648 HORN Enquire To Order
Photo Part No Description Price (each) Stock
LR052416 CABLE - BATTERY TO STARTER MOTOR Enquire To Order
LR052414 CABLE - BATTERY TO STARTER MOTOR Enquire To Order
LR052763 CABLE - BATTERY POSITIVE Enquire To Order
...and 7 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR052764 CABLE - BATTERY TO STARTER MOTOR Enquire To Order
Photo Part No Description Price (each) Stock
LR052405 CABLE - BATTERY NEGATIVE Enquire To Order
Photo Part No Description Price (each) Stock
LR052410 CABLE - BATTERY NEGATIVE Enquire To Order
Photo Part No Description Price (each) Stock
LR056111 CLAMP - BATTERY Enquire To Order
Photo Part No Description Price (each) Stock
LR048824 PLUG - BLANKING Enquire To Order
Photo Part No Description Price (each) Stock
LR048567 COVER - PWR SUPPLY DISTRIBUTION BOX Enquire To Order
View All

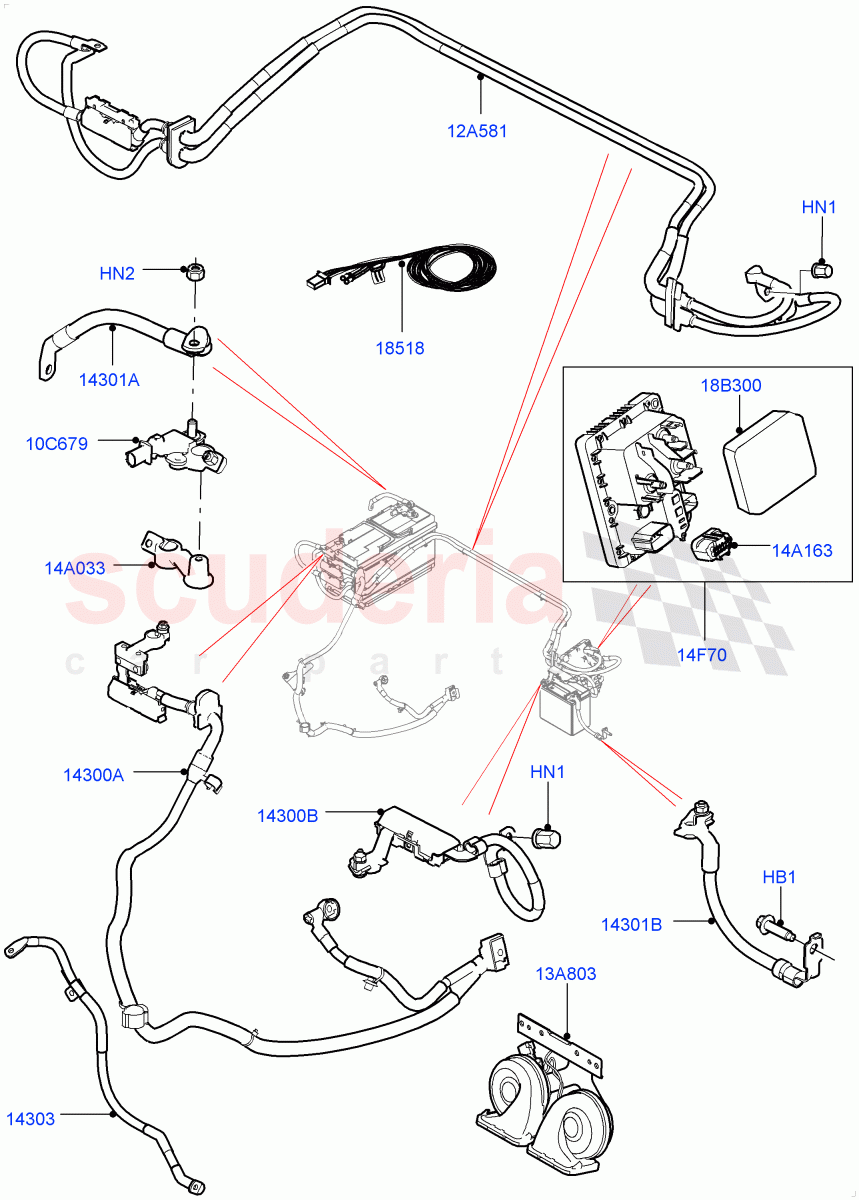

Battery Cables And Horn (LHD) ((V) FROMEA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR006001
BOLT
Starter - Stop/Start System / M8 X 30 / From: EA000001 		- 1 Enquire
HN1 LR052363
NUT
Starter - Stop/Start System / M8, Positive Battery Cable / From: EA000001 		- 3 Enquire
HN2 FN108042
NUT
M8 / From: EA000001 		- 1 Enquire
10C679 LR038721
BATTERY MANAGEMENT SYSTEM
From: EA000001 		- 1 Enquire
12A581 LR057999
CABLE - BATTERY POSITIVE
Power Supply Distribution Box / From: EA000001 		- 1 Enquire
13A803 LR051757
HORN
Dual Note Electric Horn - Level 2 / From: EA000001 / To: EA701176 		- 1 Enquire
13A803 LR014560
HORN
Dual Note Electric Horn / From: EA000001 		- 1 Enquire
13A803 LR056648
HORN
Dual Note Electric Horn - Level 2 / From: EA701177 		- 1 Enquire
14A033 LR056111
CLAMP - BATTERY
LHD / From: EA000001 		- 1 Enquire
14A163 LR048824
PLUG - BLANKING
Starter - Stop/Start System / From: EA000001 		- 1 Enquire
14F70 LR048786
POWER SUPPLY DISTRIBUTION BOX
Starter - Stop/Start System / From: EA000001 / To: EA699715 		- 1 Enquire
14F70 LR067367
POWER SUPPLY DISTRIBUTION BOX
Starter - Stop/Start System / From: EA699716 		- 1 Enquire
18B300 LR048567
COVER - PWR SUPPLY DISTRIBUTION BOX
Starter - Stop/Start System / Power Supply Distribution Box / From: EA000001 		- 1 Enquire
14300A LR052416
CABLE - BATTERY TO STARTER MOTOR
3.0 V6 Diesel, Starter - Stop/Start System / From: EA000001 / To: FA764599 		- 1 Enquire
14300A LR052414
CABLE - BATTERY TO STARTER MOTOR
3.0L DOHC GDI SC V6 PETROL, Starter - Stop/Start System / From: EA000001 / To: FA764599 		- 1 Enquire
14300A LR052763
CABLE - BATTERY POSITIVE
3.0 V6 Diesel, Standard Electric Starter Motor / From: EA000001 / To: FA764599 		- 1 Enquire
14300A LR052412
CABLE - BATTERY TO STARTER MOTOR
3.0L DOHC GDI SC V6 PETROL, Standard Electric Starter Motor / From: EA000001 / To: FA764599 		- 1 Enquire
14300A LR070089
CABLE - BATTERY POSITIVE
3.0 V6 D Gen2 Twin Turbo, Standard Electric Starter Motor / From: GA000001 		- 1 Enquire
14300A LR070091
CABLE - BATTERY POSITIVE
3.0 V6 D Gen2 Twin Turbo, Starter - Stop/Start System / From: GA000001 		- 1 Enquire
14300A LR078396
CABLE - BATTERY TO STARTER MOTOR
3.0L DOHC GDI SC V6 PETROL, Standard Electric Starter Motor / From: FA764600 		- 1 Enquire
14300A LR071680
CABLE - BATTERY POSITIVE
3.0 V6 D Gen2 Twin Turbo, Standard Electric Starter Motor / From: FA764600 		- 1 Enquire
14300A LR078395
CABLE - BATTERY TO STARTER MOTOR
3.0L DOHC GDI SC V6 PETROL, Starter - Stop/Start System / From: FA764600 		- 1 Enquire
14300A LR071683
CABLE - BATTERY TO STARTER MOTOR
3.0L 24V DOHC V6 TC Diesel, Starter - Stop/Start System / From: FA764600 		- 1 Enquire
14300B LR052764
CABLE - BATTERY TO STARTER MOTOR
Starter - Stop/Start System / Power Supply Distribution Box / From: EA000001 		- 1 Enquire
14301A LR052405
CABLE - BATTERY NEGATIVE
From: EA000001 		- 1 Enquire
14301B LR052410
CABLE - BATTERY NEGATIVE
Starter - Stop/Start System / From: EA000001 		- 1 Enquire
14303 LR024287
CABLE - ENGINE TO EARTH
Ground Wire From Engine To Chassis Member, Negative / From: EA000001 		- 1 Enquire
18518 LR057241
CABLE - BMS
Battery Management System, Service Repair Links / From: EA000001 		- 1 Enquire
