Aerial (Roof) ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] - Aerial (Roof) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYH500420 NUT AND WASHER - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
XUK500080 PLUG - BLANKING Enquire To Order
LR030842 PLUG - BLANKING Enquire To Order
Photo Part No Description Price (each) Stock
XUK500021 PLUG Enquire To Order
LR030841 PLUG - AERIAL CABLE HOLE Enquire To Order
Photo Part No Description Price (each) Stock
XUI500010 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
XYP500240 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
AKR780130 BRACKET - AERIAL Enquire To Order
Photo Part No Description Price (each) Stock
LR084457 RING - RETAINING Enquire To Order
LR096456 RING - RETAINING Enquire To Order
Photo Part No Description Price (each) Stock
LR016364 AERIAL Enquire To Order
Photo Part No Description Price (each) Stock
EFT500041 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
XUO000060 AMPLIFIER Enquire To Order
Photo Part No Description Price (each) Stock
XUI500330 AERIAL - GPS Enquire To Order
LR031943 AERIAL - GPS Enquire To Order
LR014110 AERIAL Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
XUI500350 AERIAL - ROOF MOUNTED Enquire To Order
XUI500360 AERIAL - ROOF MOUNTED Enquire To Order
LR031942 AERIAL - ROOF MOUNTED Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
XUC000262 ISOLATOR - RADIO ANTENNA Enquire To Order
Photo Part No Description Price (each) Stock
XUC000080 ISOLATOR Enquire To Order
Photo Part No Description Price (each) Stock
LR001689 AMPLIFIER - RADIO ANTENNA Enquire To Order
LR024157 AMPLIFIER - TV Enquire To Order
LR024158 AMPLIFIER - TV Enquire To Order
...and 5 more part variants. See table on right for more details.
View All

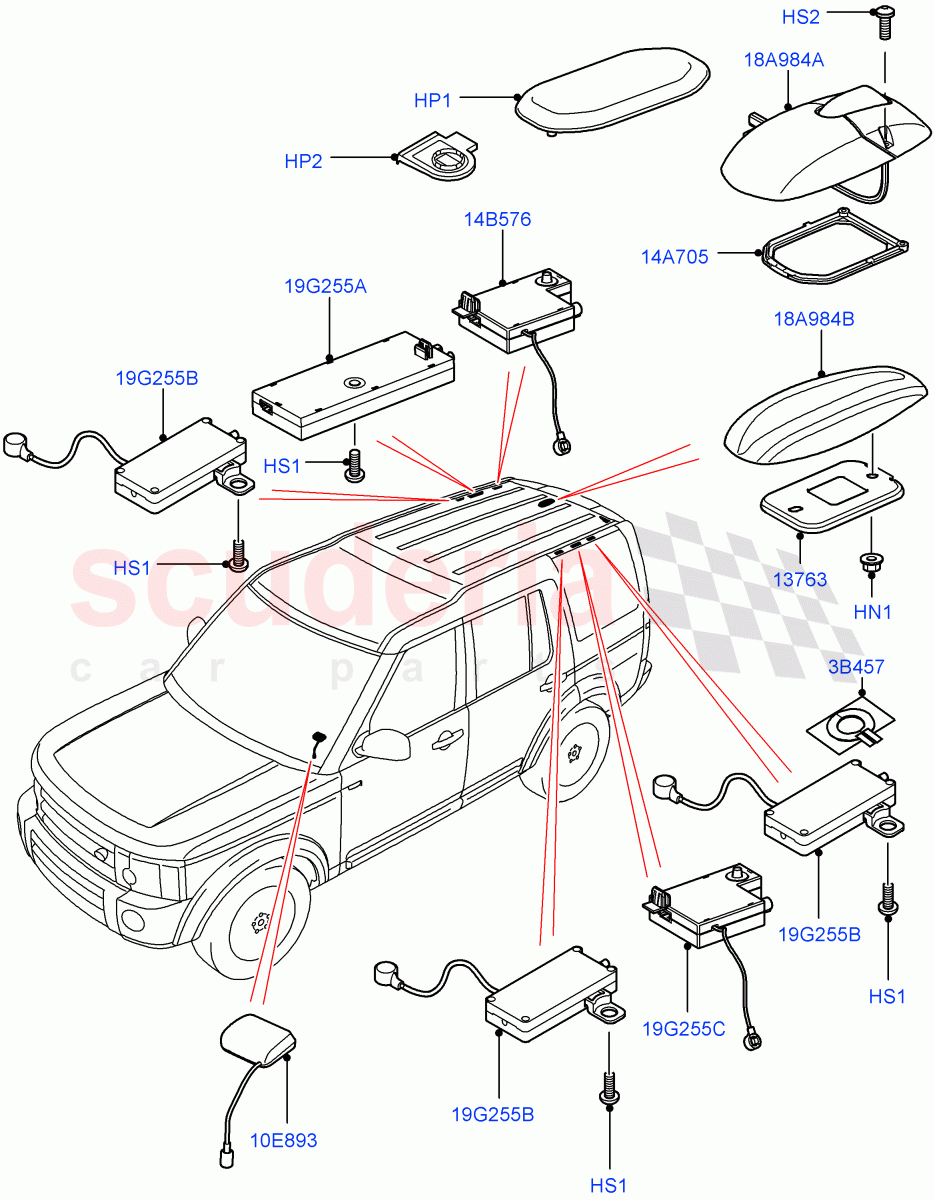

Aerial (Roof) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 RYH500420
NUT AND WASHER - HEX.
M6 / From: AA000001 		- 1 Enquire
HP1 XUK500080
PLUG - BLANKING
Less Sun Roof / Aerial, For Metal Roof Panel / From: AA000001 / To: BA568562 		- 1 Enquire
HP1 LR030842
PLUG - BLANKING
Analogue Audio Broadcast, Less Sun Roof / Aerial, For Metal Roof Panel / From: BA568563 		- 1 Enquire
HP2 XUK500021
PLUG
Power Tilt/Slide Sun Roof / Aerial, For Glass Panel Only / From: AA000001 / To: BA568562 		- 1 Enquire
HP2 LR030841
PLUG - AERIAL CABLE HOLE
HD Radio Broadcast, Power Tilt/Slide Sun Roof / Aerial, For Glass Panel Only / From: BA568563 		- 1 Enquire
HS1 XUI500010
SCREW
M6 X 16MM, Torx / From: AA000001 / To: BA999999 		- 3 Enquire
HS2 XYP500240
SCREW
M5 x 14MM / From: AA000001 		- 2 Enquire
3B457 LR084457
RING - RETAINING
From: GA000001 		- 1 Enquire
3B457 LR096456
RING - RETAINING
From: GA000001 		- 1 Enquire
10E893 LR016364
AERIAL
(+)"J", Vehicle Info & Com System / From: AA000001 		- 1 Enquire
14A705 EFT500041
BRACKET
For Glass Panel Only / From: AA000001 		- 1 Enquire
14B576 XUO000060
AMPLIFIER
TV / From: AA000001 / To: BA999999 		- 1 Enquire
18A984A XUI500330
AERIAL - GPS
HD And Sirius Radio Broadcast, Power Tilt/Slide Sun Roof / From: AA000001 / To: BA999999 		- 1 Enquire
18A984A LR031943
AERIAL - GPS
HD And Sirius Radio Broadcast, Power Tilt/Slide Sun Roof / From: CA000001 / To: GA845904 		- 1 Enquire
18A984A LR014110
AERIAL
Digital Audio Broadcast, Power Tilt/Slide Sun Roof / From: AA000001 		- 1 Enquire
18A984A LR095840
AERIAL - GPS
Power Tilt/Slide Sun Roof, Sirius Radio Broadcast / From: GA845905 		- 1 Enquire
18A984B XUI500350
AERIAL - ROOF MOUNTED
Less Sun Roof, Navgtn Sys With Colour Touch Screen / From: AA000001 / To: BA999999 		- 1 Enquire
18A984B XUI500360
AERIAL - ROOF MOUNTED
HD And Sirius Radio Broadcast, Less Sun Roof / From: AA000001 / To: BA999999 		- 1 Enquire
18A984B LR031942
AERIAL - ROOF MOUNTED
Less Sun Roof, Sirius Radio Broadcast / From: CA000001 		- 1 Enquire
18A984B LR012731
AERIAL - ROOF MOUNTED
Digital Audio Broadcast, Less Sun Roof / From: AA000001 		- 1 Enquire
19G255A XUC000262
ISOLATOR - RADIO ANTENNA
With Premium Sound System / Brown, Radio - AM/FM / From: AA000001 / To: BA999999 		- 1 Enquire
19G255B XUC000080
ISOLATOR
Black, TV / From: AA000001 / To: BA999999 		- 4 Enquire
19G255C LR001689
AMPLIFIER - RADIO ANTENNA
HD And Sirius Radio Broadcast / Green, Single Wire Connector / From: AA000001 / To: BA999999 		- 1 Enquire
19G255C LR024157
AMPLIFIER - TV
TV Receiver Hybrid-DVB-T & Analog / TV / From: CA000001 		- 4 Enquire
19G255C LR024158
AMPLIFIER - TV
TV Receiver - Digital, With Park Heating / Telestart / From: CA000001 		- 1 Enquire
19G255C LR029700
AMPLIFIER - RADIO ANTENNA
AM/FM Antenna / From: CA000001 		- 1 Enquire
19G255C LR029701
AMPLIFIER - RADIO ANTENNA
FM Antenna / From: CA000001 		- 1 Enquire
19G255C LR029702
AMPLIFIER - RADIO ANTENNA
Digital Audio Broadcast / From: CA000001 		- 1 Enquire
19G255C LR029703
AMPLIFIER - RADIO ANTENNA
(+)"J", Analogue Audio Broadcast, Nav System/Dynmc Route Guide-VICS / From: CA000001 		- 1 Enquire
19G255C LR024157
AMPLIFIER - TV
Digital TV China CMMB/DMTB / TV / From: FA000001 		- 4 Enquire
13763 AKR780130
BRACKET - AERIAL
Less Sun Roof / From: AA000001 		- 1 Enquire
