Timing Gear (Lower, Solihull Plant Build) (3.0 V6 Diesel) ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] - Timing Gear (Lower, Solihull Plant Build) (3.0 V6 Diesel) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR006027 BOLT Enquire To Order
LR062017 BOLT - HEX.HEAD Enquire To Order
Photo Part No Description Price (each) Stock
LR004104 SCREW Enquire To Order
FT110256 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR005996 GEAR - CRANKSHAFT Enquire To Order
LR067242 GEAR - CRANKSHAFT Enquire To Order
LR097162 GEAR - CRANKSHAFT Enquire To Order
Photo Part No Description Price (each) Stock
LR013377 BOLT - HEX.HEAD Enquire To Order
Photo Part No Description Price (each) Stock
1311306 KIT - DRIVE BELT Enquire To Order
Photo Part No Description Price (each) Stock
LR016655 BELT - TIMING Enquire To Order
LR078913 BELT - TIMING Enquire To Order
View All

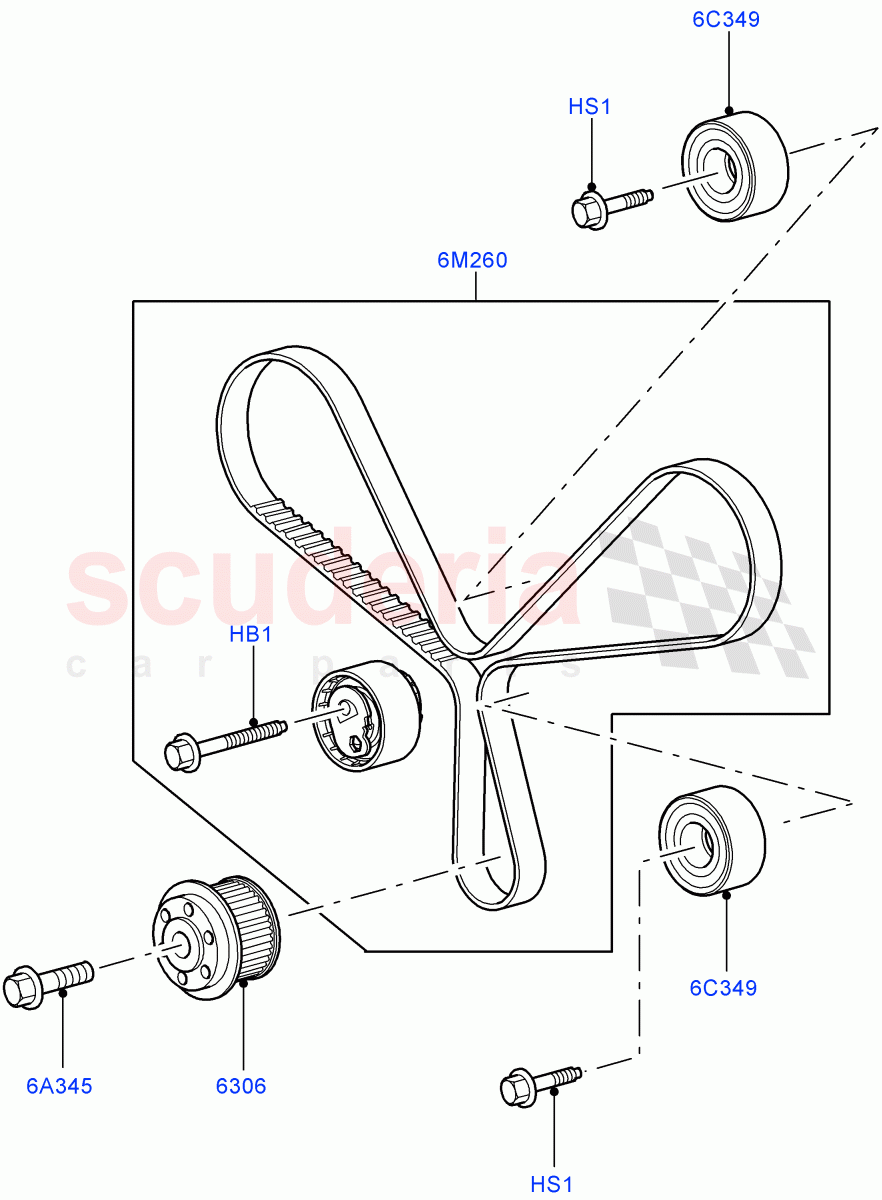

Timing Gear (Lower, Solihull Plant Build) (3.0 V6 Diesel) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR006027
BOLT
3.0L 24V V6 Turbo Diesel Std Flow / M8 X 75MM / From: AA000001 		- 1 Enquire
HB1 LR062017
BOLT - HEX.HEAD
3.0 V6 D Gen2 Twin Turbo / M10 x 75MM / From: GA000001 		- 1 Enquire
HS1 LR004104
SCREW
M10 X 25MM / From: AA000001 / To: AA999999 		- 2 Enquire
HS1 FT110256
SCREW
M10 X 25MM / From: BA000001 		- 2 Enquire
6A345 LR013377
BOLT - HEX.HEAD
M16 X 70 / From: AA000001 		- 1 Enquire
6C349 1311306
KIT - DRIVE BELT
Timing Belt / From: AA000001 		- 2 Enquire
6M260 LR016655
BELT - TIMING
3.0L 24V V6 Turbo Diesel Std Flow / From: AA000001 		- 1 Enquire
6M260 LR078913
BELT - TIMING
3.0 V6 D Gen2 Twin Turbo / From: GA000001 		- 1 Enquire
6306 LR005996
GEAR - CRANKSHAFT
3.0L 24V V6 Turbo Diesel Std Flow / From: AA000001 		- 1 Enquire
6306 LR067242
GEAR - CRANKSHAFT
3.0 V6 D Gen2 Twin Turbo / Includes Friction Washer / From: GA000001 / To: GA843277 		- 1 Enquire
6306 LR097162
GEAR - CRANKSHAFT
3.0 V6 D Gen2 Twin Turbo / Includes Friction Washer / From: GA843278 		- 1 Enquire
