Timing Gear (Upper, Solihull Plant Build) (3.0 V6 Diesel) ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] - Timing Gear (Upper, Solihull Plant Build) (3.0 V6 Diesel) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
6136185 BOLT - HEX.HEAD $3.58 To Order
LR037840 BOLT $8.19 IN STOCK
Photo Part No Description Price (each) Stock
LR068165 BOLT $12.25 To Order
LR068165 BOLT $12.25 To Order
Photo Part No Description Price (each) Stock
4378449 SCREW $2.11 IN STOCK
Photo Part No Description Price (each) Stock
1316113 KIT - TIMING CHAIN AND TENSIONER $134.68 To Order
Photo Part No Description Price (each) Stock
LR120556 PULLEY - TIMING BELT $121.86 To Order
Photo Part No Description Price (each) Stock
1324372 PULLEY - TIMING BELT $18.81 To Order
Photo Part No Description Price (each) Stock
1324342 HUB - CAMSHAFT PULLEY $78.77 To Order
Photo Part No Description Price (each) Stock
LR120555 HUB - CAMSHAFT PULLEY $114.04 To Order
View All

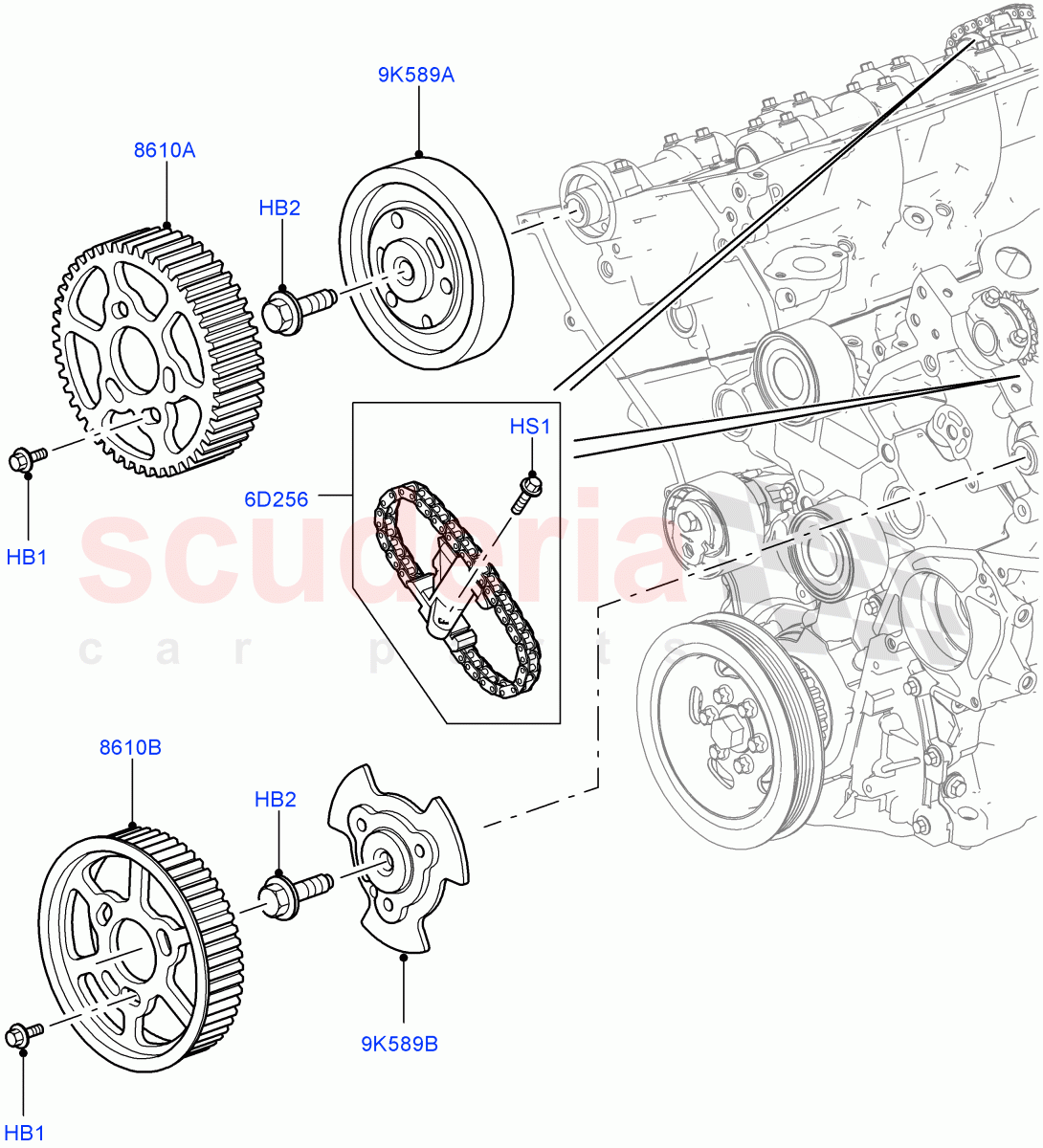

Timing Gear (Upper, Solihull Plant Build) (3.0 V6 Diesel) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 6136185
BOLT - HEX.HEAD
M8 x 18MM / From: AA000001 / To: CA999999 		$3.58 6
HB1 LR037840
BOLT
M8 x 18MM / From: DA000001
IN STOCK 		$8.19 6
HB2 LR068165
BOLT
M12 x 1.5 x 35MM / From: AA000001 / To: FA999999 		$12.25 2
HB2 LR068165
BOLT
M12 x 1.5 x 35MM / From: GA000001 		$12.25 2
HS1 4378449
SCREW
M6 x 25MM / From: AA000001
IN STOCK 		$2.11 4
6D256 1316113
KIT - TIMING CHAIN AND TENSIONER
Short Chains Between Camshafts / From: AA000001 		$134.68 2
9K589A 1324342
HUB - CAMSHAFT PULLEY
RH, Camshaft Pulley, Front / From: AA000001 		$78.77 1
9K589B LR120555
HUB - CAMSHAFT PULLEY
LH, Camshaft Pulley, Front / From: AA000001 		$114.04 1
8610A LR120556
PULLEY - TIMING BELT
RH, Timing Belt / From: AA000001 		$121.86 1
8610B 1324372
PULLEY - TIMING BELT
LH, Timing Belt / From: AA000001 		$18.81 1
