Turbocharger (LH Side - Primary) (3.0L 24V V6 Turbo Diesel Std Flow, 3.0L 24V DOHC V6 TC Diesel, 3.0 V6 Diesel Electric Hybrid Eng) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] - Turbocharger (LH Side - Primary) (3.0L 24V V6 Turbo Diesel Std Flow, 3.0L 24V DOHC V6 TC Diesel,...

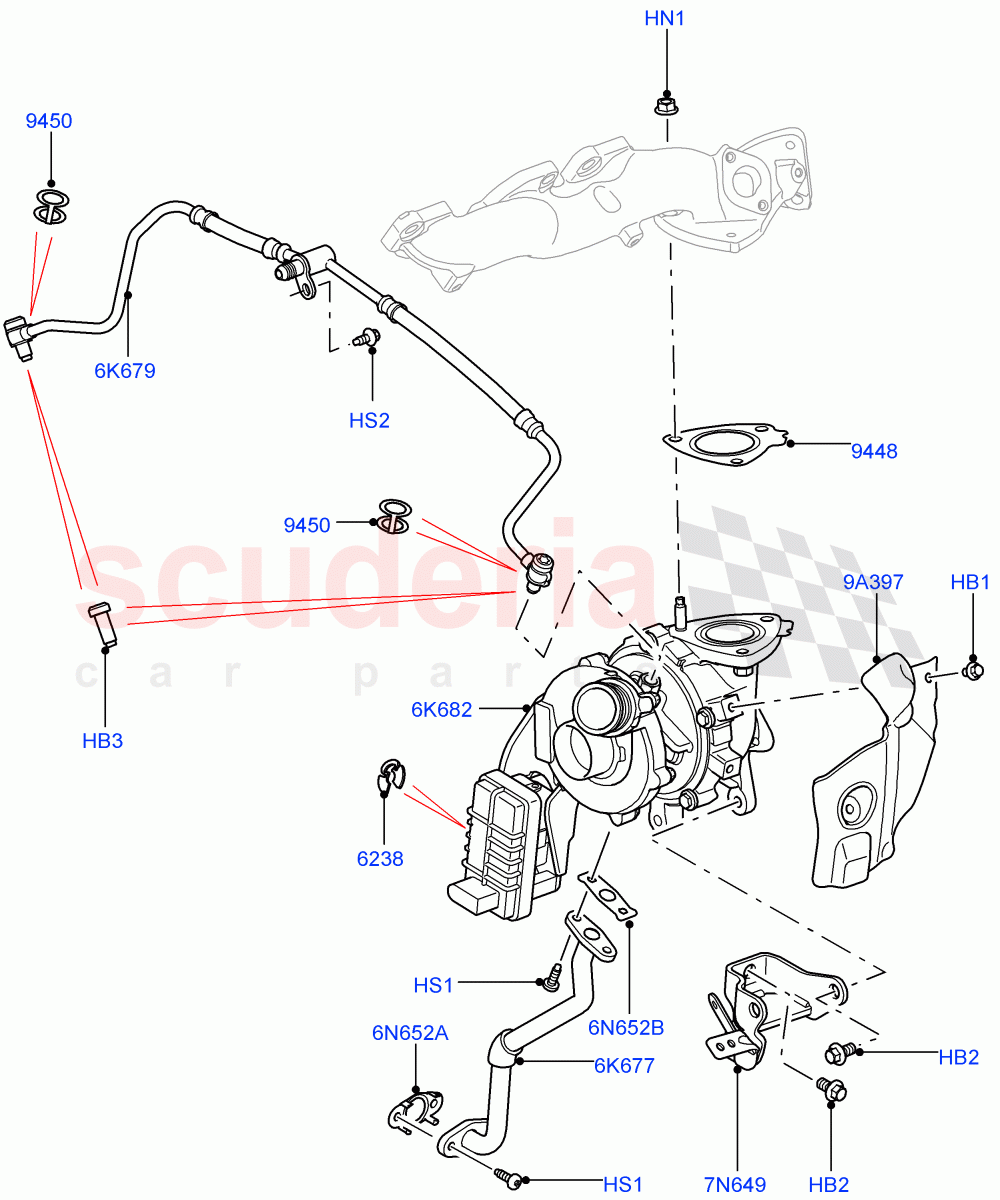

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR014200	BOLT - HEX.HEAD	Enquire	To Order
	LR105437	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1419376	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023967	BOLT - BANJO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR106277	NUT - HEX. - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500960	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000622	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR008722	CLIP - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013236	GASKET - EXHAUST MANIFOLD	Enquire	To Order
	LR084664	GASKET - EXHAUST MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1372726	GASKET - OIL TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013610	HOSE - OIL RETURN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013199	PIPE - OIL FEED	Enquire	To Order
	LR038163	PIPE - OIL FEED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013202	TURBOCHARGER	Enquire	To Order
	LR029915	TURBOCHARGER	Enquire	To Order
	LR056369	TURBOCHARGER	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR013484	BRACKET - TURBOCHARGER	Enquire	To Order
	LR079477	BRACKET - TURBOCHARGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013615	HEAT SHIELD - TURBOCHARGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013234	GASKET - OIL TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013235	GASKET - OIL RETURN HOSE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR014200	BOLT - HEX.HEAD	LR014200 BOLT - HEX.HEAD Heat Shield, Hexagonal Head, M6 X 10MM / From: AA000001 / To: GA845750	-	3	Enquire
HB1	LR105437	BOLT - HEX.HEAD	LR105437 BOLT - HEX.HEAD Heat Shield, Hexagonal Head, M6 X 8MM / From: GA845751	-	3	Enquire
HB2	1419376	BOLT	1419376 BOLT Bracket, Hexagonal Head, M8 X 16MM, Turbocharger Assembly / From: AA000001	-	3	Enquire
HB3	LR023967	BOLT - BANJO	LR023967 BOLT - BANJO Banjo Bolt, Hexagonal Head, Service Part May Differ From Production, Turbocharger Oil Feed / From: AA000001	-	2	Enquire
HN1	LR106277	NUT - HEX. - FLANGED	LR106277 NUT - HEX. - FLANGED M8, Turbocharger Inlet / From: AA000001	-	3	Enquire
HS1	RYP500960	SCREW	RYP500960 SCREW M6 X 16MM, Torx, Tube - Oil Return / From: AA000001	-	4	Enquire
HS2	LR000622	SCREW	LR000622 SCREW M6 x 12MM, Tube / From: AA000001	-	1	Enquire
6K677	LR013610	HOSE - OIL RETURN	LR013610 HOSE - OIL RETURN From: AA000001	-	1	Enquire
6K679	LR013199	PIPE - OIL FEED	LR013199 PIPE - OIL FEED From: AA000001 / To: CA626295	-	1	Enquire
6K679	LR038163	PIPE - OIL FEED	LR038163 PIPE - OIL FEED Includes Banjo Bolt / From: CA626296	-	1	Enquire
6K682	LR013202	TURBOCHARGER	LR013202 TURBOCHARGER LH, New Part-Please Check For Reman Version, Primary / From: AA000001 / To: AA546302	-	1	Enquire
6K682	LR029915	TURBOCHARGER	LR029915 TURBOCHARGER LH, New Part-Please Check For Reman Version, Primary / From: AA546303 / To: DA999999	-	1	Enquire
6K682	LR056369	TURBOCHARGER	LR056369 TURBOCHARGER LH, New Part-Please Check For Reman Version, Primary / From: EA000001	-	1	Enquire
6K682	LR049590	TURBOCHARGER	LR049590 TURBOCHARGER LH, Primary, Remanufactured Part / From: AA000001	-	1	Enquire
6N652A	LR013234	GASKET - OIL TUBE	LR013234 GASKET - OIL TUBE Lower, Tube - Oil Return / From: AA000001	-	1	Enquire
6N652B	LR013235	GASKET - OIL RETURN HOSE	LR013235 GASKET - OIL RETURN HOSE Gasket - Turbocharger Oil Return Hose, Upper / From: AA000001	-	1	Enquire
7N649	LR013484	BRACKET - TURBOCHARGER	LR013484 BRACKET - TURBOCHARGER Turbocharger / From: AA000001 / To: GA333332	-	1	Enquire
7N649	LR079477	BRACKET - TURBOCHARGER	LR079477 BRACKET - TURBOCHARGER Turbocharger Inlet / From: GA333333	-	1	Enquire
9A397	LR013615	HEAT SHIELD - TURBOCHARGER	LR013615 HEAT SHIELD - TURBOCHARGER LH, Turbocharger / From: AA000001	-	1	Enquire
6238	LR008722	CLIP - SPECIAL	LR008722 CLIP - SPECIAL From: AA000001	-	2	Enquire
9448	LR013236	GASKET - EXHAUST MANIFOLD	LR013236 GASKET - EXHAUST MANIFOLD Turbocharger / From: AA000001 / To: GA798190	-	1	Enquire
9448	LR084664	GASKET - EXHAUST MANIFOLD	LR084664 GASKET - EXHAUST MANIFOLD Turbocharger / From: GA798191	-	1	Enquire
9450	1372726	GASKET - OIL TUBE	1372726 GASKET - OIL TUBE Banjo Washer / From: AA000001	-	2	Enquire
