Fuel Pump And Sender Unit (3.0 V6 Diesel) ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] - Fuel Pump And Sender Unit (3.0 V6 Diesel) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR050538 CONNECTOR - CABLE $2.15 IN STOCK
Photo Part No Description Price (each) Stock
LR015940 FLOAT $140.21 To Order
LR042894 FLOAT $140.21 To Order
Photo Part No Description Price (each) Stock
LR014999 FLOAT-SENDER $140.13 To Order
LR042971 FLOAT $140.13 To Order
Photo Part No Description Price (each) Stock
LR015937 BRACKET - FUEL TANK $107.03 To Order
LR042974 BRACKET - FUEL TANK $121.64 To Order
Photo Part No Description Price (each) Stock
LR014998 SENDER AND PUMP $475.15 To Order
LR042717 SENDER AND PUMP $470.55 To Order
View All

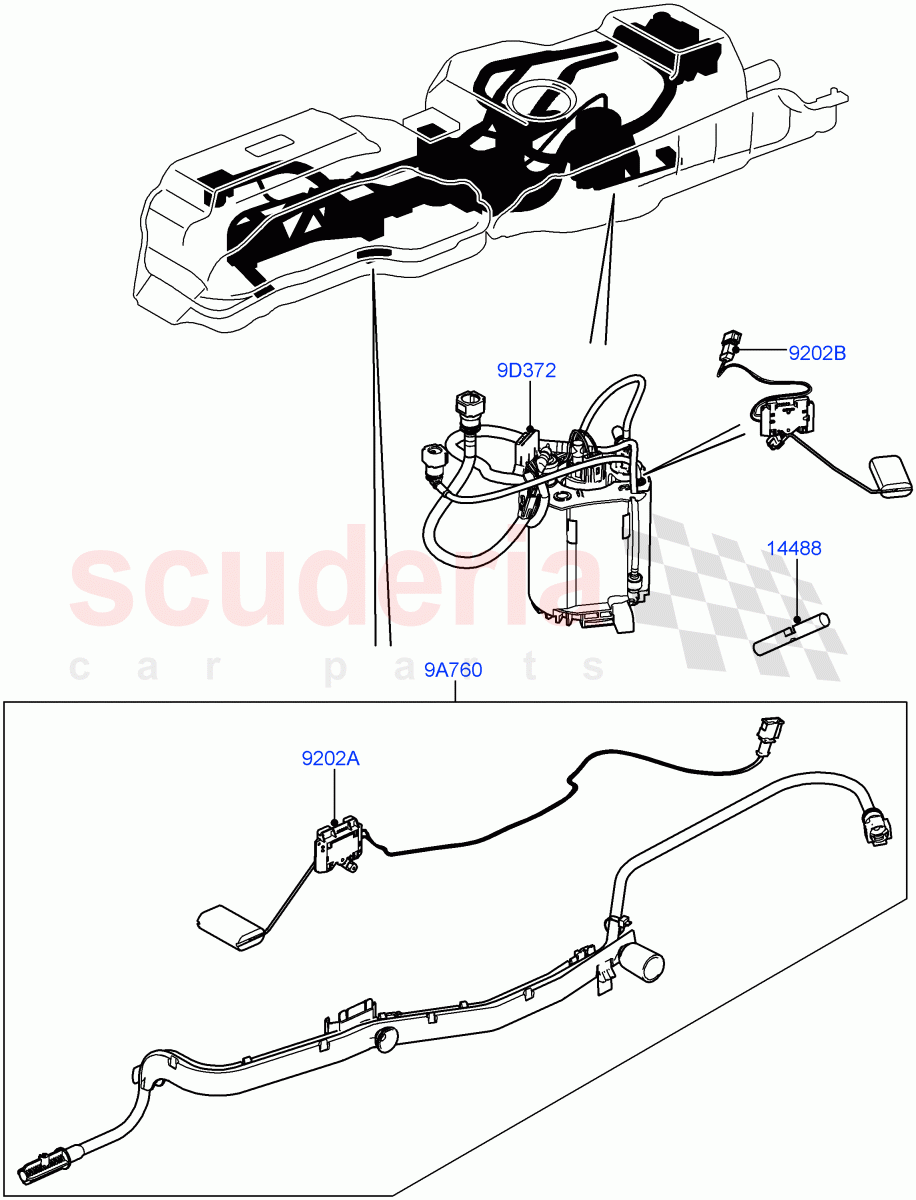

Fuel Pump And Sender Unit (3.0 V6 Diesel) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
9A760 LR015937
BRACKET - FUEL TANK
With Fuel Sender / From: AA000001 / To: CA625262 		$107.03 1
9A760 LR042974
BRACKET - FUEL TANK
With Fuel Sender / From: CA625263 		$121.64 1
9D372 LR014998
SENDER AND PUMP
From: AA000001 / To: CA625262 		$475.15 1
9D372 LR042717
SENDER AND PUMP
From: CA625263 		$470.55 1
9202A LR015940
FLOAT
Front / From: AA000001 / To: CA625262 		$140.21 1
9202A LR042894
FLOAT
Front / From: CA625263 		$140.21 1
9202B LR014999
FLOAT-SENDER
Rear / From: AA000001 / To: CA625262 		$140.13 1
9202B LR042971
FLOAT
Rear / From: CA625263 		$140.13 1
14488 LR050538
CONNECTOR - CABLE
Fuel Level Sender Harness Connector Repair Kit / From: AA510742 / To: BA595923
IN STOCK 		$2.15 6
