Front Exhaust System (3.0 V6 Diesel, Euro Stage 4 Emissions) ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] - Front Exhaust System (3.0 V6 Diesel, Euro Stage 4 Emissions) ((V) FROMAA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
WYP000025 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR016144 CATALYST Enquire To Order
LR084896 CATALYTIC CONVERTER Enquire To Order
Photo Part No Description Price (each) Stock
LR014155 INSULATOR - RUBBER Enquire To Order
Photo Part No Description Price (each) Stock
LR009430 CLAMP Enquire To Order
Photo Part No Description Price (each) Stock
LR007465 CLAMP Enquire To Order
Photo Part No Description Price (each) Stock
LR016619 GASKET - EXHAUST PIPE Enquire To Order
Photo Part No Description Price (each) Stock
LR016621 GASKET - EXHAUST PIPE Enquire To Order
Photo Part No Description Price (each) Stock
LR015927 PIPE - EXHAUST Enquire To Order
Photo Part No Description Price (each) Stock
LR015926 PIPE - EXHAUST Enquire To Order
LR041421 PIPE - EXHAUST Enquire To Order
View All

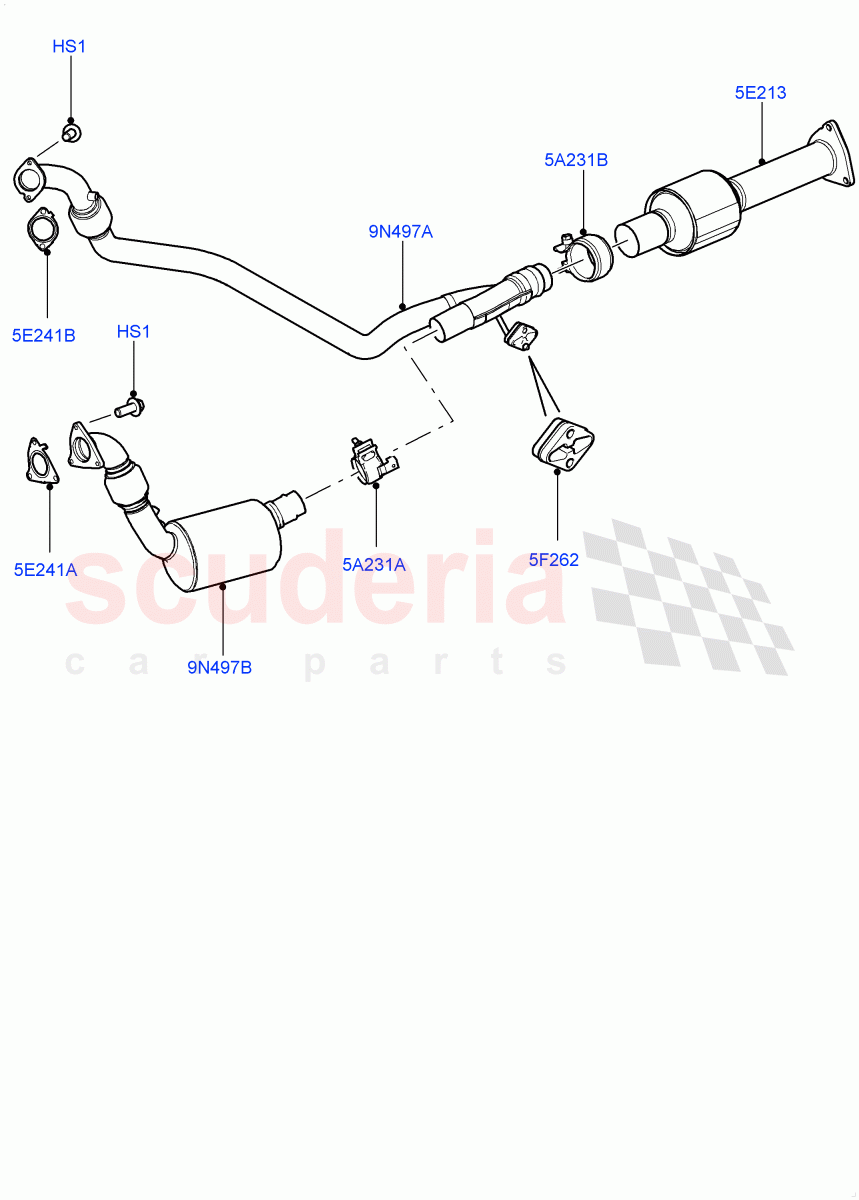

Front Exhaust System (3.0 V6 Diesel, Euro Stage 4 Emissions) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 WYP000025
SCREW
Front, Hexagonal Head, M8 X 20MM / From: AA000001 		- 5 Enquire
5A231A LR009430
CLAMP
55MM, Front / From: AA000001 		- 1 Enquire
5A231B LR007465
CLAMP
60MM, Centre / From: AA000001 		- 1 Enquire
5E213 LR016144
CATALYST
Centre / From: AA000001 / To: GA805490 		- 1 Enquire
5E213 LR084896
CATALYTIC CONVERTER
Centre / From: GA805491 		- 1 Enquire
5E241A LR016619
GASKET - EXHAUST PIPE
LH, Exhaust pipe / From: AA000001 		- 1 Enquire
5E241B LR016621
GASKET - EXHAUST PIPE
RH, Exhaust pipe / From: AA000001 		- 1 Enquire
5F262 LR014155
INSULATOR - RUBBER
From: AA000001 		- 1 Enquire
9N497A LR015927
PIPE - EXHAUST
RH / From: AA000001 		- 1 Enquire
9N497B LR015926
PIPE - EXHAUST
LH, With Catalyst / From: AA000001 / To: CA999999 		- 1 Enquire
9N497B LR041421
PIPE - EXHAUST
From: DA000001 		- 1 Enquire
