Find Your Part

Radiator/Coolant Overflow Container (3.0 V6 Diesel) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] - Radiator/Coolant Overflow Container (3.0 V6 Diesel) ((V) FROMAA000001)

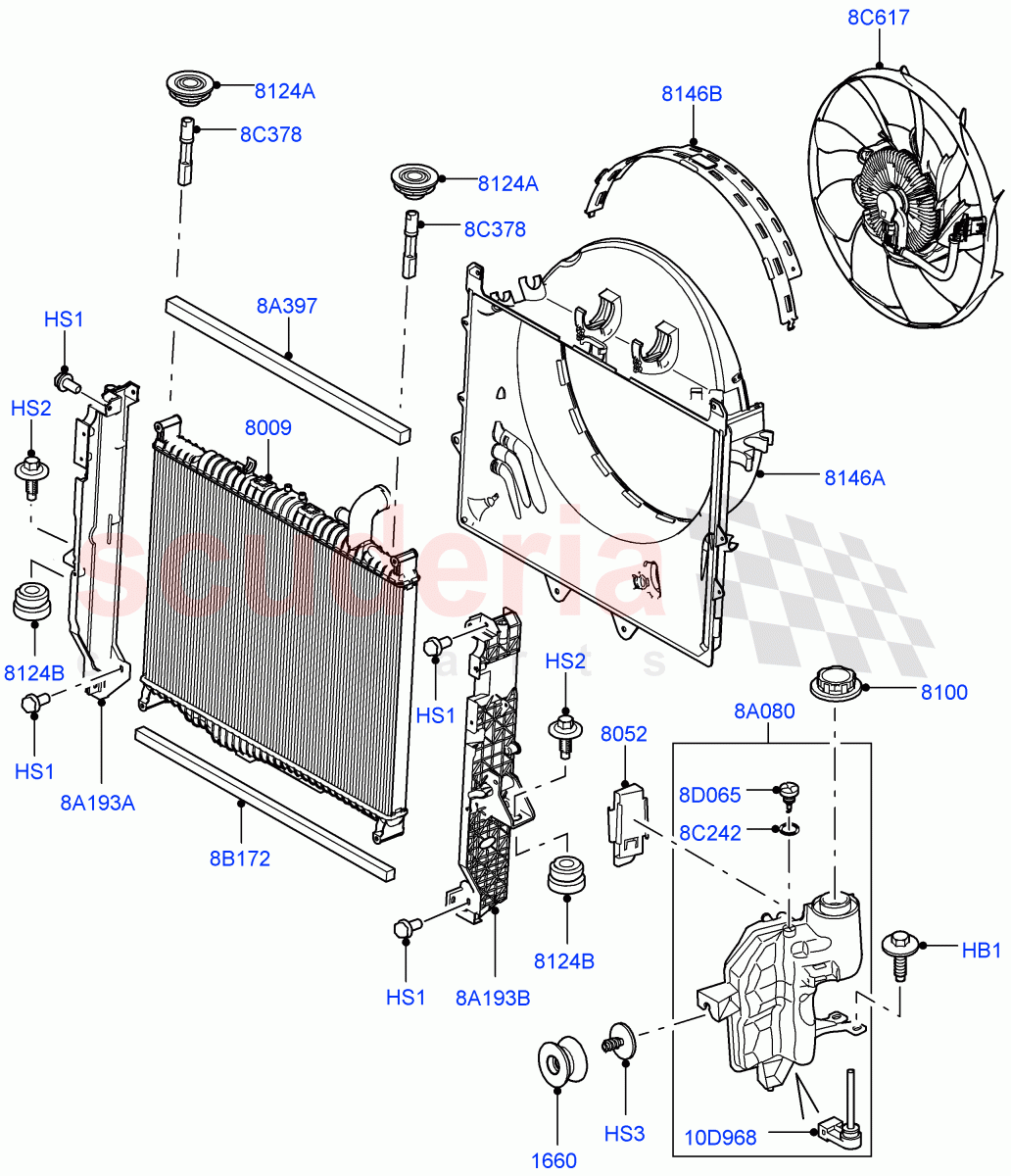

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	PYP500120	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018708	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PYP000221	SCREW AND WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AB608068	Screw	Enquire	To Order
	LR020269	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	KGX500020	SPACER	Enquire	To Order
	LR015830	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015561	RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PCU500091	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR176860	CAP - OVERFLOW CONTAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PDI500012	INSULATOR - RADIATOR MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PCG500120	INSULATOR - RADIATOR SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR016375	SHROUD - RADIATOR FAN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR016374	SHROUD - RADIATOR FAN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013663	TANK - RADIATOR OVERFLOW	Enquire	To Order
	LR020367	TANK - RADIATOR OVERFLOW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR019729	SEAL	Enquire	To Order
	LR019729	SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR016216	FOAM - SEALING	Enquire	To Order
	LR028946	FOAM - SEALING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007315	SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PDG500045	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013695	FAN	Enquire	To Order
	LR023392	MOTOR AND FAN - ENGINE COOLING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007314	VALVE - BLEEDER SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PCJ500030	SENSOR - COOLANT LEVEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR016182	SUPPORT - RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR016145	SUPPORT - RADIATOR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	PYP500120	BOLT	PYP500120 BOLT M6 X 20MM / From: AA000001	-	2	Enquire
HS1	LR018708	SCREW	LR018708 SCREW M8 X 20MM / From: AA000001	-	14	Enquire
HS2	PYP000221	SCREW AND WASHER	PYP000221 SCREW AND WASHER M8 X 25MM / From: AA000001	-	2	Enquire
HS3	AB608068	Screw	AB608068 Screw 4.2 X 19MM / From: AA000001 / To: AA523459	-	1	Enquire
HS3	LR020269	SCREW	LR020269 SCREW 4.2 X 19MM / From: AA523460	-	1	Enquire
8A080	LR013663	TANK - RADIATOR OVERFLOW	LR013663 TANK - RADIATOR OVERFLOW With Sensor / From: AA000001 / To: AA520252	-	1	Enquire
8A080	LR020367	TANK - RADIATOR OVERFLOW	LR020367 TANK - RADIATOR OVERFLOW From: AA520253	-	1	Enquire
8A193A	LR016182	SUPPORT - RADIATOR	LR016182 SUPPORT - RADIATOR RH / From: AA000001	-	1	Enquire
8A193B	LR016145	SUPPORT - RADIATOR	LR016145 SUPPORT - RADIATOR LH / From: AA000001	-	1	Enquire
8A397	LR019729	SEAL	LR019729 SEAL Upper / From: AA000001 / To: AA518086	-	1	Enquire
8A397	LR019729	SEAL	LR019729 SEAL Upper / From: AA518087	-	1	Enquire
8B172	LR016216	FOAM - SEALING	LR016216 FOAM - SEALING Lower / From: AA000001 / To: BA567684	-	1	Enquire
8B172	LR028946	FOAM - SEALING	LR028946 FOAM - SEALING Lower / From: BA567685	-	1	Enquire
8C242	LR007315	SEAL	LR007315 SEAL Bleeder Screw / From: AA000001	-	1	Enquire
8C378	PDG500045	PIN	PDG500045 PIN Top / From: AA000001	-	2	Enquire
8C617	LR013695	FAN	LR013695 FAN From: AA000001 / To: AA532199	-	1	Enquire
8C617	LR023392	MOTOR AND FAN - ENGINE COOLING	LR023392 MOTOR AND FAN - ENGINE COOLING From: AA532200	-	1	Enquire
8D065	LR007314	VALVE - BLEEDER SCREW	LR007314 VALVE - BLEEDER SCREW Bleeder Screw / From: AA000001	-	1	Enquire
10D968	PCJ500030	SENSOR - COOLANT LEVEL	PCJ500030 SENSOR - COOLANT LEVEL From: AA000001	-	1	Enquire
1660	KGX500020	SPACER	KGX500020 SPACER From: AA000001 / To: AA521655	-	1	Enquire
1660	LR015830	SPACER	LR015830 SPACER From: AA521656	-	1	Enquire
8009	LR015561	RADIATOR	LR015561 RADIATOR From: AA000001	-	1	Enquire
8052	PCU500091	BRACKET	PCU500091 BRACKET Expansion Reservoir Overflow / From: AA000001	-	1	Enquire
8100	LR176860	CAP - OVERFLOW CONTAINER	LR176860 CAP - OVERFLOW CONTAINER From: AA000001	-	1	Enquire
8124A	PDI500012	INSULATOR - RADIATOR MOUNTING	PDI500012 INSULATOR - RADIATOR MOUNTING Radiator Mounting, Top / From: AA000001	-	2	Enquire
8124B	PCG500120	INSULATOR - RADIATOR SUPPORT	PCG500120 INSULATOR - RADIATOR SUPPORT Lower, Round / From: AA000001	-	2	Enquire
8146A	LR016375	SHROUD - RADIATOR FAN	LR016375 SHROUD - RADIATOR FAN Lower / From: AA000001	-	1	Enquire
8146B	LR016374	SHROUD - RADIATOR FAN	LR016374 SHROUD - RADIATOR FAN Upper / From: AA000001	-	1	Enquire
