Cooling System Pipes And Hoses (3.0 V6 Diesel) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Discovery 4 (2010-2016) [3.0 Diesel 24V DOHC TC] - Cooling System Pipes And Hoses (3.0 V6 Diesel) ((V) FROMAA000001)

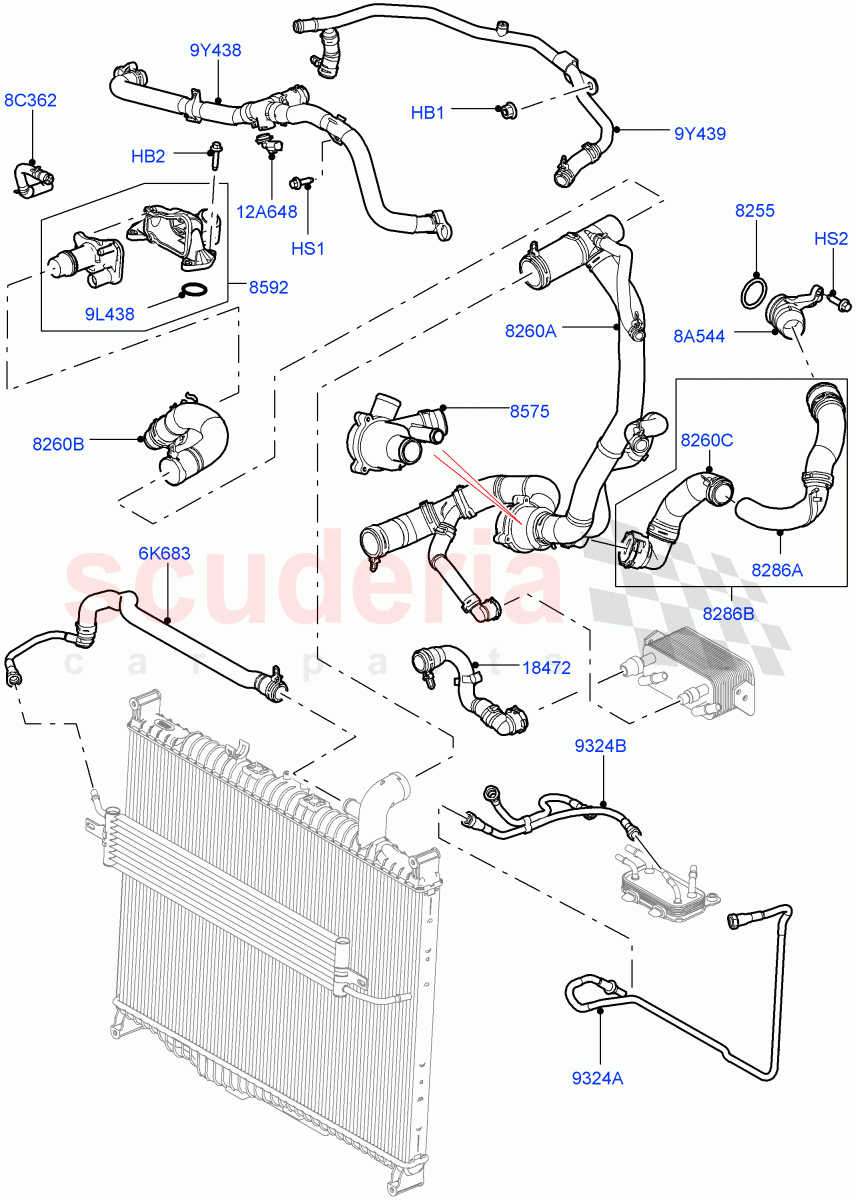

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108166	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1007604	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BYP500170	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500220	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1336551	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033675	THERMOSTAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073372	CONNECTION - WATER OUTLET	Enquire	To Order
	LR073372	CONNECTION - WATER OUTLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013678	HOSE - HEATER WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013691	HOSE - FUEL COOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013685	HOSE - THERMOSTAT	Enquire	To Order
	LR020126	HOSE - THERMOSTAT	Enquire	To Order
	LR025969	HOSE - THERMOSTAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013682	HOSE - RADIATOR	Enquire	To Order
	LR095544	HOSE - RADIATOR	Enquire	To Order
	LR043326	HOSE - RADIATOR	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR025236	HOSE - RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013683	HOSE - RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025236	HOSE - RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013165	TUBE - CONNECTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015811	HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013694	HOSE - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR014204	HOSE - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR018829	GASKET - THERMOSTAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013163	HOSE - EGR COOLER	Enquire	To Order
	LR033912	HOSE - EGR COOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR014152	HOSE	Enquire	To Order
	LR064221	HOSE - EGR COOLER	Enquire	To Order
	LR071341	HOSE - EGR COOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4346360	SENSOR - ENGINE COOLANT TEMPERATURE	Enquire	To Order
	LR041442	SENSOR - ENGINE COOLANT TEMPERATURE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	FS108166	BOLT	FS108166 BOLT Hexagonal Head, M8 X 16MM / From: AA000001	-	2	Enquire
HB2	1007604	BOLT - HEX.HEAD	1007604 BOLT - HEX.HEAD M6 X 25MM / From: AA000001	-	4	Enquire
HS1	BYP500170	SCREW	BYP500170 SCREW Hexagonal Head, M6 x 14MM / From: AA000001	-	2	Enquire
HS2	RYG500220	SCREW	RYG500220 SCREW Hexagonal Head, M6 X 20MM / From: AA000001	-	2	Enquire
6K683	LR013691	HOSE - FUEL COOLER	LR013691 HOSE - FUEL COOLER For Fuel Cooler, Outlet, Radiator To Cooler, Upper / From: AA000001	-	1	Enquire
8A544	LR013165	TUBE - CONNECTING	LR013165 TUBE - CONNECTING Bottom / From: AA000001	-	1	Enquire
8C362	LR015811	HOSE	LR015811 HOSE Cooling System Bleed / From: AA000001	-	1	Enquire
9L438	LR018829	GASKET - THERMOSTAT	LR018829 GASKET - THERMOSTAT Thermostat Housing / From: AA000001	-	2	Enquire
9Y438	LR013163	HOSE - EGR COOLER	LR013163 HOSE - EGR COOLER Cooled EGR, Inlet Tube / From: AA000001 / To: BA999999	-	1	Enquire
9Y438	LR033912	HOSE - EGR COOLER	LR033912 HOSE - EGR COOLER Cooled EGR, Inlet Tube / From: CA000001	-	1	Enquire
9Y439	LR014152	HOSE	LR014152 HOSE 3.0L 24V V6 Turbo Diesel Std Flow / From EGR Cooler To Heater Inlet, Outlet Tube / From: AA000001 / To: FA777400	-	1	Enquire
9Y439	LR064221	HOSE - EGR COOLER	LR064221 HOSE - EGR COOLER 3.0L 24V DOHC V6 TC Diesel / From EGR Cooler To Heater Inlet, Outlet Tube / From: FA777399	-	1	Enquire
9Y439	LR071341	HOSE - EGR COOLER	LR071341 HOSE - EGR COOLER 3.0 V6 D Gen2 Twin Turbo / From EGR Cooler To Heater Inlet, Outlet Tube / From: FA777399	-	1	Enquire
12A648	4346360	SENSOR - ENGINE COOLANT TEMPERATURE	4346360 SENSOR - ENGINE COOLANT TEMPERATURE From: AA000001 / To: CA999999	-	1	Enquire
12A648	LR041442	SENSOR - ENGINE COOLANT TEMPERATURE	LR041442 SENSOR - ENGINE COOLANT TEMPERATURE From: DA000001	-	1	Enquire
8255	1336551	GASKET	1336551 GASKET From: AA000001	-	1	Enquire
8260A	LR013685	HOSE - THERMOSTAT	LR013685 HOSE - THERMOSTAT Engine To Radiator, From Reservoir To Tube, Thermostat And Housing Assy, Top & Bottom, Transmission Cooler Line / From: AA000001 / To: AA517190	-	1	Enquire
8260A	LR020126	HOSE - THERMOSTAT	LR020126 HOSE - THERMOSTAT Engine To Radiator, From Reservoir To Tube, Thermostat And Housing Assy, Top & Bottom, Transmission Cooler Line / From: AA517191 / To: AA550905	-	1	Enquire
8260A	LR025969	HOSE - THERMOSTAT	LR025969 HOSE - THERMOSTAT Engine To Radiator, From Reservoir To Tube, Thermostat And Housing Assy, Top & Bottom, Transmission Cooler Line / From: AA550906	-	1	Enquire
8260B	LR013682	HOSE - RADIATOR	LR013682 HOSE - RADIATOR To Engine, Top / From: AA000001 / To: AA515417	-	1	Enquire
8260B	LR095544	HOSE - RADIATOR	LR095544 HOSE - RADIATOR To Engine, Top / From: AA515418 / To: CA999999	-	1	Enquire
8260B	LR043326	HOSE - RADIATOR	LR043326 HOSE - RADIATOR To Engine, Top / From: DA000001 / To: DA678140	-	1	Enquire
8260B	LR095544	HOSE - RADIATOR	LR095544 HOSE - RADIATOR To Engine, Top / From: DA678141 / To: GA795610	-	1	Enquire
8260B	LR118802	HOSE - RADIATOR	LR118802 HOSE - RADIATOR To Engine, Top / From: GA795611	-	1	Enquire
8260C	LR025236	HOSE - RADIATOR	LR025236 HOSE - RADIATOR Bottom / From: AA000001 / To: AA550905	-	1	Enquire
8286A	LR013683	HOSE - RADIATOR	LR013683 HOSE - RADIATOR Bottom, To Engine / From: AA000001 / To: AA550905	-	1	Enquire
8286B	LR025236	HOSE - RADIATOR	LR025236 HOSE - RADIATOR Bottom, To Engine, Two Piece / From: AA550906	-	1	Enquire
8575	LR033675	THERMOSTAT	LR033675 THERMOSTAT From: AA000001	-	1	Enquire
8592	LR073372	CONNECTION - WATER OUTLET	LR073372 CONNECTION - WATER OUTLET From: AA000001 / To: FA766435	-	1	Enquire
8592	LR073372	CONNECTION - WATER OUTLET	LR073372 CONNECTION - WATER OUTLET From: FA766436	-	1	Enquire
9324A	LR013694	HOSE - FUEL	LR013694 HOSE - FUEL For Fuel Cooler, Inlet / From: AA000001	-	1	Enquire
9324B	LR014204	HOSE - FUEL	LR014204 HOSE - FUEL Bottom, For Fuel Cooler, Inlet, Outlet / From: AA000001	-	1	Enquire
18472	LR013678	HOSE - HEATER WATER	LR013678 HOSE - HEATER WATER Bottom, Radiator To Cooler, Transmission Cooler Line / From: AA000001	-	1	Enquire
