Rear Brake Discs And Calipers (With Standard Duty Coil Spring Susp) ((V) FROMDA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6]

View All

Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6] - Rear Brake Discs And Calipers (With Standard Duty Coil Spring Susp) ((V) FROMDA000001)

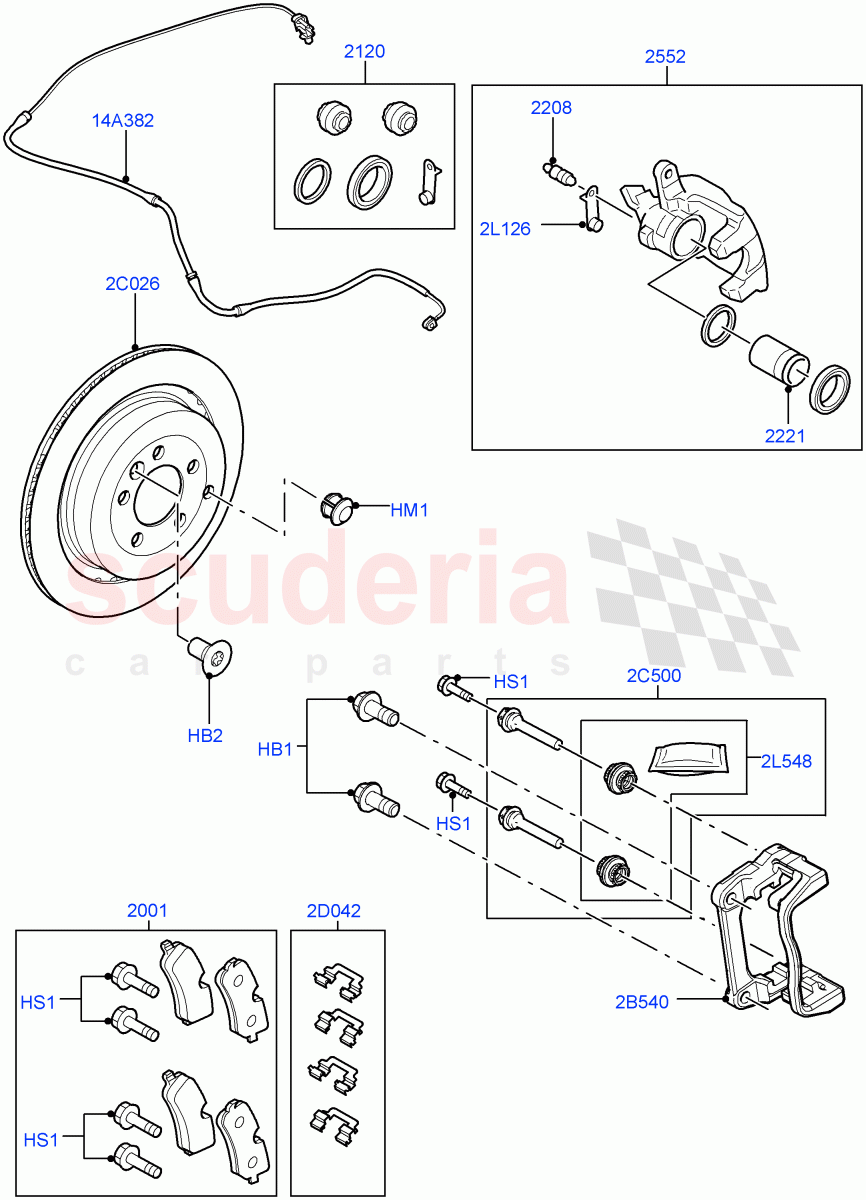

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	SYG000013	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002080	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SOD000010	GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SMV500010	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR134696	BRAKE PADS - LESS SPRINGS	Enquire	To Order
	LR055454	BRAKE PADS - LESS SPRINGS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SMN500030	KIT - CALIPER REPAIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR015523	SCREW - BLEED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	STC1908	PISTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SOB500042	HOUSING	Enquire	To Order
	SOB500052	HOUSING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SXP500013	CARRIER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SDB000636	DISC - BRAKE - VENTED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SMN500040	KIT - CALIPER BRAKE PAD MTG PARTS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR019626	CLIP SET - BRAKE PAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SEE500100	CAP - BLEED SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SEE500030	KIT - SLIDE PIN BOOT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SOE000025	WIRE - BRAKE PAD WEAR WARNING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	SYG000013	BOLT	SYG000013 BOLT External Torx Head, Knuckle To Calliper, M12 X 35MM / From: DA000001	-	4	Enquire
HB2	LR002080	BOLT	LR002080 BOLT Disc - Brake, M10 X 20MM, Torx / From: DA000001	-	2	Enquire
HM1	SOD000010	GROMMET	SOD000010 GROMMET Plug / From: DA000001	-	2	Enquire
HS1	SMV500010	SCREW	SMV500010 SCREW Pin - Slide / From: DA000001	-	4	Enquire
2B540	SXP500013	CARRIER	SXP500013 CARRIER Support Bracket / From: DA000001	-	2	Enquire
2C026	SDB000636	DISC - BRAKE - VENTED	SDB000636 DISC - BRAKE - VENTED From: DA000001	-	2	Enquire
2C500	SMN500040	KIT - CALIPER BRAKE PAD MTG PARTS	SMN500040 KIT - CALIPER BRAKE PAD MTG PARTS Caliper Set, Pin And Boot / From: DA000001	-	2	Enquire
2D042	LR019626	CLIP SET - BRAKE PAD	LR019626 CLIP SET - BRAKE PAD Axle Set / From: DA000001	-	1	Enquire
2L126	SEE500100	CAP - BLEED SCREW	SEE500100 CAP - BLEED SCREW From: DA000001	-	2	Enquire
2L548	SEE500030	KIT - SLIDE PIN BOOT	SEE500030 KIT - SLIDE PIN BOOT Caliper Set, Kit / From: DA000001	-	2	Enquire
14A382	SOE000025	WIRE - BRAKE PAD WEAR WARNING	SOE000025 WIRE - BRAKE PAD WEAR WARNING From: DA000001	-	1	Enquire
2001	LR134696	BRAKE PADS - LESS SPRINGS	LR134696 BRAKE PADS - LESS SPRINGS Axle Set, Less Clips / From: DA000001 / To: DA699649	-	1	Enquire
2001	LR055454	BRAKE PADS - LESS SPRINGS	LR055454 BRAKE PADS - LESS SPRINGS Axle Set, Less Clips / From: DA699650	-	1	Enquire
2120	SMN500030	KIT - CALIPER REPAIR	SMN500030 KIT - CALIPER REPAIR Boot And Seal, Caliper Set / From: DA000001	-	2	Enquire
2208	LR015523	SCREW - BLEED	LR015523 SCREW - BLEED From: DA000001	-	2	Enquire
2221	STC1908	PISTON	STC1908 PISTON Seal - Piston / From: DA000001	-	2	Enquire
2552	SOB500042	HOUSING	SOB500042 HOUSING RH / From: DA000001	-	1	Enquire
2552	SOB500052	HOUSING	SOB500052 HOUSING LH / From: DA000001	-	1	Enquire
