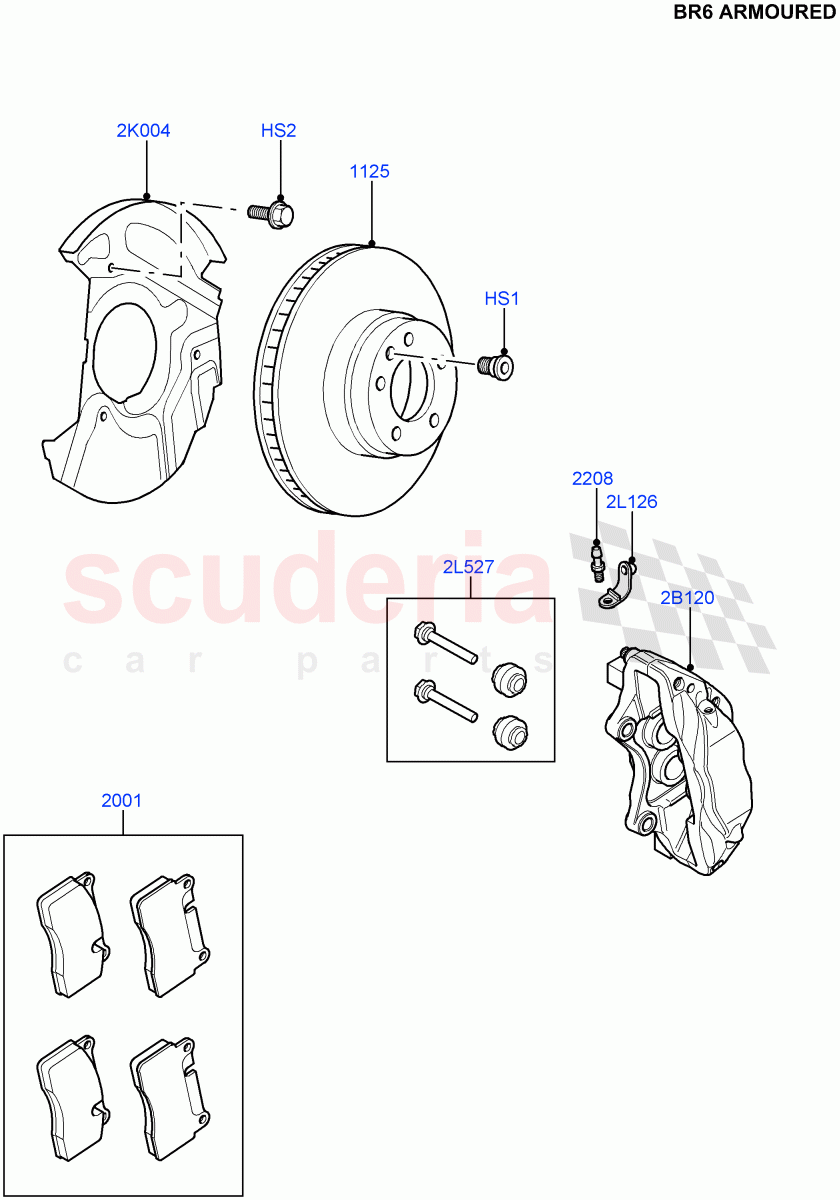

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	SYP100241	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SYP500020	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012232	DISC - BRAKE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012990	KIT - BRAKE LINING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012991	SCREW - BLEED	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	RRJ500010	CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012992	KIT - LOCATING PINS AND BOLTS	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HS1	SYP100241	SCREW	SYP100241 SCREW M10 X 1.5 / From: AA000001	-	2	Enquire
HS2	SYP500020	SCREW	SYP500020 SCREW M6 X 10MM, Torx / From: AA000001	-	10	Enquire
2B120	LR012483	CALIPER - BRAKE - LESS PADS	LR012483 CALIPER - BRAKE - LESS PADS RH / From: AA000001	-	1	Enquire
2B120	LR012484	CALIPER - BRAKE - LESS PADS	LR012484 CALIPER - BRAKE - LESS PADS LH / From: AA000001	-	1	Enquire
2K004	LR011925	SHIELD - SPLASH	LR011925 SHIELD - SPLASH LH / From: AA000001 / To: BA999999	-	1	Enquire
2K004	LR011924	SHIELD - SPLASH	LR011924 SHIELD - SPLASH RH / From: AA000001 / To: BA999999	-	1	Enquire
2K004	LR013666	SHIELD - SPLASH	LR013666 SHIELD - SPLASH LH / From: CA000001	-	1	Enquire
2K004	LR013665	SHIELD - SPLASH	LR013665 SHIELD - SPLASH RH / From: CA000001	-	1	Enquire
2L126	RRJ500010	CAP	RRJ500010 CAP From: AA000001	-	1	Enquire
2L527	LR012992	KIT - LOCATING PINS AND BOLTS	LR012992 KIT - LOCATING PINS AND BOLTS From: AA000001	-	1	Enquire
1125	LR012232	DISC - BRAKE	LR012232 DISC - BRAKE Supplied In Pairs / From: AA000001	-	1	Enquire
2001	LR012990	KIT - BRAKE LINING	LR012990 KIT - BRAKE LINING From: AA000001	-	1	Enquire
2208	LR012991	SCREW - BLEED	LR012991 SCREW - BLEED From: AA000001	-	1	Enquire
