Fuel Injectors And Pipes (Lion Diesel 2.7 V6 (140KW)) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6]

View All

Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6] - Fuel Injectors And Pipes (Lion Diesel 2.7 V6 (140KW)) ((V) FROMAA000001)

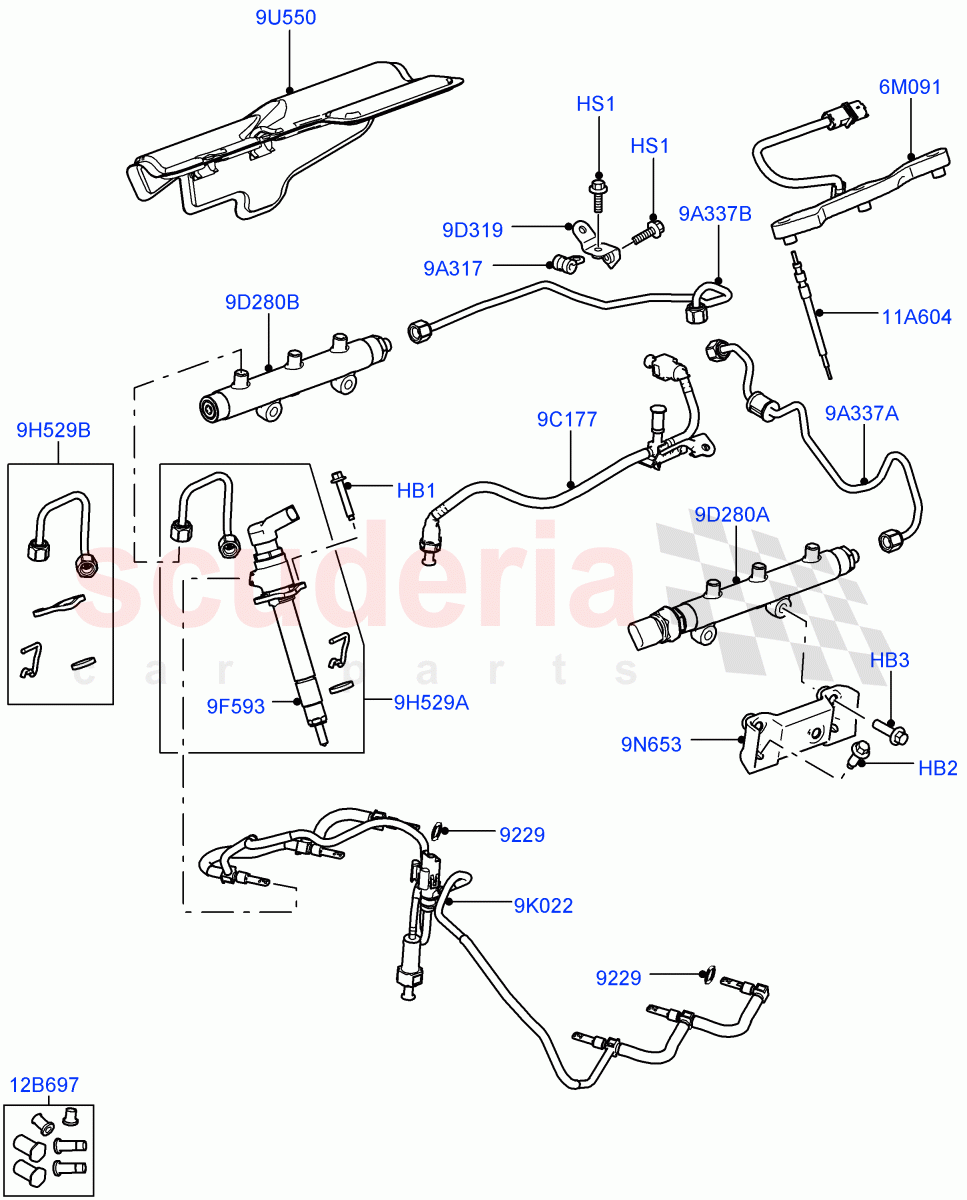

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1387730	BOLT	Enquire	To Order
	LR032108	BOLT - FUEL INJECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6726723	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1372612	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106201	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR019118	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007521	WIRE - GLOW PLUG	Enquire	To Order
	LR007522	WIRE - GLOW PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002751	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005687	PIPE - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR014362	BRACKET	Enquire	To Order
	1336528	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006496	NOZZLE AND HOLDER - FUEL INJECTOR	Enquire	To Order
	LR008837	NOZZLE AND HOLDER - FUEL INJECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1386505	TUBE - INJECTION PUMP LEAK-OFF	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1336504	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LBH500250	INSULATOR	Enquire	To Order
	LBH500230	INSULATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1354289	GLOW PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010347	KIT - PROTECTION CAPS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004714	TUBE - FUEL SUPPLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004715	TUBE - FUEL SUPPLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR020020	MANIFOLD - FUEL SUPPLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR020021	MANIFOLD - FUEL SUPPLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004563	KIT - FUEL INJECTION	Enquire	To Order
	LR004564	KIT - FUEL INJECTION	Enquire	To Order
	LR004565	KIT - FUEL INJECTION	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR004566	KIT - FUEL INJECTION	Enquire	To Order
	LR004567	KIT - FUEL INJECTION	Enquire	To Order
	LR004568	KIT - FUEL INJECTION	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	1387730	BOLT	1387730 BOLT M6 x 35MM, To Fuel Injectors / From: AA000001 / To: AA999999	-	12	Enquire
HB1	LR032108	BOLT - FUEL INJECTOR	LR032108 BOLT - FUEL INJECTOR M6 x 35MM, To Fuel Injectors / From: BA000001	-	12	Enquire
HB2	6726723	BOLT - HEX.HEAD	6726723 BOLT - HEX.HEAD Bracket, M8 X 20MM / From: AA000001	-	4	Enquire
HB3	1372612	SCREW	1372612 SCREW Bracket, M8 x 30MM / From: AA000001	-	4	Enquire
HS1	FS106201	Screw	FS106201 Screw Bracket, Fuel Lines To Fuel Rail, M6 X 20MM / From: AA000001	-	4	Enquire
6M091	LR007521	WIRE - GLOW PLUG	LR007521 WIRE - GLOW PLUG LH / From: AA000001	-	1	Enquire
6M091	LR007522	WIRE - GLOW PLUG	LR007522 WIRE - GLOW PLUG RH / From: AA000001	-	1	Enquire
9A317	LR002751	CLIP	LR002751 CLIP Fuel Lines To Fuel Rail / From: AA000001	-	2	Enquire
9A337A	LR004714	TUBE - FUEL SUPPLY	LR004714 TUBE - FUEL SUPPLY LH / From: AA000001	-	1	Enquire
9A337B	LR004715	TUBE - FUEL SUPPLY	LR004715 TUBE - FUEL SUPPLY RH / From: AA000001	-	1	Enquire
9C177	LR005687	PIPE - FUEL	LR005687 PIPE - FUEL From: AA000001	-	1	Enquire
9D280A	LR020020	MANIFOLD - FUEL SUPPLY	LR020020 MANIFOLD - FUEL SUPPLY LH, Includes Fuel Pressure Sensor / From: AA000001	-	1	Enquire
9D280B	LR020021	MANIFOLD - FUEL SUPPLY	LR020021 MANIFOLD - FUEL SUPPLY RH / From: AA000001	-	1	Enquire
9D319	LR014362	BRACKET	LR014362 BRACKET LH, Fuel Lines To Fuel Rail / From: AA000001	-	1	Enquire
9D319	1336528	BRACKET	1336528 BRACKET RH, Fuel Lines To Fuel Rail / From: AA000001	-	1	Enquire
9F593	LR006496	NOZZLE AND HOLDER - FUEL INJECTOR	LR006496 NOZZLE AND HOLDER - FUEL INJECTOR New Part-Please Check For Reman Version / From: AA000001	-	6	Enquire
9F593	LR008837	NOZZLE AND HOLDER - FUEL INJECTOR	LR008837 NOZZLE AND HOLDER - FUEL INJECTOR Fuel Injector Only, Remanufactured Part / From: AA000001	-	6	Enquire
9H529A	LR004563	KIT - FUEL INJECTION	LR004563 KIT - FUEL INJECTION Cylinder No.1, Cylinder No.6, New Part-Please Check For Reman Version / From: AA000001	-	2	Enquire
9H529A	LR004564	KIT - FUEL INJECTION	LR004564 KIT - FUEL INJECTION Cylinder No.2, Cylinder No.5, New Part-Please Check For Reman Version / From: AA000001	-	2	Enquire
9H529A	LR004565	KIT - FUEL INJECTION	LR004565 KIT - FUEL INJECTION Cylinder No.3, Cylinder No.4, New Part-Please Check For Reman Version / From: AA000001	-	2	Enquire
9H529A	LR010129	KIT - FUEL INJECTION	LR010129 KIT - FUEL INJECTION Cylinder No.1, Cylinder No.6, Remanufactured Part / From: AA000001	-	2	Enquire
9H529A	LR010130	KIT - FUEL INJECTION	LR010130 KIT - FUEL INJECTION Cylinder No.2, Cylinder No.5, Remanufactured Part / From: AA000001	-	2	Enquire
9H529A	LR010131	KIT - FUEL INJECTION	LR010131 KIT - FUEL INJECTION Cylinder No.3, Cylinder No.4, Remanufactured Part / From: AA000001	-	2	Enquire
9H529B	LR004566	KIT - FUEL INJECTION	LR004566 KIT - FUEL INJECTION Cylinder No.1, Cylinder No.6 / From: AA000001	-	2	Enquire
9H529B	LR004567	KIT - FUEL INJECTION	LR004567 KIT - FUEL INJECTION Cylinder No.2, Cylinder No.5 / From: AA000001	-	2	Enquire
9H529B	LR004568	KIT - FUEL INJECTION	LR004568 KIT - FUEL INJECTION Cylinder No.3, Cylinder No.4 / From: AA000001	-	2	Enquire
9K022	1386505	TUBE - INJECTION PUMP LEAK-OFF	1386505 TUBE - INJECTION PUMP LEAK-OFF Includes Fuel Temperature Sensor, Leak Off / From: AA000001	-	1	Enquire
9N653	1336504	BRACKET	1336504 BRACKET Fuel Rail / From: AA000001	-	2	Enquire
9U550	LBH500250	INSULATOR	LBH500250 INSULATOR RH / From: AA000001	-	1	Enquire
9U550	LBH500230	INSULATOR	LBH500230 INSULATOR LH / From: AA000001	-	1	Enquire
11A604	1354289	GLOW PLUG	1354289 GLOW PLUG From: AA000001	-	6	Enquire
12B697	LR010347	KIT - PROTECTION CAPS	LR010347 KIT - PROTECTION CAPS Protection Cap Kit For Disassembled Fuel Injection Elements / From: AA000001	-	1	Enquire
9229	LR019118	O-RING	LR019118 O-RING For Fuel Tube, Leak Off / From: AA000001	-	6	Enquire
