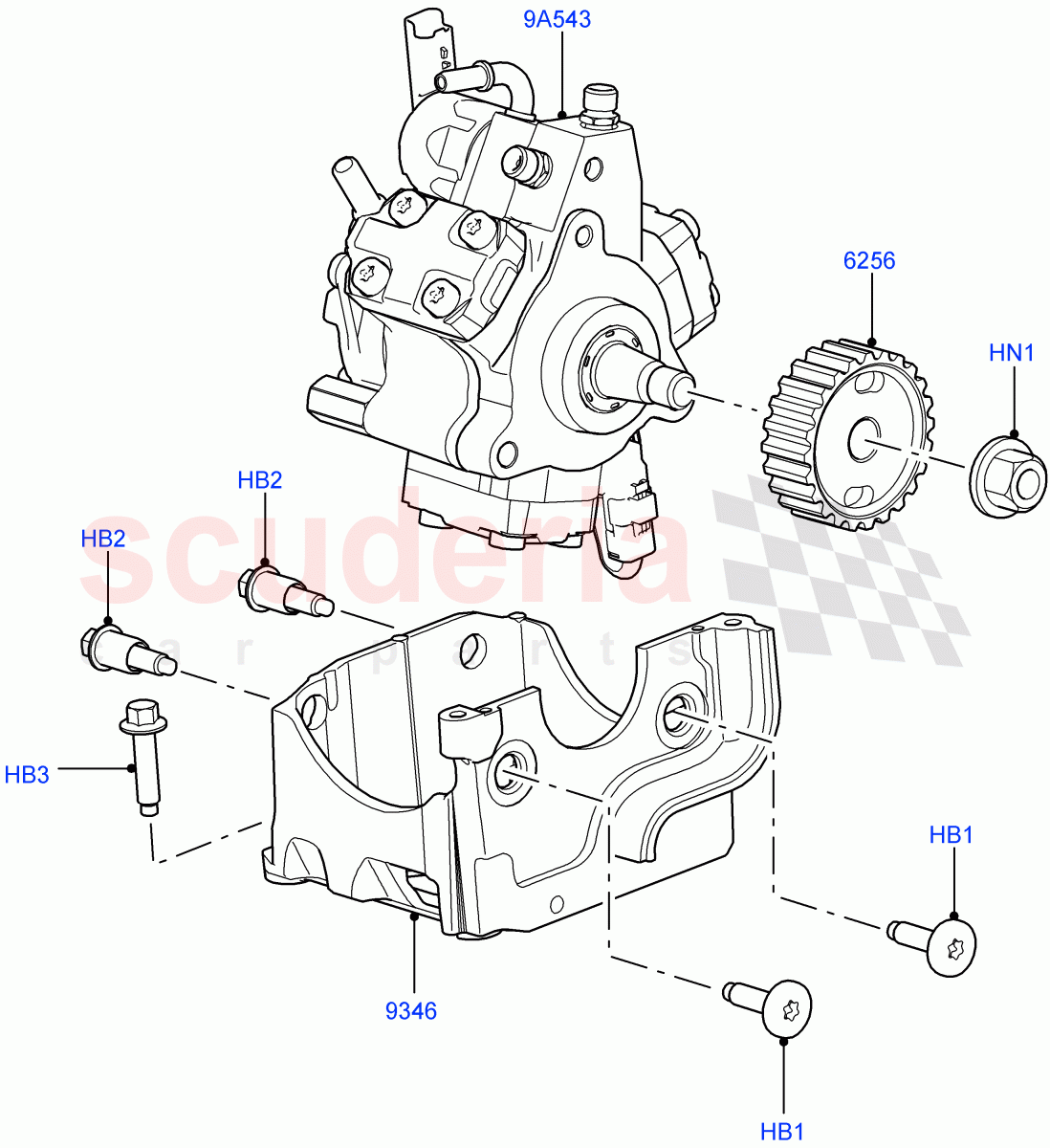

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR004693	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR008150	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000300	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002806	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003788	SPROCKET - CAMSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004569	BRACKET	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR004693	BOLT	LR004693 BOLT For Fuel Pump, M8 X 22MM, Torx / From: AA000001	-	2	Enquire
HB2	LR008150	BOLT	LR008150 BOLT Bolt And Washer, M8 X 30, With Bushings / From: AA000001	-	1	Enquire
HB3	LR000300	BOLT	LR000300 BOLT M8 X 30 / From: AA000001	-	4	Enquire
HN1	LR002806	NUT	LR002806 NUT M14 / From: AA000001	-	1	Enquire
9A543	LR017367	PUMP - FUEL INJECTION	LR017367 PUMP - FUEL INJECTION New Part-Please Check For Reman Version / From: AA000001	-	1	Enquire
9A543	LR049606	PUMP - FUEL INJECTION	LR049606 PUMP - FUEL INJECTION Remanufactured Part / From: AA000001	-	1	Enquire
6256	LR003788	SPROCKET - CAMSHAFT	LR003788 SPROCKET - CAMSHAFT Fuel Pump Gear / From: AA000001	-	1	Enquire
9346	LR004569	BRACKET	LR004569 BRACKET From: AA000001	-	1	Enquire
