Name: Inlet Manifold (Lion Diesel 2.7 V6 (140KW)) ((V) FROMAA000001)
Rating: 5.0 (1 reviews)

View All

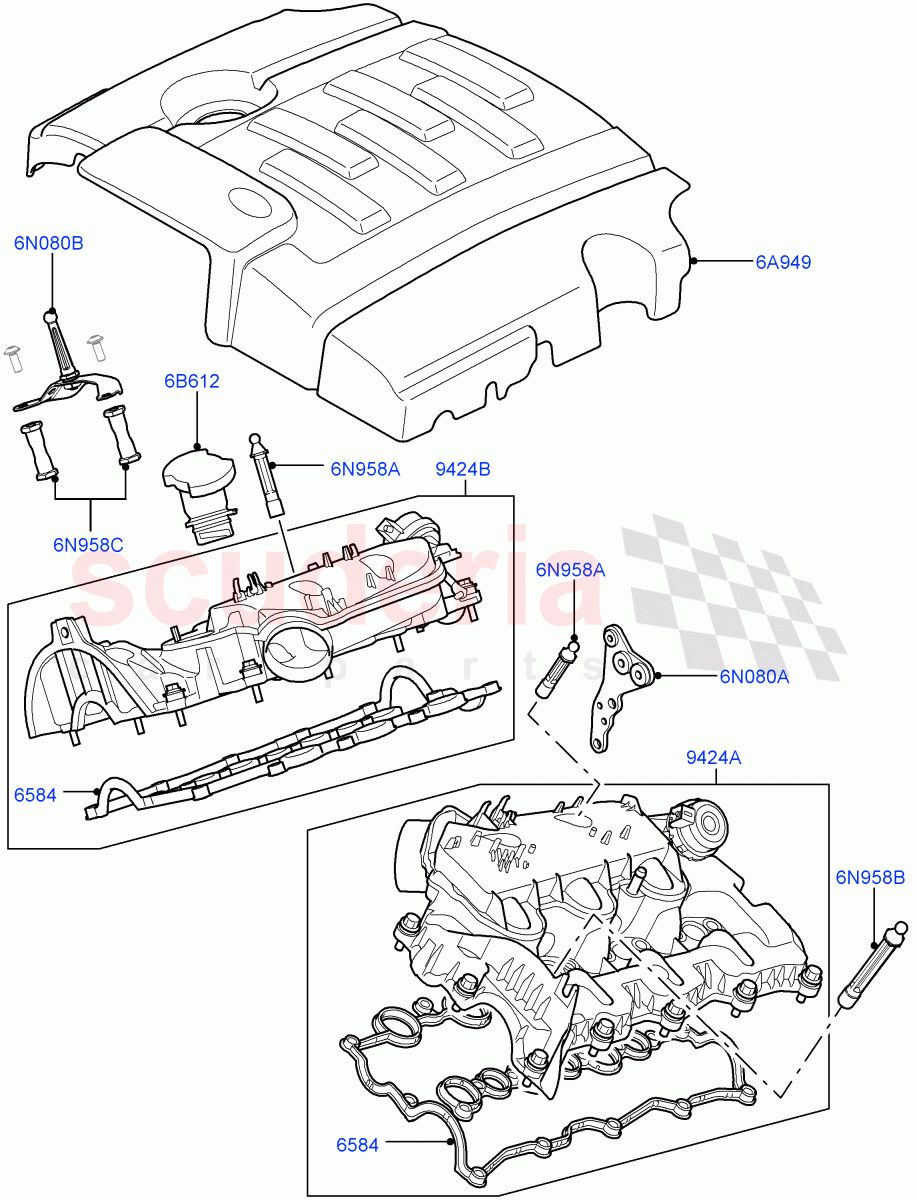

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR013662	COVER	$362.60	To Order

Photo	Part No	Description	Price (each)	Stock
	LR032723	MANIFOLD - INLET	$285.96	To Order

Photo	Part No	Description	Price (each)	Stock
	LR032724	MANIFOLD - INLET	$280.74	To Order

Photo	Part No	Description	Price (each)	Stock
	1346479	BRACKET	$73.52	To Order

Photo	Part No	Description	Price (each)	Stock
	LR122398	BRACKET - ENGINE COVER	$8.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LBG500030	STUD - ENGINE COVER	$4.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR016839	STUD - BALL	$4.73	To Order

Photo	Part No	Description	Price (each)	Stock
	4611570	STUD - ENGINE COVER	$8.39	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
6A949	LR013662	COVER	LR013662 COVER Engine / From: AA000001	$362.60	1
6B612	LR053016	PIPE - OIL FEED IN STOCK	LR053016 PIPE - OIL FEED Land Rover Print / From: AA000001 / To: AA999999 IN STOCK	$38.63	1
6B612	LR053016	PIPE - OIL FEED IN STOCK	LR053016 PIPE - OIL FEED Jaguar And Land Rover Print, Service Only / From: BA000001 / To: CA645071 IN STOCK	$38.63	1
6B612	LR053016	PIPE - OIL FEED IN STOCK	LR053016 PIPE - OIL FEED Jaguar And Land Rover Print, Service Only / From: CA645072 IN STOCK	$38.63	1
6N080A	1346479	BRACKET	1346479 BRACKET From: AA000001	$73.52	1
6N080B	LR122398	BRACKET - ENGINE COVER	LR122398 BRACKET - ENGINE COVER Engine Cover / From: AA000001	$8.94	1
6N958A	LBG500030	STUD - ENGINE COVER	LBG500030 STUD - ENGINE COVER Short / From: AA000001	$4.74	2
6N958B	LR016839	STUD - BALL	LR016839 STUD - BALL From: AA000001	$4.73	1
6N958C	4611570	STUD - ENGINE COVER	4611570 STUD - ENGINE COVER From: AA000001	$8.39	2
6584	LR166341	GASKET - CAMSHAFT COVER	LR166341 GASKET - CAMSHAFT COVER Cam Cover To Cylinder Head Joint / From: AA000001 / To: BA568562	$32.61	2
6584	LR166341	GASKET - CAMSHAFT COVER	LR166341 GASKET - CAMSHAFT COVER Cam Cover To Cylinder Head Joint / From: BA568563	$32.61	2
9424A	LR032723	MANIFOLD - INLET	LR032723 MANIFOLD - INLET LH / From: AA000001	$285.96	1
9424B	LR032724	MANIFOLD - INLET	LR032724 MANIFOLD - INLET RH / From: AA000001	$280.74	1

Inlet Manifold (Lion Diesel 2.7 V6 (140Kw)) ((V) Fromaa000001)

Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6]
