Cylinder Head (Lion Diesel 2.7 V6 (140KW)) ((V) FROMAA000001) of Land Rover Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6]

View All

Land Rover Discovery 4 (2010-2016) [2.7 Diesel V6] - Cylinder Head (Lion Diesel 2.7 V6 (140KW)) ((V) FROMAA000001)

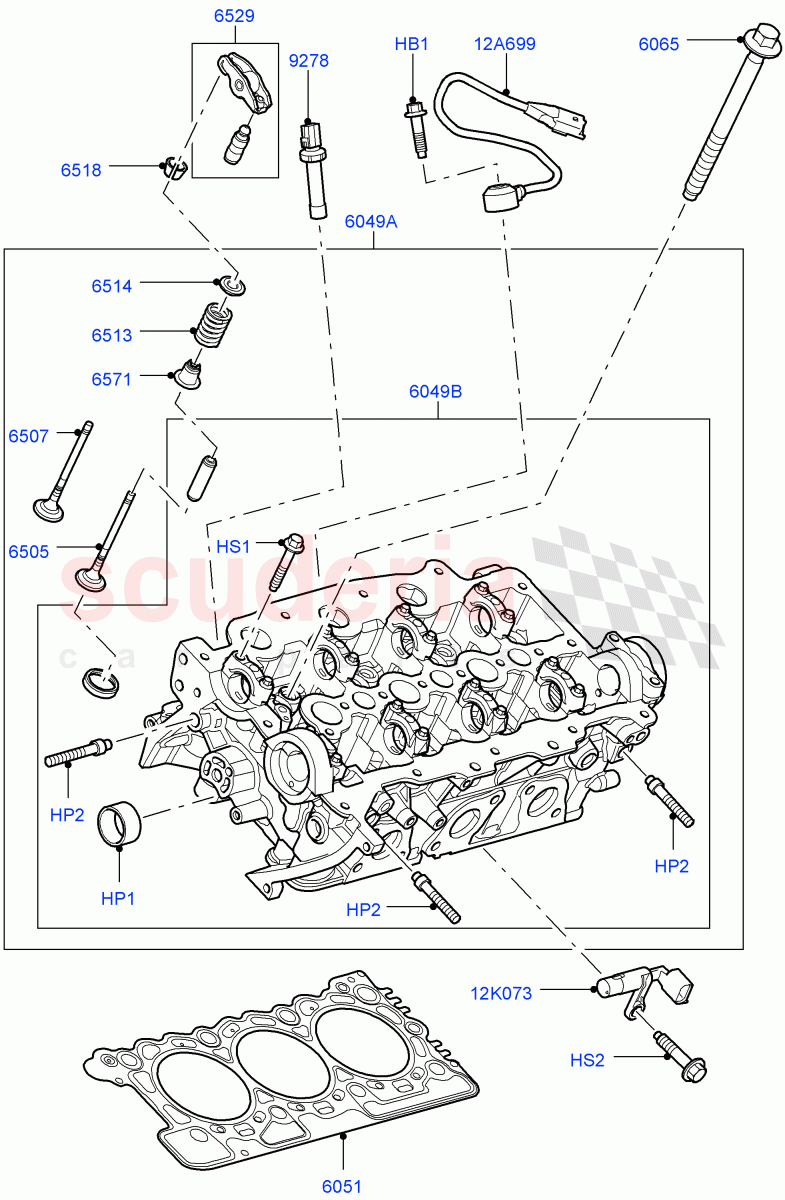

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR000300	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1102774	PLUG - ENGINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4185951	PLUG - EXPANSION	Enquire	To Order
	LR029603	PLUG - EXPANSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7062845	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500220	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1348677	GASKET-CYLINDER HEAD	Enquire	To Order
	LR009719	GASKET - CYLINDER HEAD	Enquire	To Order
	LR009721	GASKET - CYLINDER HEAD	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1331316	BOLT - CYLINDER HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR008130	VALVE - EXHAUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1311281	VALVE - INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006720	SPRING - VALVE	Enquire	To Order
	LR071681	SPRING - VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1311283	RETAINER - VALVE SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1072051	COLLET - VALVE SPRING RETAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1336545	ARM - FOLLOWER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1311285	SEAL - VALVE STEM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1316119	SWITCH - OIL PRESSURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1311302	CYLINDER HEAD	Enquire	To Order
	1311303	CYLINDER HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012732	CYLINDER HEAD	Enquire	To Order
	LR012733	CYLINDER HEAD	Enquire	To Order
	LR034017	CYLINDER HEAD	Enquire	To Order

...and 6 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR007808	SENSOR - ENGINE KNOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR019287	SENSOR - CAMSHAFT POSITION	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR000300	BOLT	LR000300 BOLT knock sensor, M8 X 30 / From: AA000001	-	2	Enquire
HP1	1102774	PLUG - ENGINE	1102774 PLUG - ENGINE 22MM / From: AA000001	-	4	Enquire
HP2	4185951	PLUG - EXPANSION	4185951 PLUG - EXPANSION O = 10MM / From: AA000001 / To: AA999999	-	7	Enquire
HP2	LR029603	PLUG - EXPANSION	LR029603 PLUG - EXPANSION O = 10MM / From: BA000001	-	7	Enquire
HS1	7062845	SCREW	7062845 SCREW M6 x 35MM / From: AA000001	-	36	Enquire
HS2	RYG500220	SCREW	RYG500220 SCREW Camshaft Position Sensor, Hexagonal Head, M6 X 20MM / From: AA000001	-	2	Enquire
12A699	LR007808	SENSOR - ENGINE KNOCK	LR007808 SENSOR - ENGINE KNOCK EU2 / From: AA000001	-	2	Enquire
12K073	LR019287	SENSOR - CAMSHAFT POSITION	LR019287 SENSOR - CAMSHAFT POSITION Camshaft Position Sensor / From: AA000001	-	2	Enquire
6049A	1311302	CYLINDER HEAD	1311302 CYLINDER HEAD RH, With Valves / From: AA000001	-	1	Enquire
6049A	1311303	CYLINDER HEAD	1311303 CYLINDER HEAD LH, With Valves / From: AA000001	-	1	Enquire
6049B	LR012732	CYLINDER HEAD	LR012732 CYLINDER HEAD RH, Less Valves / From: AA000001 / To: CA615752	-	1	Enquire
6049B	LR012733	CYLINDER HEAD	LR012733 CYLINDER HEAD LH, Less Valves / From: AA000001 / To: CA615752	-	1	Enquire
6049B	LR034017	CYLINDER HEAD	LR034017 CYLINDER HEAD RH, Less Valves / From: CA615753 / To: CA632230	-	1	Enquire
6049B	LR034015	CYLINDER HEAD	LR034015 CYLINDER HEAD LH, Less Valves / From: CA615753 / To: CA632230	-	1	Enquire
6049B	LR038745	Cylinder Head	LR038745 Cylinder Head RH, Less Valves / From: CA632231 / To: CA634165	-	1	Enquire
6049B	LR038746	Cylinder Head	LR038746 Cylinder Head LH, Less Valves / From: CA632231 / To: CA634165	-	1	Enquire
6049B	LR054815	CYLINDER HEAD	LR054815 CYLINDER HEAD RH, Less Valves / From: CA634166	-	1	Enquire
6049B	LR054816	CYLINDER HEAD	LR054816 CYLINDER HEAD LH, Less Valves / From: CA634166 / To: CA639715	-	1	Enquire
6049B	LR087727	CYLINDER HEAD	LR087727 CYLINDER HEAD LH, Less Valves / From: CA639716	-	1	Enquire
6051	1348677	GASKET-CYLINDER HEAD	1348677 GASKET-CYLINDER HEAD Grade 1 / From: AA000001	-	-	Enquire
6051	LR009719	GASKET - CYLINDER HEAD	LR009719 GASKET - CYLINDER HEAD Grade 2 / From: AA000001	-	-	Enquire
6051	LR009721	GASKET - CYLINDER HEAD	LR009721 GASKET - CYLINDER HEAD Grade 3 / From: AA000001	-	-	Enquire
6051	LR009722	GASKET - CYLINDER HEAD	LR009722 GASKET - CYLINDER HEAD Grade 4 / From: AA000001	-	-	Enquire
6051	LR009723	GASKET-CYLINDER HEAD	LR009723 GASKET-CYLINDER HEAD Grade 5 / From: AA000001	-	-	Enquire
6065	1331316	BOLT - CYLINDER HEAD	1331316 BOLT - CYLINDER HEAD M13 X 155 / From: AA000001	-	16	Enquire
6505	LR008130	VALVE - EXHAUST	LR008130 VALVE - EXHAUST From: AA000001	-	12	Enquire
6507	1311281	VALVE - INLET	1311281 VALVE - INLET From: AA000001	-	12	Enquire
6513	LR006720	SPRING - VALVE	LR006720 SPRING - VALVE From: AA000001 / To: AA999999	-	24	Enquire
6513	LR071681	SPRING - VALVE	LR071681 SPRING - VALVE From: BA000001	-	24	Enquire
6514	1311283	RETAINER - VALVE SPRING	1311283 RETAINER - VALVE SPRING From: AA000001	-	24	Enquire
6518	1072051	COLLET - VALVE SPRING RETAINER	1072051 COLLET - VALVE SPRING RETAINER From: AA000001	-	48	Enquire
6529	1336545	ARM - FOLLOWER	1336545 ARM - FOLLOWER From: AA000001	-	24	Enquire
6571	1311285	SEAL - VALVE STEM	1311285 SEAL - VALVE STEM From: AA000001	-	24	Enquire
9278	1316119	SWITCH - OIL PRESSURE	1316119 SWITCH - OIL PRESSURE From: AA000001	-	1	Enquire
