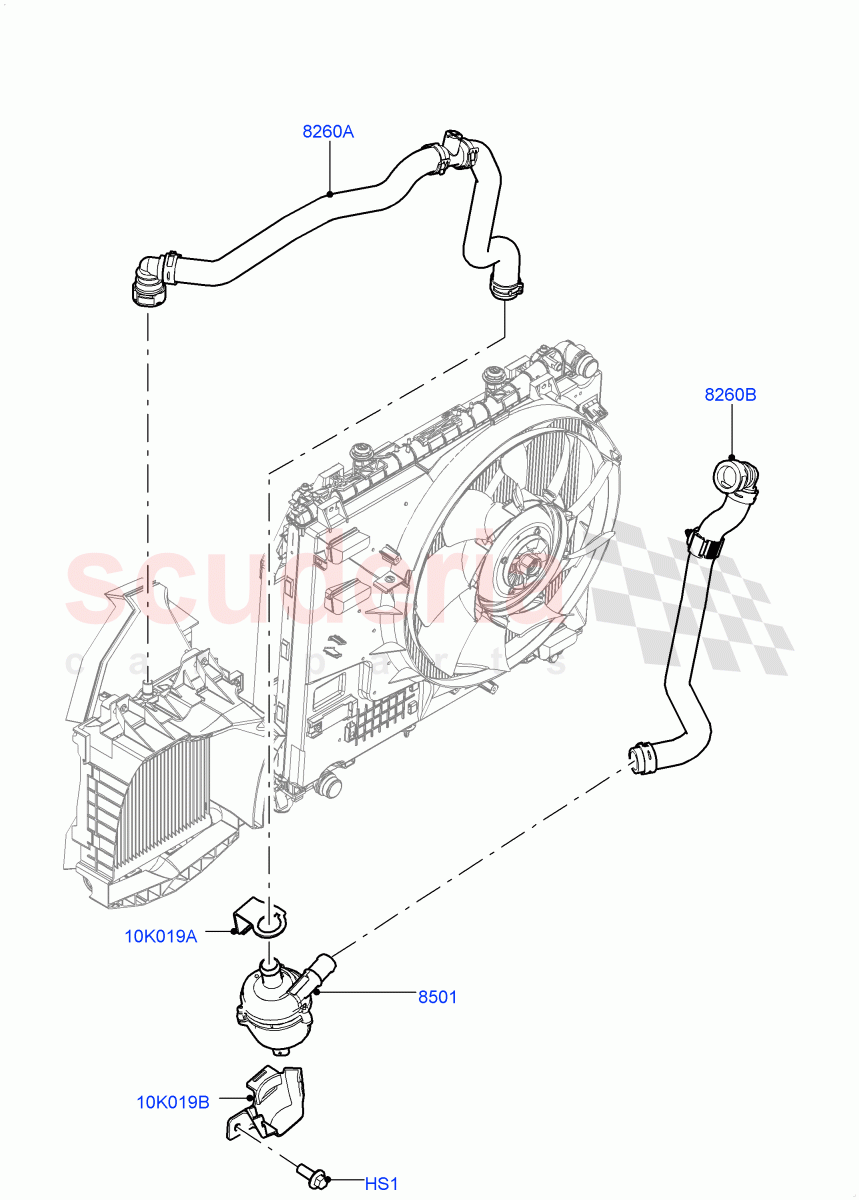

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS106166	SCREW	$1.19	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR067228	PUMP - WATER	$287.57	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062460	HOSE - RADIATOR	$90.48	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062459	HOSE - WATER	$74.67	To Order

Photo	Part No	Description	Price (each)	Stock
	LR068265	BRACKET - PUMP SUPPORT	$22.56	To Order

Photo	Part No	Description	Price (each)	Stock
	LR066172	BRACKET - PUMP SUPPORT	$20.04	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HS1	FS106166	SCREW IN STOCK	FS106166 SCREW Hexagonal Head, M6 X 16MM / From: K2000001 IN STOCK	$1.19	1
10K019A	LR068265	BRACKET - PUMP SUPPORT	LR068265 BRACKET - PUMP SUPPORT Top / From: K2000001	$22.56	1
10K019B	LR066172	BRACKET - PUMP SUPPORT	LR066172 BRACKET - PUMP SUPPORT Bottom / From: K2000001	$20.04	1
8260A	LR062460	HOSE - RADIATOR	LR062460 HOSE - RADIATOR Inlet, Water Pump / From: K2000001	$90.48	1
8260B	LR062459	HOSE - WATER	LR062459 HOSE - WATER Outlet, Water Pump / From: K2000001	$74.67	1
8501	LR067228	PUMP - WATER	LR067228 PUMP - WATER From: K2000001	$287.57	1
