Cooling System Pipes And Hoses (Nitra Plant Build) (3.0L Dohc Gdi Sc V6 Petrol, Active Tranmission...

Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol]

Find Your Part

Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol] - Cooling System Pipes And Hoses (Nitra Plant Build) (3.0L DOHC GDI SC V6 PETROL, Active Tranmission...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR000053 NUT - FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
RYG500900 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR100080 HOSE - WATER Enquire To Order
LR126010 HOSE - WATER Enquire To Order
LR139053 HOSE - WATER Enquire To Order
Photo Part No Description Price (each) Stock
LR146301 HOSE - RADIATOR TO ENGINE VENT ELBOW Enquire To Order
LR146301 HOSE - RADIATOR TO ENGINE VENT ELBOW Enquire To Order
Photo Part No Description Price (each) Stock
LR100082 HOSE - RADIATOR Enquire To Order
Photo Part No Description Price (each) Stock
LR100074 HOSE - OIL COOLER Enquire To Order
Photo Part No Description Price (each) Stock
LR100076 HOSE - OIL COOLER Enquire To Order
Photo Part No Description Price (each) Stock
LR113132 HOSE - RADIATOR Enquire To Order
Photo Part No Description Price (each) Stock
LR100131 HOSE - WATER Enquire To Order
Photo Part No Description Price (each) Stock
LR099967 HOSE - HEATER WATER Enquire To Order
Photo Part No Description Price (each) Stock
LR035630 HOSE - RADIATOR VENTILATION Enquire To Order
Photo Part No Description Price (each) Stock
LR041442 SENSOR - ENGINE COOLANT TEMPERATURE Enquire To Order
Photo Part No Description Price (each) Stock
LR113144 VALVE - COOLANT FLOW CONTROL Enquire To Order
Photo Part No Description Price (each) Stock
LR139053 HOSE - WATER Enquire To Order
View All

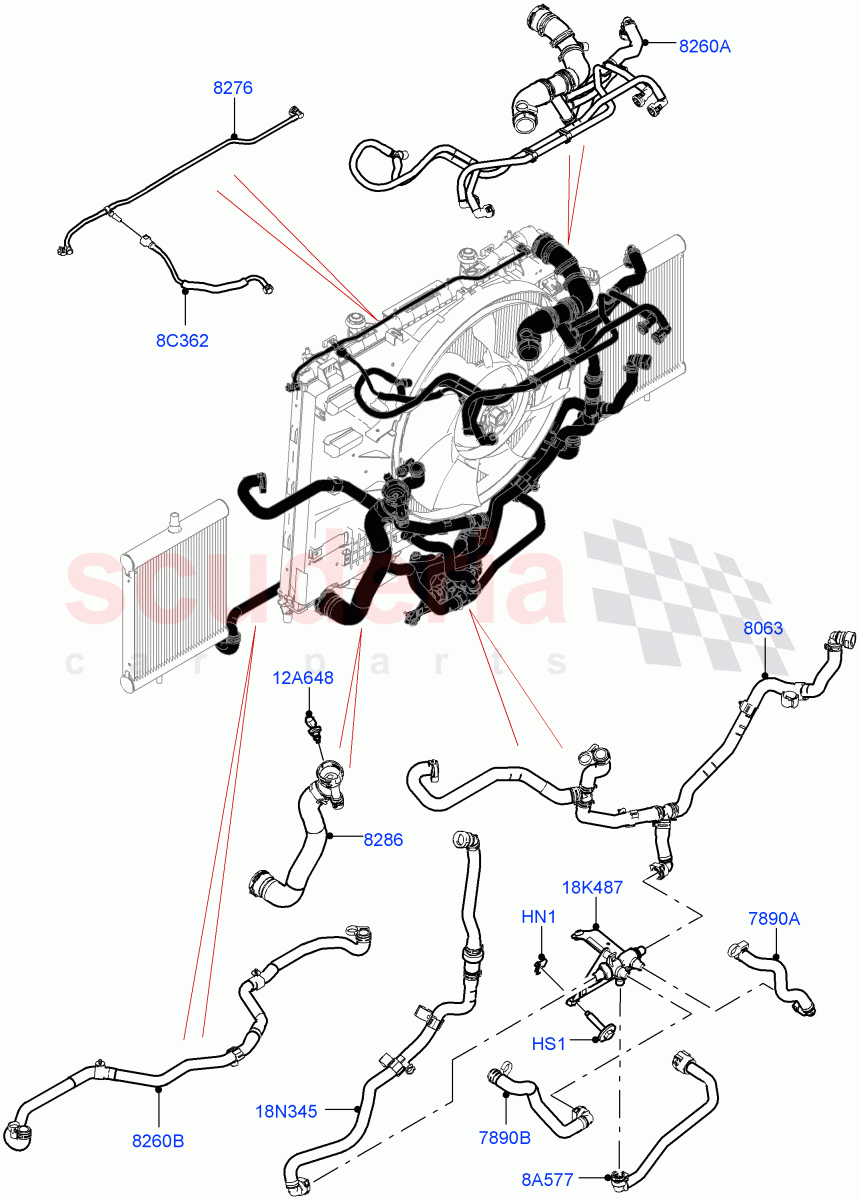

Cooling System Pipes And Hoses (Nitra Plant Build) (3.0L DOHC GDI SC V6 PETROL, Active Tranmission Warming) ((V) FROMK2000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 LR000053
NUT - FLANGED
M6 / From: K2000001 		- 2 Enquire
HS1 RYG500900
SCREW
Bolt And Washer, Hexagonal Head, M6X30 / From: K2000001 		- 3 Enquire
8A577 LR099967
HOSE - HEATER WATER
Valve To Low Temperature Radiator / From: K2000001 		- 1 Enquire
8C362 LR035630
HOSE - RADIATOR VENTILATION
Engine Degas Line / From: K2000001 		- 1 Enquire
12A648 LR041442
SENSOR - ENGINE COOLANT TEMPERATURE
From: K2000001 		- 1 Enquire
18K487 LR113144
VALVE - COOLANT FLOW CONTROL
From: K2000001 		- 1 Enquire
18N345 LR139053
HOSE - WATER
Heater Water Control / From: K2000001 		- 1 Enquire
7890A LR100074
HOSE - OIL COOLER
Inlet / From: K2000001 		- 1 Enquire
7890B LR100076
HOSE - OIL COOLER
Outlet / From: K2000001 		- 1 Enquire
8063 LR100080
HOSE - WATER
Engine To Radiator Supply Tank / From: K2000001 / To: K2407347 		- 1 Enquire
8063 LR126010
HOSE - WATER
Engine To Radiator Supply Tank / From: K2407348 / To: L2437599 		- 1 Enquire
8063 LR139053
HOSE - WATER
Engine To Radiator Supply Tank / From: L2437600 		- 1 Enquire
8260A LR113132
HOSE - RADIATOR
Radiator, Upper / From: K2000001 		- 1 Enquire
8260B LR100131
HOSE - WATER
Auxiliary Radiator / From: K2000001 		- 1 Enquire
8276 LR146301
HOSE - RADIATOR TO ENGINE VENT ELBOW
Radiator Degas Line / From: K2000001 / To: L2446725 		- 1 Enquire
8276 LR146301
HOSE - RADIATOR TO ENGINE VENT ELBOW
Radiator Degas Line / From: L2446726 		- 1 Enquire
8286 LR100082
HOSE - RADIATOR
Lower, Radiator / From: K2000001 		- 1 Enquire
