Heater Hoses (Nitra Plant Build) (3.0L Aj20D6 Diesel High, With Ptc Heater, With Air Conditioning -...

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Petrol AJ20P6]

Find Your Part

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Petrol AJ20P6] - Heater Hoses (Nitra Plant Build) (3.0L AJ20D6 Diesel High, With Ptc Heater, With Air Conditioning -...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR009266 BOLT M6 X 24 Enquire To Order
Photo Part No Description Price (each) Stock
RYG500800 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
FYP500550 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR137494 PUMP - WATER Enquire To Order
LR148083 PUMP - WATER Enquire To Order
Photo Part No Description Price (each) Stock
LR133941 PLUG - BLANKING Enquire To Order
LR148063 PLUG - BLANKING Enquire To Order
Photo Part No Description Price (each) Stock
LR125227 TUBE - HEATER WATER Enquire To Order
Photo Part No Description Price (each) Stock
LR134992 BRACKET - PUMP SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
LR125239 HOSE - WATER Enquire To Order
View All

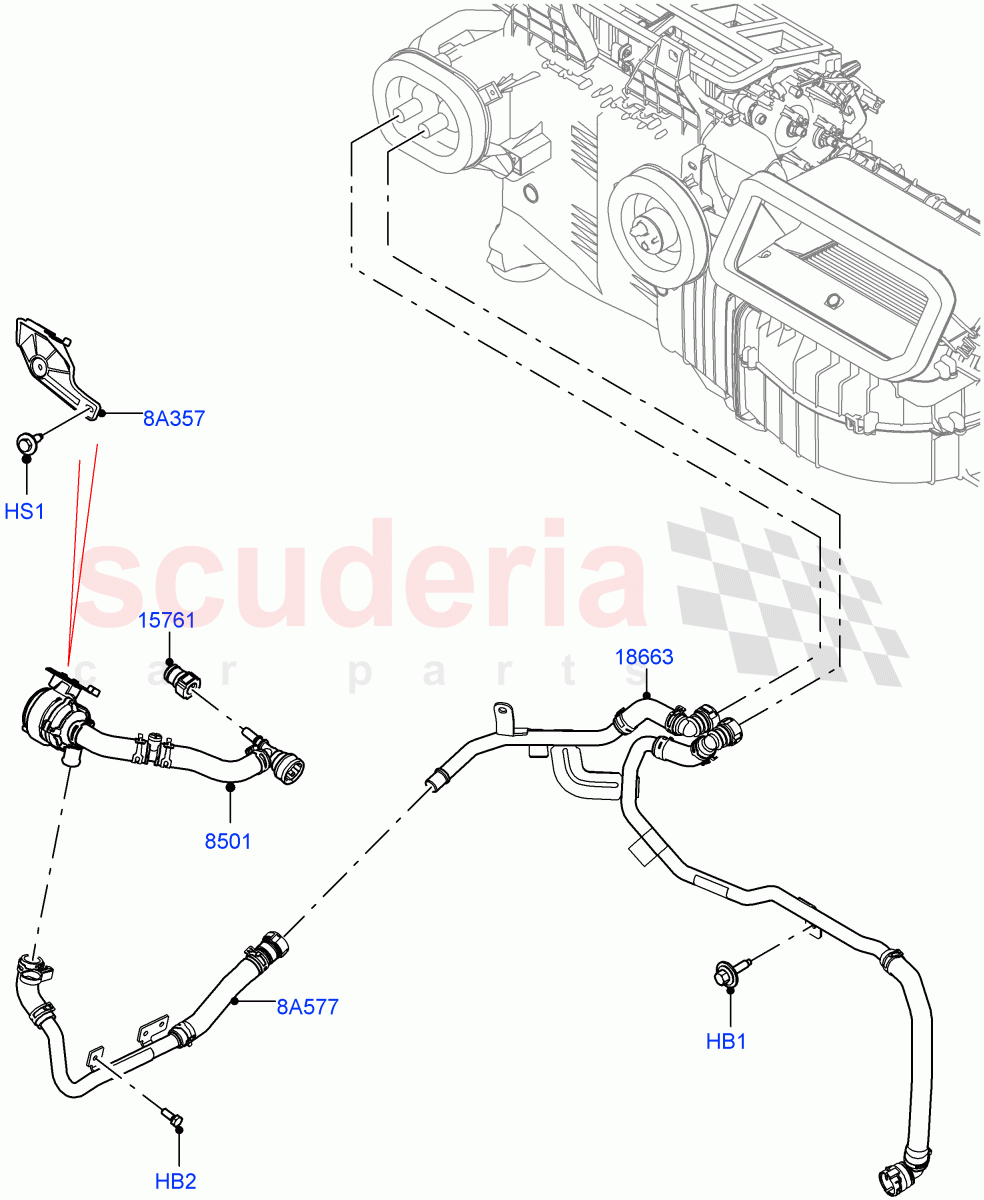

Heater Hoses (Nitra Plant Build) (3.0L AJ20D6 Diesel High, With Ptc Heater, With Air Conditioning - Front/Rear, With Front Comfort Air Con (IHKA), Less Heater) ((V) FROMM2000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Petrol AJ20P6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR009266
BOLT M6 X 24
Bolt And Washer, Hexagonal Head, M6 X 24MM / From: M2000001 		- 3 Enquire
HB2 RYG500800
BOLT
Hexagonal Head, M6 X 16MM / From: M2000001 		- 2 Enquire
HS1 FYP500550
SCREW
Hexagonal Head, M6 X 20MM / From: M2000001 		- 2 Enquire
8A357 LR134992
BRACKET - PUMP SUPPORT
Water Pump / From: M2000001 		- 1 Enquire
8A577 LR125239
HOSE - WATER
From: M2000001 		- 1 Enquire
8501 LR137494
PUMP - WATER
With Hose / From: M2000001 / To: N2457014 		- 1 Enquire
8501 LR148083
PUMP - WATER
With Hose / From: N2457015 		- 1 Enquire
15761 LR133941
PLUG - BLANKING
From: M2000001 / To: N2457014 		- 1 Enquire
15761 LR148063
PLUG - BLANKING
From: N2457015 		- 1 Enquire
18663 LR125227
TUBE - HEATER WATER
From: M2000001 		- 1 Enquire
