Air Conditioning Condensr/Compressr (Nitra Plant Build, Front) (3.0L Aj20P6 Petrol High) ((V)...

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Petrol AJ20P6]

Find Your Part

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Petrol AJ20P6] - Air Conditioning Condensr/Compressr (Nitra Plant Build, Front) (3.0L AJ20P6 Petrol High) ((V)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS108256 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR005074 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
FB108076 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
LR054870 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
LR054871 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
LR044466 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
LR018707 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
FS106166 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR137975 CONDENSER Enquire To Order
Photo Part No Description Price (each) Stock
LR035505 BRACKET - A/C PIPE Enquire To Order
Photo Part No Description Price (each) Stock
LR062331 BRACKET - RADIATOR Enquire To Order
Photo Part No Description Price (each) Stock
LR086926 SENSOR - REFRIGERANT PRESSURE Enquire To Order
Photo Part No Description Price (each) Stock
LR142121 HOSE - AIR CONDITIONING Enquire To Order
Photo Part No Description Price (each) Stock
LR141720 COMPRESSOR - AIR CONDITIONING Enquire To Order
LR159435 COMPRESSOR - AIR CONDITIONING Enquire To Order
Photo Part No Description Price (each) Stock
LR123056 BRACKET - COMPRESSOR Enquire To Order
Photo Part No Description Price (each) Stock
LR122305 WASHER - SEALING Enquire To Order
Photo Part No Description Price (each) Stock
LR122304 WASHER - SEALING Enquire To Order
Photo Part No Description Price (each) Stock
LR142112 TUBE - COMPRESSOR DELIVERY Enquire To Order
Photo Part No Description Price (each) Stock
LR141980 TUBE - COMPRESSOR LINE Enquire To Order
View All

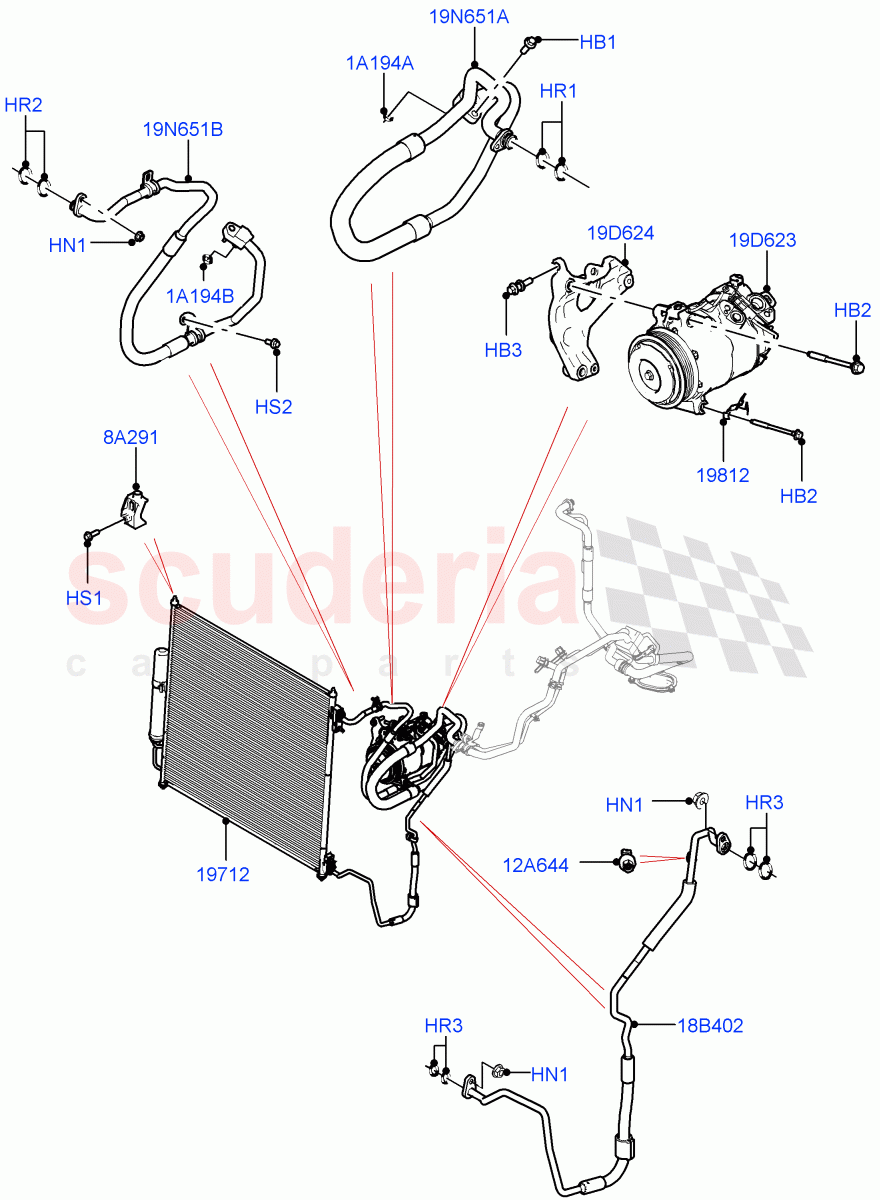

Air Conditioning Condensr/Compressr (Nitra Plant Build, Front) (3.0L AJ20P6 Petrol High) ((V) FROMM2000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Petrol AJ20P6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS108256
BOLT
Hexagonal Head, M8 X 25MM / From: M2000001 		- 1 Enquire
HB2 LR005074
BOLT
Hexagonal Head, M8 X 96.5 / From: M2000001 		- 3 Enquire
HB3 FB108076
BOLT
M8 X 35MM / From: M2000001 		- 4 Enquire
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6 / From: M2000001 		- 3 Enquire
HR1 LR054870
O-RING
16.5 X 1.78MM / From: M2000001 		- 2 Enquire
HR2 LR054871
O-RING
10.82MM X 1.78MM / From: M2000001 		- 2 Enquire
HR3 LR044466
O-RING
7.65 X 1.78 / From: M2000001 		- 4 Enquire
HS1 LR018707
SCREW
6X20, Hexagonal Head / From: M2000001 		- 2 Enquire
HS2 FS106166
SCREW
Hexagonal Head, M6 X 16MM / From: M2000001 		- 2 Enquire
1A194A LR122305
WASHER - SEALING
19.05 MM / From: M2000001 		- 1 Enquire
1A194B LR122304
WASHER - SEALING
12.7MM / From: M2000001 		- 1 Enquire
8A291 LR062331
BRACKET - RADIATOR
Air Conditioning Condenser / From: M2000001 		- 2 Enquire
12A644 LR086926
SENSOR - REFRIGERANT PRESSURE
From: M2000001 		- 1 Enquire
18B402 LR142121
HOSE - AIR CONDITIONING
Condenser Outlet / From: M2000001 		- 1 Enquire
19D623 LR141720
COMPRESSOR - AIR CONDITIONING
From: M2000001 / To: M2453896 		- 1 Enquire
19D623 LR159435
COMPRESSOR - AIR CONDITIONING
From: M2453897 		- 1 Enquire
19D624 LR123056
BRACKET - COMPRESSOR
Air Conditioning Condenser / From: M2000001 		- 1 Enquire
19N651A LR142112
TUBE - COMPRESSOR DELIVERY
Compressor Inlet / From: M2000001 		- 1 Enquire
19N651B LR141980
TUBE - COMPRESSOR LINE
Condenser Inlet Tube / From: M2000001 		- 1 Enquire
19712 LR137975
CONDENSER
From: M2000001 		- 1 Enquire
19812 LR035505
BRACKET - A/C PIPE
Attaches To Compressor / From: M2000001 		- 1 Enquire
