Switches (Front And Rear Doors, Nitra Plant Build) ((V) FROMK2000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Petrol AJ20P6]

View All

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Petrol AJ20P6] - Switches (Front And Rear Doors, Nitra Plant Build) ((V) FROMK2000001)

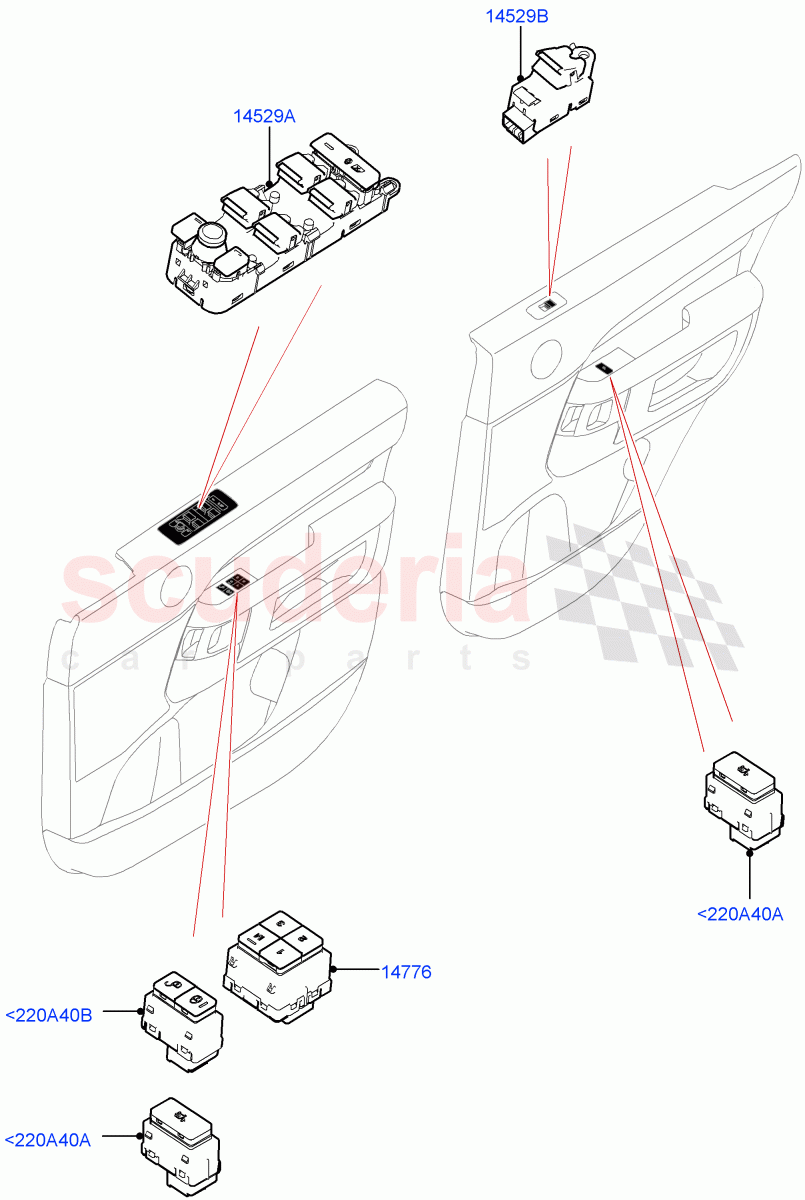

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR059774	SWITCH - SEAT MEMORY CONTROL	Enquire	To Order
	LR059775	SWITCH - SEAT MEMORY CONTROL	Enquire	To Order
	LR059774	SWITCH - SEAT MEMORY CONTROL	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR186660	SWITCH - WINDOW CONTROL - DOUBLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR059773	SWITCH - WINDOW	Enquire	To Order
	LR059773	SWITCH - WINDOW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081342	SWITCH - DOOR LOCK - ANTI-THEFT	Enquire	To Order
	LR081343	SWITCH - DOOR LOCK - ANTI-THEFT	Enquire	To Order
	LR139828	SWITCH - DOOR LOCK - ANTI-THEFT	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR071264	SWITCH - DOOR LOCK - ANTI-THEFT	Enquire	To Order
	LR071265	SWITCH - DOOR LOCK - ANTI-THEFT	Enquire	To Order
	LR139825	SWITCH - DOOR LOCK - ANTI-THEFT	Enquire	To Order

...and 1 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<220A40A	LR081342	SWITCH - DOOR LOCK - ANTI-THEFT	LR081342 SWITCH - DOOR LOCK - ANTI-THEFT LH, Rear Door / From: K2000001 / To: L2999999	-	1	Enquire
<220A40A	LR081343	SWITCH - DOOR LOCK - ANTI-THEFT	LR081343 SWITCH - DOOR LOCK - ANTI-THEFT RH, Rear Door / From: K2000001 / To: L2999999	-	1	Enquire
<220A40A	LR139828	SWITCH - DOOR LOCK - ANTI-THEFT	LR139828 SWITCH - DOOR LOCK - ANTI-THEFT RHD / Front Door, Passenger Side / From: M2000001	-	1	Enquire
<220A40A	LR139829	SWITCH - DOOR LOCK - ANTI-THEFT	LR139829 SWITCH - DOOR LOCK - ANTI-THEFT LHD / Front Door, Passenger Side / From: M2000001	-	1	Enquire
<220A40B	LR071264	SWITCH - DOOR LOCK - ANTI-THEFT	LR071264 SWITCH - DOOR LOCK - ANTI-THEFT RHD / Drivers Door / From: K2000001 / To: L2999999	-	1	Enquire
<220A40B	LR071265	SWITCH - DOOR LOCK - ANTI-THEFT	LR071265 SWITCH - DOOR LOCK - ANTI-THEFT LHD / Drivers Door / From: K2000001 / To: L2999999	-	1	Enquire
<220A40B	LR139825	SWITCH - DOOR LOCK - ANTI-THEFT	LR139825 SWITCH - DOOR LOCK - ANTI-THEFT RHD / Drivers Door / From: M2000001	-	1	Enquire
<220A40B	LR139827	SWITCH - DOOR LOCK - ANTI-THEFT	LR139827 SWITCH - DOOR LOCK - ANTI-THEFT LHD / Drivers Door / From: M2000001	-	1	Enquire
14529A	LR186660	SWITCH - WINDOW CONTROL - DOUBLE	LR186660 SWITCH - WINDOW CONTROL - DOUBLE Drivers Door, Hard Coat Ebony Paint, Window Lift / From: K2000001	-	1	Enquire
14529B	LR059773	SWITCH - WINDOW	LR059773 SWITCH - WINDOW Front Door, Hard Coat Ebony Paint, Passenger Side, Window Lift / From: K2000001	-	1	Enquire
14529B	LR059773	SWITCH - WINDOW	LR059773 SWITCH - WINDOW Hard Coat Ebony Paint, Rear Door, RH/LH, Window Lift / From: K2000001	-	2	Enquire
14776	LR059774	SWITCH - SEAT MEMORY CONTROL	LR059774 SWITCH - SEAT MEMORY CONTROL Electric Front Seat Adj Drv Memory, LHD / Drivers Door / From: K2000001 / To: L2999999	-	1	Enquire
14776	LR059775	SWITCH - SEAT MEMORY CONTROL	LR059775 SWITCH - SEAT MEMORY CONTROL Electric Front Seat Adj Drv Memory, RHD / Drivers Door / From: K2000001 / To: L2999999	-	1	Enquire
14776	LR059774	SWITCH - SEAT MEMORY CONTROL	LR059774 SWITCH - SEAT MEMORY CONTROL Driver/Pass Elec Fr Seat Adj/Memory, LHD / Drivers Door / From: M2000001	-	1	Enquire
14776	LR059775	SWITCH - SEAT MEMORY CONTROL	LR059775 SWITCH - SEAT MEMORY CONTROL Driver/Pass Elec Fr Seat Adj/Memory, RHD / Drivers Door / From: M2000001	-	1	Enquire
