Instrument Panel Related Parts (Solihull Plant Build) ((V) FROMHA000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Petrol AJ20P6]

View All

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Petrol AJ20P6] - Instrument Panel Related Parts (Solihull Plant Build) ((V) FROMHA000001)

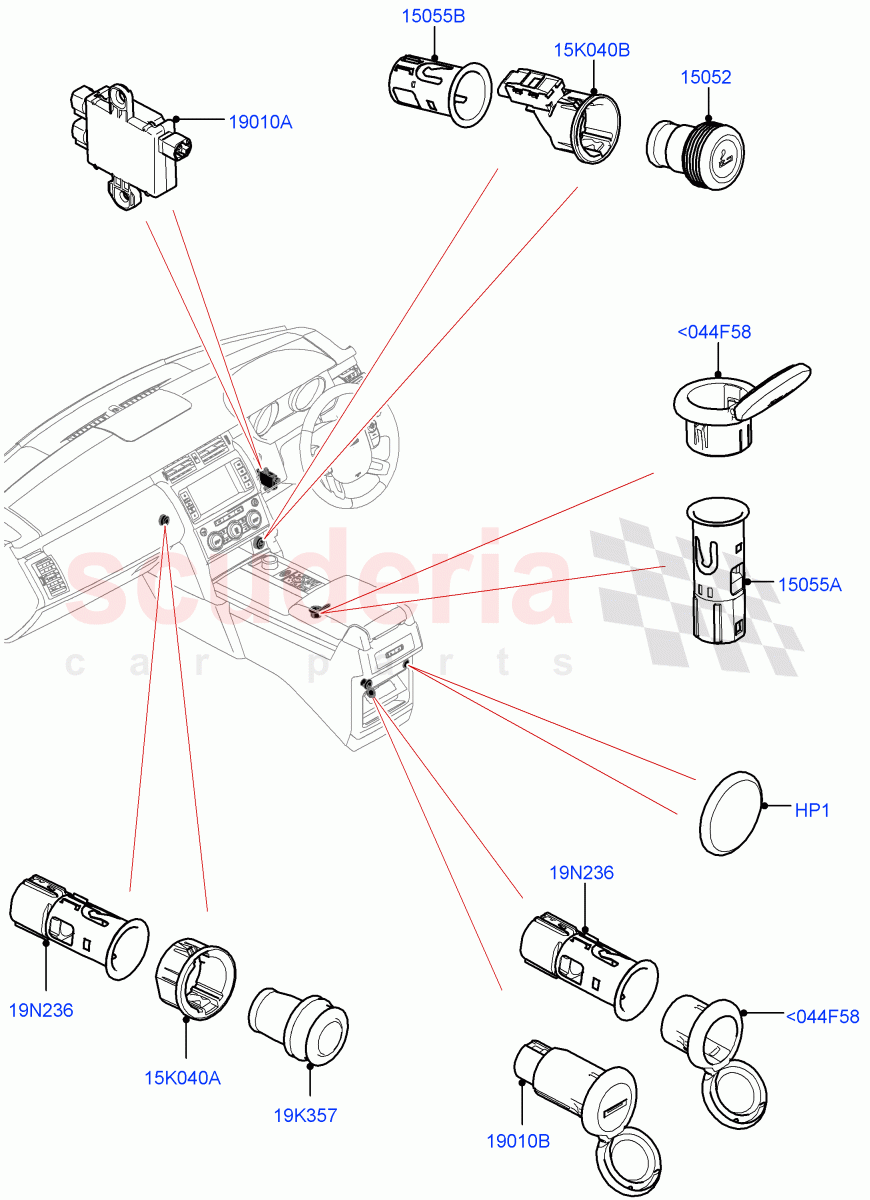

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR082514	PLUG - BLANKING	Enquire	To Order
	LR082516	PLUG - BLANKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR014322	KNOB AND ELEMENT - CIGAR LIGHTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061522	BASE - CIGAR LIGHTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033370	SOCKET - LIGHTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR070580	USB HUB	Enquire	To Order
	LR070580	USB HUB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR085664	SOCKET - USB	Enquire	To Order
	LR107236	SOCKET - USB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033356	PLUG - BLANKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR144086	SOCKET - LIGHTER	Enquire	To Order
	LR144086	SOCKET - LIGHTER	Enquire	To Order
	LR144086	SOCKET - LIGHTER	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR085663	RING - LUMINOUS - CIGAR LIGHTER	Enquire	To Order
	LR107242	RING - CIGAR LIGHTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR039089	RING - LUMINOUS - CIGAR LIGHTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038275	RING - LUMINOUS - CIGAR LIGHTER	Enquire	To Order
	LR073353	RING - LUMINOUS - CIGAR LIGHTER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<044F58	LR085663	RING - LUMINOUS - CIGAR LIGHTER	LR085663 RING - LUMINOUS - CIGAR LIGHTER Located In Armrest / To: HA999999	-	1	Enquire
<044F58	LR107242	RING - CIGAR LIGHTER	LR107242 RING - CIGAR LIGHTER 2 X 12V Power Socket Row 2 / Located In Armrest / From: JA000001	-	1	Enquire
HP1	LR082514	PLUG - BLANKING	LR082514 PLUG - BLANKING 1 X 12V Power Socket Row 2, Interior Espresso Carpet	-	1	Enquire
HP1	LR082516	PLUG - BLANKING	LR082516 PLUG - BLANKING 1 X 12V Power Socket Row 2, Int Ebony Carpet	-	1	Enquire
15K040A	LR039089	RING - LUMINOUS - CIGAR LIGHTER	LR039089 RING - LUMINOUS - CIGAR LIGHTER Less Smokers Package, With Trunk Stowage Bin / Located In Glovebox	-	1	Enquire
15K040B	LR038275	RING - LUMINOUS - CIGAR LIGHTER	LR038275 RING - LUMINOUS - CIGAR LIGHTER Cigar Lighter Mounting Ring, Illuminated / To: HA999999	-	3	Enquire
15K040B	LR073353	RING - LUMINOUS - CIGAR LIGHTER	LR073353 RING - LUMINOUS - CIGAR LIGHTER With Smokers Package / Cigar Lighter Mounting Ring, Illuminated / From: JA000001	-	1	Enquire
19K357	LR033356	PLUG - BLANKING	LR033356 PLUG - BLANKING Power Pack 1(Row 1 USB)	-	-	Enquire
19N236	LR144086	SOCKET - LIGHTER	LR144086 SOCKET - LIGHTER 2 X 12V Power Socket Row 2, Less Smokers Package / To: JA999999	-	3	Enquire
19N236	LR144086	SOCKET - LIGHTER	LR144086 SOCKET - LIGHTER 2 X 12V Power Socket Row 2, With Smokers Package / To: JA999999	-	2	Enquire
19N236	LR144086	SOCKET - LIGHTER	LR144086 SOCKET - LIGHTER 1 X 12V Power Socket Row 2, With Smokers Package / To: JA999999	-	1	Enquire
19N236	LR144086	SOCKET - LIGHTER	LR144086 SOCKET - LIGHTER Less Smokers Package, With Standard Glove Box / From: KA000001	-	1	Enquire
15052	LR014322	KNOB AND ELEMENT - CIGAR LIGHTER	LR014322 KNOB AND ELEMENT - CIGAR LIGHTER With Smokers Package	-	1	Enquire
15055A	LR061522	BASE - CIGAR LIGHTER	LR061522 BASE - CIGAR LIGHTER Located In Armrest	-	1	Enquire
15055B	LR033370	SOCKET - LIGHTER	LR033370 SOCKET - LIGHTER With Smokers Package	-	1	Enquire
19010A	LR070580	USB HUB	LR070580 USB HUB NGI Head Unit, Nav System/Dynmc Route Guide-VICS / To: HA999999	-	1	Enquire
19010A	LR070580	USB HUB	LR070580 USB HUB Nav System/Dynmc Route Guide-VICS / From: JA000001	-	1	Enquire
19010B	LR085664	SOCKET - USB	LR085664 SOCKET - USB 2 X USB Power Socket Row 2 / To: HA999999	-	1	Enquire
19010B	LR107236	SOCKET - USB	LR107236 SOCKET - USB 2 X USB Power Socket Row 2 / From: JA000001	-	2	Enquire
