Heater/Air Cond.external Components (Main Unit, Solihull Plant Build) ((V) Fromha000001)

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6] - Heater/Air Cond.External Components (Main Unit, Solihull Plant Build) ((V) FROMHA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYH500290 NUT AND WASHER - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
LR036394 SCREW AND WASHER Enquire To Order
Photo Part No Description Price (each) Stock
LR083229 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR082162 RESISTOR - HEATER BLOWER MOTOR Enquire To Order
Photo Part No Description Price (each) Stock
LR038865 DEFLECTOR - AIR Enquire To Order
LR038867 DEFLECTOR - AIR Enquire To Order
Photo Part No Description Price (each) Stock
LR036377 TUBE - WATER DRAIN Enquire To Order
Photo Part No Description Price (each) Stock
LR035867 GROMMET - HEATER Enquire To Order
Photo Part No Description Price (each) Stock
LR036363 GROMMET - HEATER Enquire To Order
View All

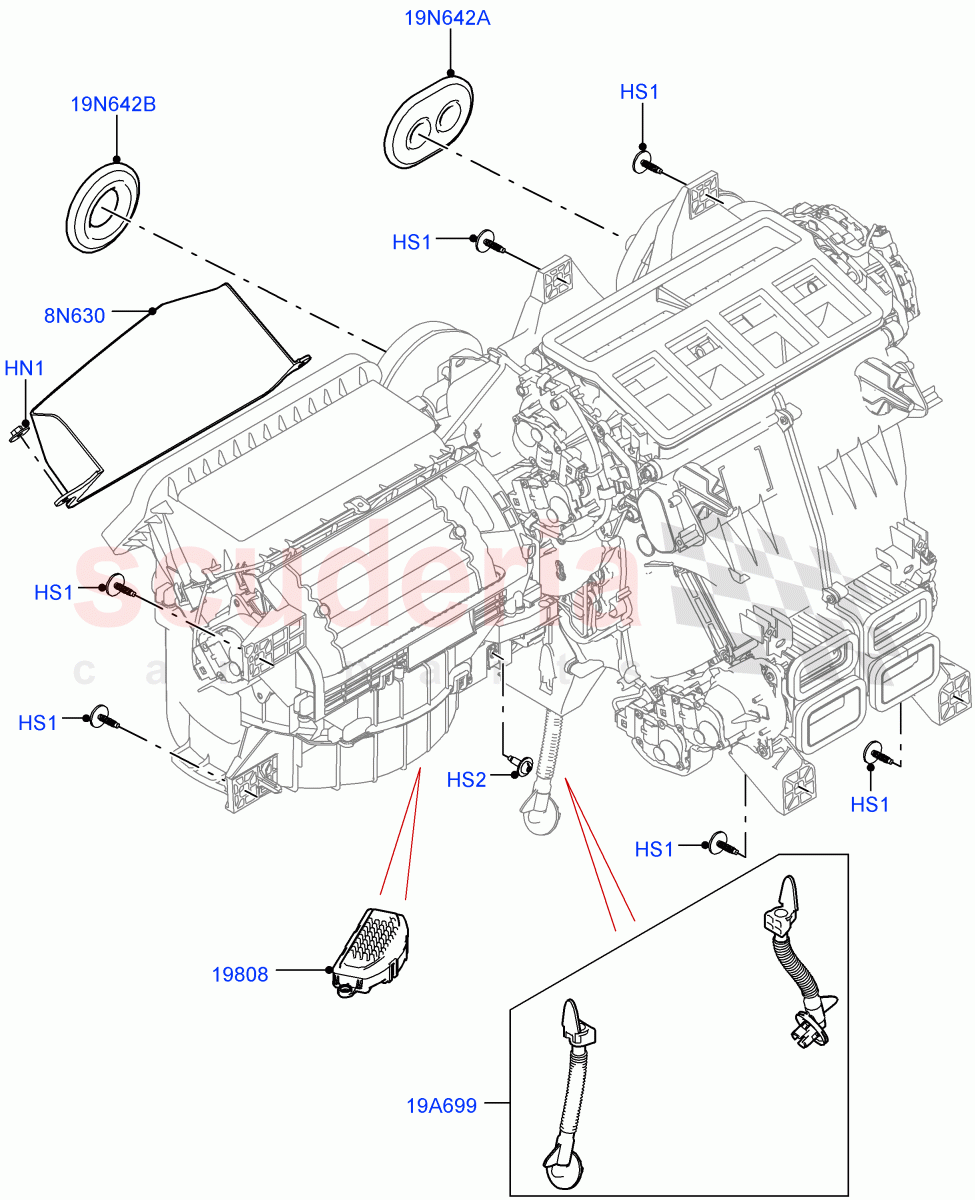

Heater/Air Cond.External Components (Main Unit, Solihull Plant Build) ((V) FROMHA000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 RYH500290
NUT AND WASHER - HEX.
M6 		- 2 Enquire
HS1 LR036394
SCREW AND WASHER
M6 X 23MM, Torx 		- 6 Enquire
HS2 LR083229
SCREW
M6 x 18MM 		- 1 Enquire
8N630 LR038865
DEFLECTOR - AIR
LHD / Air Intake 		- 1 Enquire
8N630 LR038867
DEFLECTOR - AIR
RHD / Air Intake 		- 1 Enquire
19A699 LR036377
TUBE - WATER DRAIN 		- 1 Enquire
19N642A LR035867
GROMMET - HEATER
RH, External 		- 1 Enquire
19N642B LR036363
GROMMET - HEATER
LH, External 		- 1 Enquire
19808 LR082162
RESISTOR - HEATER BLOWER MOTOR
With Manual Air Conditioning / With Fixing Parts 		- 1 Enquire
