Auxiliary Fuel Fired Pre-Heater (Solihull Plant Build, Heater Fuel Supply) (With Fuel Fired Heater,...

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6] - Auxiliary Fuel Fired Pre-Heater (Solihull Plant Build, Heater Fuel Supply) (With Fuel Fired Heater,...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYG500250 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR099629 FUEL PUMP AND FILTER Enquire To Order
Photo Part No Description Price (each) Stock
LR101818 GROMMET - WIRING Enquire To Order
Photo Part No Description Price (each) Stock
LR085959 TUBE - FUEL SUPPLY Enquire To Order
Photo Part No Description Price (each) Stock
LR101293 BRACKET - HEATER MOUNTING Enquire To Order
Photo Part No Description Price (each) Stock
LR092774 TUBE - AUXILIARY HEATER SUPPLY Enquire To Order
Photo Part No Description Price (each) Stock
LR100517 PIPE - FUEL Enquire To Order
LR126110 PIPE - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
LR100569 PIPE - FUEL Enquire To Order
View All

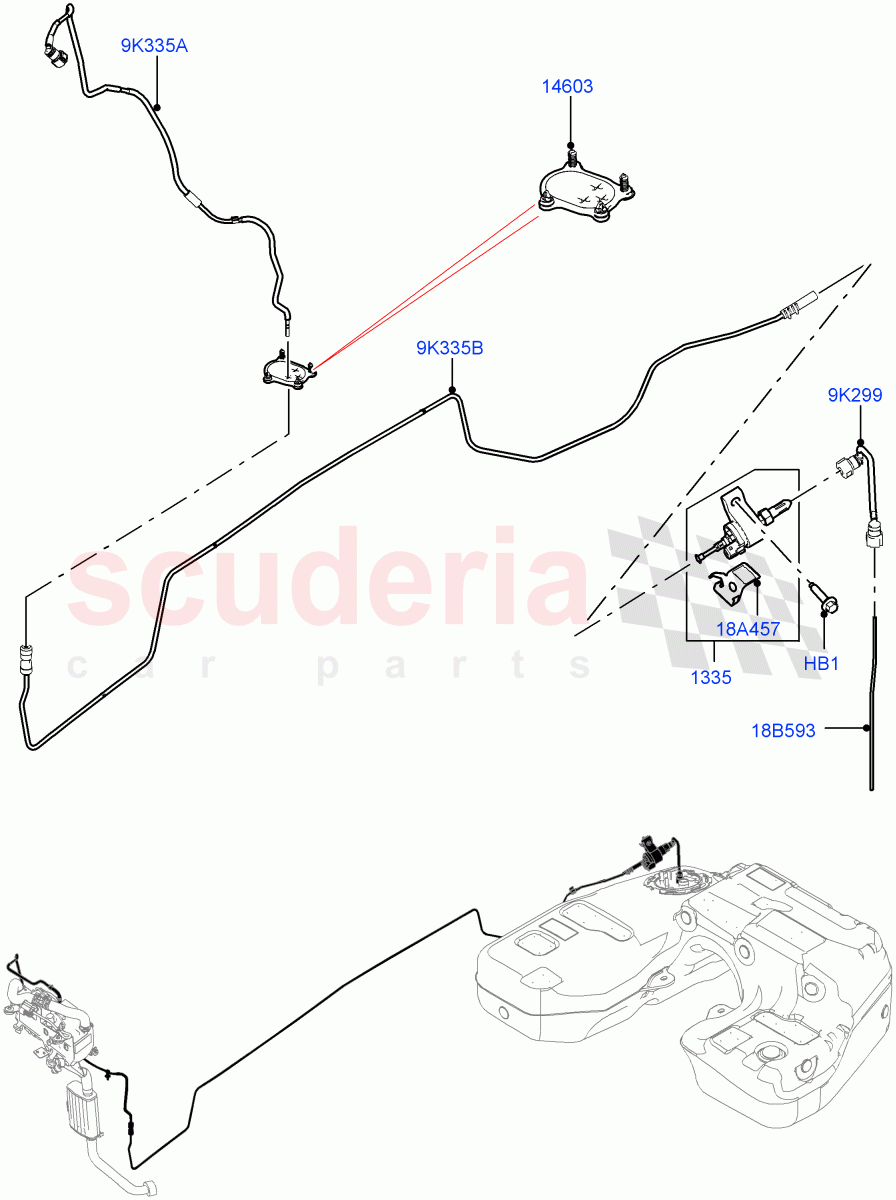

Auxiliary Fuel Fired Pre-Heater (Solihull Plant Build, Heater Fuel Supply) (With Fuel Fired Heater, Fuel Fired Heater With Park Heat, Fuel Heater W/Pk Heat With Remote) ((V) FROMJA000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 RYG500250
BOLT
M6 x 25MM / From: JA000001 		- 1 Enquire
9K299 LR085959
TUBE - FUEL SUPPLY
Rear / From: JA000001 		- 1 Enquire
9K335A LR100517
PIPE - FUEL
Front, Pump To Heater / From: JA000001 / To: KA096126 		- 1 Enquire
9K335A LR126110
PIPE - FUEL
Front, Pump To Heater / From: KA096127 		- 1 Enquire
9K335B LR100569
PIPE - FUEL
Centre, Pump To Heater / From: JA000001 		- 1 Enquire
18A457 LR101293
BRACKET - HEATER MOUNTING
From: JA000001 		- 1 Enquire
18B593 LR092774
TUBE - AUXILIARY HEATER SUPPLY
Fuel Tank / From: JA000001 		- 1 Enquire
1335 LR099629
FUEL PUMP AND FILTER
From: JA000001 		- 1 Enquire
14603 LR101818
GROMMET - WIRING
From: JA000001 		- 1 Enquire
