Transmission Cooling Systems (Solihull Plant Build) (2.0L I4 Dsl Mid Dohc Aj200, 8 Speed Auto Trans...

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6] - Transmission Cooling Systems (Solihull Plant Build) (2.0L I4 DSL MID DOHC AJ200, 8 Speed Auto Trans...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS108166 BOLT $0.63 IN STOCK
Photo Part No Description Price (each) Stock
RYG500220 SCREW $3.31 IN STOCK
Photo Part No Description Price (each) Stock
LR049457 O-RING $3.15 IN STOCK
Photo Part No Description Price (each) Stock
LR036354 OIL COOLER $235.68 To Order
Photo Part No Description Price (each) Stock
LR082643 TUBE - OIL COOLER $230.09 To Order
LR106177 TUBE - OIL COOLER $242.90 To Order
LR116112 TUBE - OIL COOLER $203.79 To Order
View All

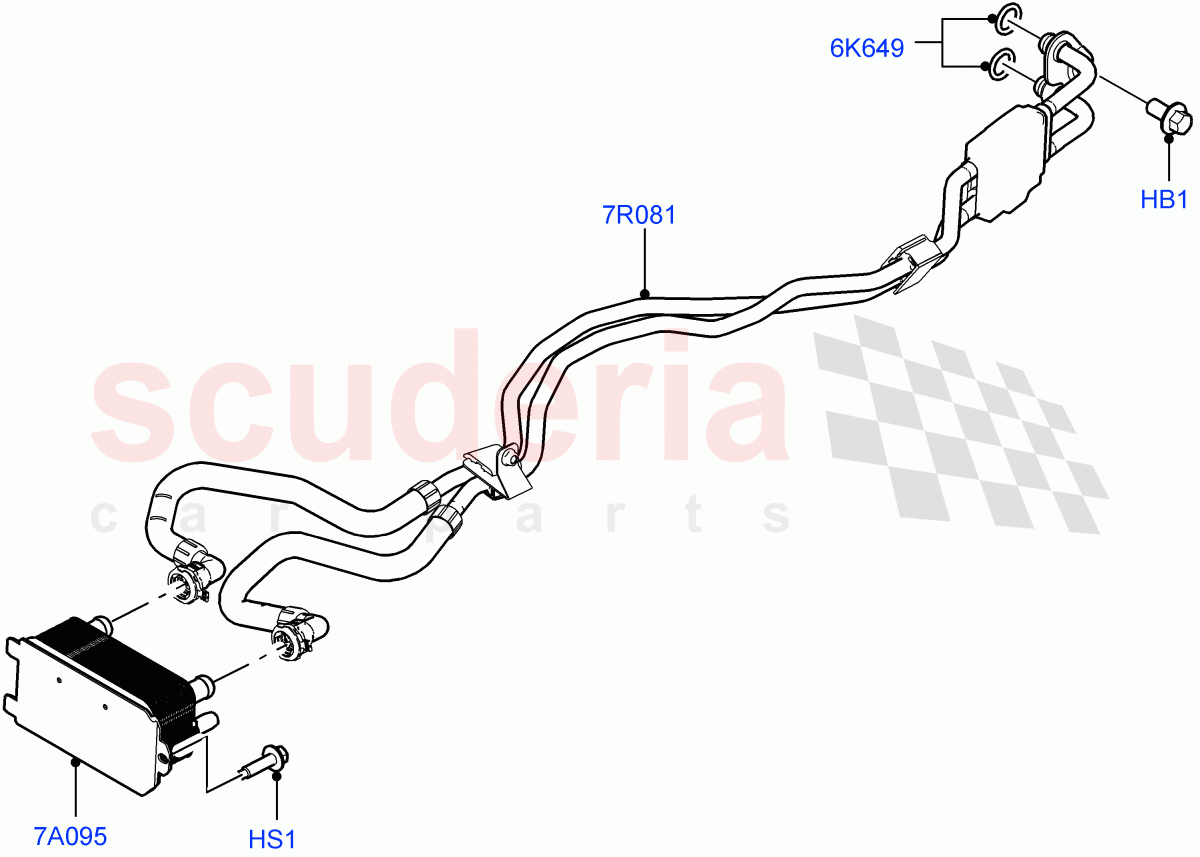

Transmission Cooling Systems (Solihull Plant Build) (2.0L I4 DSL MID DOHC AJ200, 8 Speed Auto Trans ZF 8HP45, 2.0L I4 DSL HIGH DOHC AJ200) ((V) FROMHA000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS108166
BOLT
Hexagonal Head, M8 X 16MM
IN STOCK 		$0.63 1
HS1 RYG500220
SCREW
Hexagonal Head, M6 X 20MM
IN STOCK 		$3.31 1
6K649 LR049457
O-RING
IN STOCK 		$3.15 2
7A095 LR036354
OIL COOLER 		$235.68 1
7R081 LR082643
TUBE - OIL COOLER
To: HA013514 		$230.09 1
7R081 LR106177
TUBE - OIL COOLER
From: HA013515 / To: JA065460 		$242.90 1
7R081 LR116112
TUBE - OIL COOLER
From: JA065461 		$203.79 1
