Auto Trans Assy & Speedometer Drive (Nitra Plant Build) (2.0L I4 High DOHC AJ200 Petrol, 8 Speed Auto Trans ZF 8HP45) ((V) FROMK2000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6]

View All

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6] - Auto Trans Assy & Speedometer Drive (Nitra Plant Build) (2.0L I4 High DOHC AJ200 Petrol, 8 Speed...

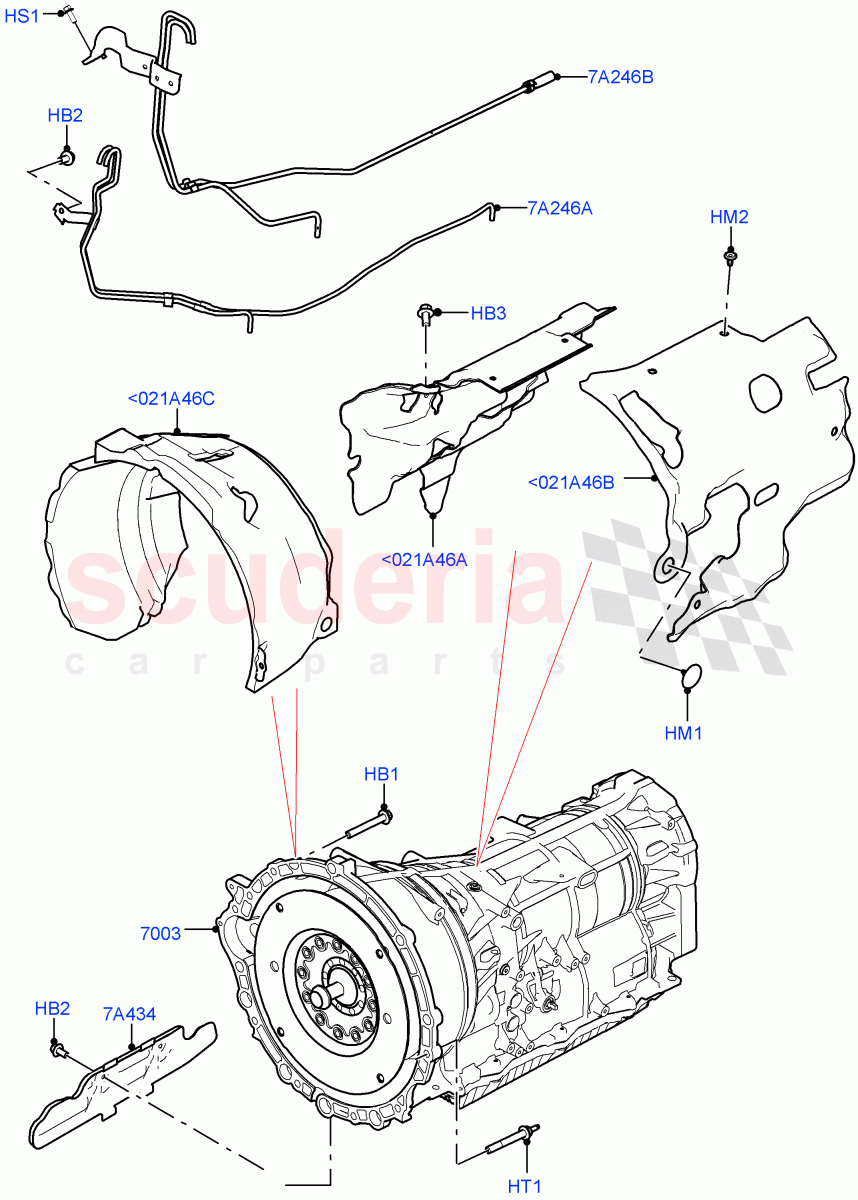

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FB110156	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106126	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR138009	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR078426	FASTENER - COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005541	RIVET - PLASTIC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106166	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR017279	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR100482	AUTOMATIC TRANSMISSION	Enquire	To Order
	LR100483	AUTOMATIC TRANSMISSION	Enquire	To Order
	LR138361	AUTOMATIC TRANSMISSION	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR092822	SHIELD - TRANSMISSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR100477	TUBE - TRANSMISSION VENTILATION	Enquire	To Order
	LR144957	TUBE - TRANSMISSION VENTILATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR142013	TUBE - TRANSMISSION VENTILATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR100562	INSULATOR - TRANSMISSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR100563	INSULATOR - TRANSMISSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR100561	INSULATOR - TRANSMISSION	Enquire	To Order
	LR138050	INSULATOR - TRANSMISSION	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<021A46A	LR100562	INSULATOR - TRANSMISSION	LR100562 INSULATOR - TRANSMISSION Thermal Encapsulation Covers / RH / From: K2000001	-	1	Enquire
<021A46B	LR100563	INSULATOR - TRANSMISSION	LR100563 INSULATOR - TRANSMISSION Thermal Encapsulation Covers / LH / From: K2000001	-	1	Enquire
<021A46C	LR100561	INSULATOR - TRANSMISSION	LR100561 INSULATOR - TRANSMISSION Front / From: K2000001 / To: L2442354	-	1	Enquire
<021A46C	LR138050	INSULATOR - TRANSMISSION	LR138050 INSULATOR - TRANSMISSION Front / From: L2442355	-	1	Enquire
HB1	FB110156	BOLT - HEX.HEAD	FB110156 BOLT - HEX.HEAD Hexagonal Head, M10 x 75MM / From: K2000001	-	6	Enquire
HB2	FS106126	BOLT	FS106126 BOLT Breather Pipe, Hexagonal Head, M6 x 12MM / From: K2000001 / To: L2999999	-	1	Enquire
HB3	LR138009	BOLT	LR138009 BOLT Thermal Encapsulation Covers / M6 x 12mm / From: K2000001	-	2	Enquire
HM1	LR078426	FASTENER - COVER	LR078426 FASTENER - COVER Thermal Encapsulation Covers / 4.75 x 0.76 - 7.9 / From: K2000001	-	6	Enquire
HM2	LR005541	RIVET - PLASTIC	LR005541 RIVET - PLASTIC Thermal Encapsulation Covers / Rivet Push Pin 7 X 3-4.5 / From: K2000001	-	2	Enquire
HS1	FS106166	SCREW	FS106166 SCREW Breather Pipe, Hexagonal Head, M6 X 16MM / From: M2000001	-	1	Enquire
HT1	LR017279	STUD	LR017279 STUD M10 x 75MM, M6 X 16MM / From: K2000001	-	4	Enquire
7A246A	LR100477	TUBE - TRANSMISSION VENTILATION	LR100477 TUBE - TRANSMISSION VENTILATION Gearbox, Includes Bracket, Transfer Box / From: K2000001 / To: L2445098	-	1	Enquire
7A246A	LR144957	TUBE - TRANSMISSION VENTILATION	LR144957 TUBE - TRANSMISSION VENTILATION Gearbox, Includes Bracket, Transfer Box / From: L2445099 / To: L2999999	-	1	Enquire
7A246B	LR142013	TUBE - TRANSMISSION VENTILATION	LR142013 TUBE - TRANSMISSION VENTILATION Gearbox, Includes Bracket, Transfer Box / From: M2000001	-	1	Enquire
7A434	LR092822	SHIELD - TRANSMISSION	LR092822 SHIELD - TRANSMISSION From: K2000001	-	1	Enquire
7003	LR100482	AUTOMATIC TRANSMISSION	LR100482 AUTOMATIC TRANSMISSION Includes Converter, New Part-Please Check For Reman Version / From: K2000001 / To: L2999999	-	1	Enquire
7003	LR100483	AUTOMATIC TRANSMISSION	LR100483 AUTOMATIC TRANSMISSION Includes Converter, Remanufactured Part / From: K2000001 / To: L2999999	-	1	Enquire
7003	LR138361	AUTOMATIC TRANSMISSION	LR138361 AUTOMATIC TRANSMISSION Includes Converter / From: M2000001 / To: M2999999	-	1	Enquire
7003	LR170032	AUTOMATIC TRANSMISSION	LR170032 AUTOMATIC TRANSMISSION Includes Converter / From: N2000001	-	1	Enquire
