Fuel Tank & Related Parts (Nitra Plant Build) (3.0L Aj20D6 Diesel High) ((V) Fromm2000001)

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6] - Fuel Tank & Related Parts (Nitra Plant Build) (3.0L AJ20D6 Diesel High) ((V) FROMM2000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR093364 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR093365 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
LR094032 CLIP - HOSE Enquire To Order
Photo Part No Description Price (each) Stock
LR061655 CLAMP - FUEL SUPPLY TUBE Enquire To Order
Photo Part No Description Price (each) Stock
RYG500900 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR136781 TANK - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
LR138861 CAP - FUEL TANK FILLER Enquire To Order
LR138719 CAP - FUEL TANK FILLER Enquire To Order
Photo Part No Description Price (each) Stock
LR082769 PIPE - FUEL FILLER Enquire To Order
LR082771 PIPE - FUEL FILLER Enquire To Order
LR082772 PIPE - FUEL FILLER Enquire To Order
Photo Part No Description Price (each) Stock
LR082775 HOSE - FILLER PIPE Enquire To Order
Photo Part No Description Price (each) Stock
LR082450 TUBE - FUEL VAPOUR Enquire To Order
Photo Part No Description Price (each) Stock
LR148067 SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
LR073691 FUNNEL - FUEL FILLER Enquire To Order
Photo Part No Description Price (each) Stock
LR014047 RESTRICTOR - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
LR122707 TUBE - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
LR125887 TUBE - FUEL FEED Enquire To Order
View All

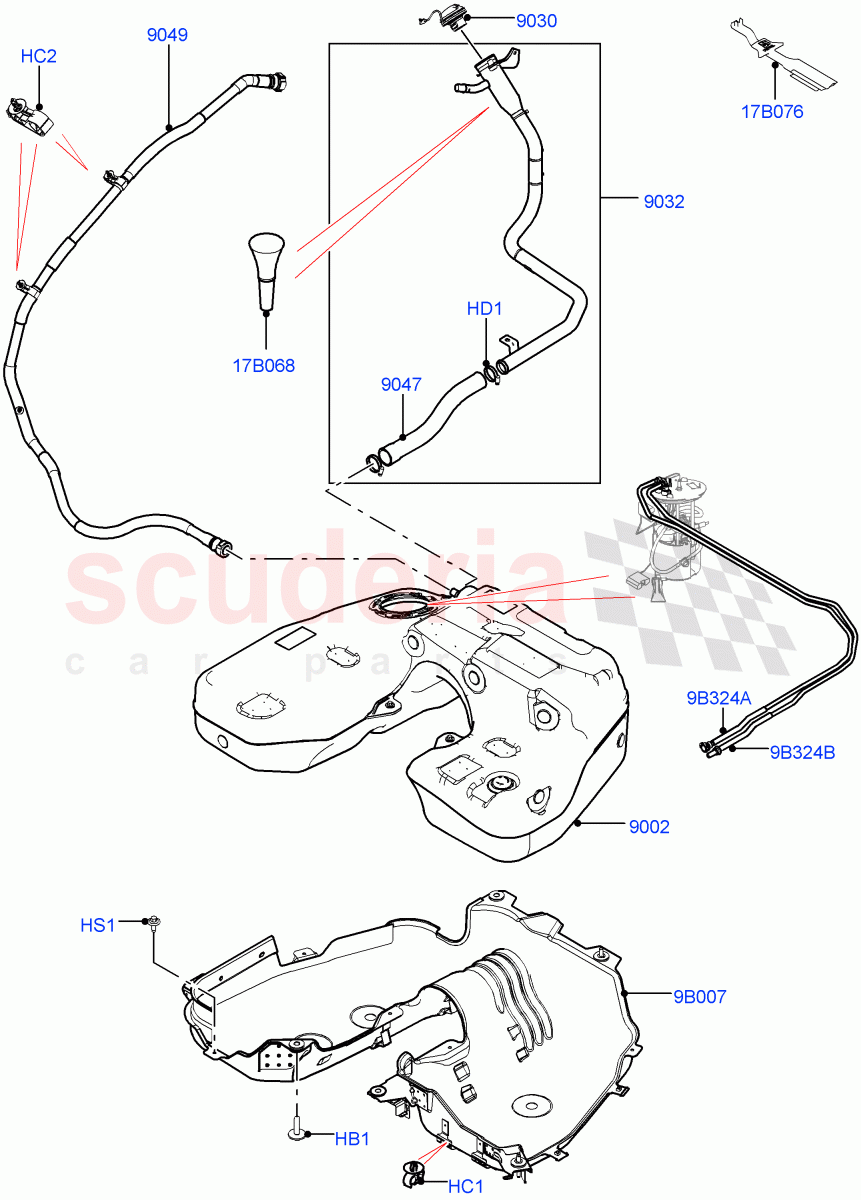

Fuel Tank & Related Parts (Nitra Plant Build) (3.0L AJ20D6 Diesel High) ((V) FROMM2000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR093364
BOLT
Hexagonal Head, M10 X 50MM, To Body / From: M2000001 		- 7 Enquire
HC1 LR093365
CLIP
Shield / From: M2000001 		- 2 Enquire
HC2 LR094032
CLIP - HOSE
Breather Pipe, Plastic / From: M2000001 		- 2 Enquire
HD1 LR061655
CLAMP - FUEL SUPPLY TUBE
35-50 x 9 / From: M2000001 		- 1 Enquire
HS1 RYG500900
SCREW
Bolt And Washer, Hexagonal Head, M6X30 / From: M2000001 		- 5 Enquire
9B007 LR148067
SHIELD
From: M2000001 		- 1 Enquire
9B324A LR122707
TUBE - FUEL
Feed / From: M2000001 		- 1 Enquire
9B324B LR125887
TUBE - FUEL FEED
Return / From: M2000001 		- 1 Enquire
17B068 LR073691
FUNNEL - FUEL FILLER
Fuel Tank Filler Neck With Inhibit / From: M2000001 		- 1 Enquire
17B076 LR014047
RESTRICTOR - FUEL
Fuel Tank Filler Neck - Diesel / From: M2000001 		- 1 Enquire
9002 LR136781
TANK - FUEL
From: M2000001 		- 1 Enquire
9030 LR138861
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck - Diesel / From: M2000001 		- 1 Enquire
9030 LR138719
CAP - FUEL TANK FILLER
Fuel Tank Filler Neck - Japan / From: M2000001 		- 1 Enquire
9032 LR082769
PIPE - FUEL FILLER
Fuel Tank Filler Neck With Inhibit / From: M2000001 		- 1 Enquire
9032 LR082771
PIPE - FUEL FILLER
Fuel Tank Filler Neck - All Nozzles / From: M2000001 		- 1 Enquire
9032 LR082772
PIPE - FUEL FILLER
Fuel Tank Filler Neck - Diesel / From: M2000001 		- 1 Enquire
9047 LR082775
HOSE - FILLER PIPE
From: M2000001 		- 1 Enquire
9049 LR082450
TUBE - FUEL VAPOUR
From: M2000001 		- 1 Enquire
