Fuel Lines (Nitra Plant Build) (3.0L Aj20D6 Diesel High) ((V) Fromm2000001)

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6] - Fuel Lines (Nitra Plant Build) (3.0L AJ20D6 Diesel High) ((V) FROMM2000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS106206 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
RYG500900 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR071774 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR125292 FILTER - FUEL - PRIMARY Enquire To Order
Photo Part No Description Price (each) Stock
LR125289 BRACKET - FUEL FILTER Enquire To Order
Photo Part No Description Price (each) Stock
LR125290 TUBE - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
LR154872 TUBE Enquire To Order
Photo Part No Description Price (each) Stock
LR144912 TUBE - FUEL FILTER TO FUEL PUMP Enquire To Order
Photo Part No Description Price (each) Stock
LR125509 PIPE - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
LR125294 TUBE - FUEL FEED Enquire To Order
Photo Part No Description Price (each) Stock
LR082765 TUBE - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
LR142296 PIPE - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
LR142125 TUBE - FUEL SUPPLY AND VAPOUR Enquire To Order
Photo Part No Description Price (each) Stock
LR125301 FILTER - FUEL - PRIMARY Enquire To Order
Photo Part No Description Price (each) Stock
LR081530 GROMMET - FUEL FILTER Enquire To Order
Photo Part No Description Price (each) Stock
LR125505 BRACKET - FUEL TUBE SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
LR125507 BRACKET - FUEL TUBE SUPPORT Enquire To Order
View All

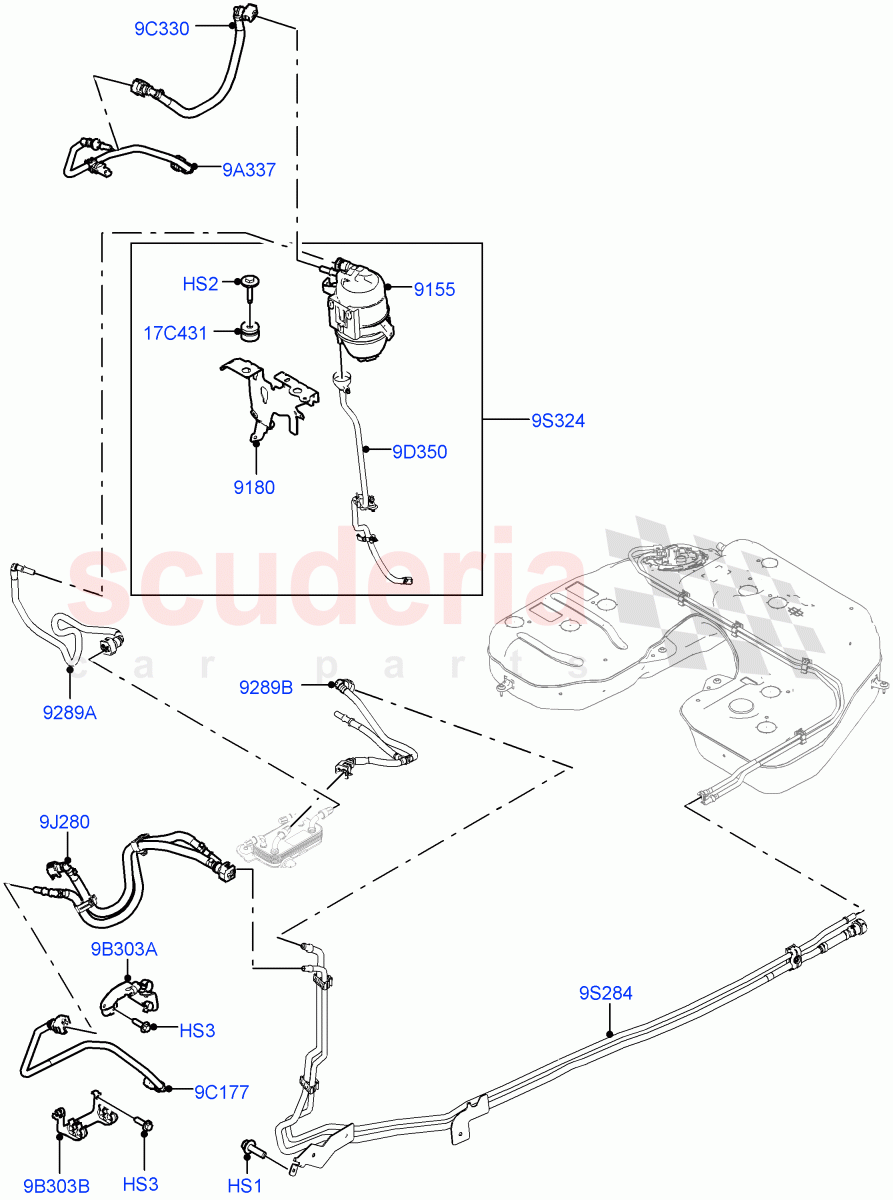

Fuel Lines (Nitra Plant Build) (3.0L AJ20D6 Diesel High) ((V) FROMM2000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 FS106206
SCREW
Hexagonal Head, M6 X 20MM / From: M2000001 		- 2 Enquire
HS2 RYG500900
SCREW
Bolt And Washer, Hexagonal Head, M6X30 / From: M2000001 		- 2 Enquire
HS3 LR071774
SCREW
Hexagonal Head, M6 X 20MM / From: M2000001 		- 4 Enquire
9A337 LR144912
TUBE - FUEL FILTER TO FUEL PUMP
To Fuel Pump / From: M2000001 		- 1 Enquire
9B303A LR125505
BRACKET - FUEL TUBE SUPPORT
Upper / From: M2000001 		- 1 Enquire
9B303B LR125507
BRACKET - FUEL TUBE SUPPORT
Lower / From: M2000001 		- 1 Enquire
9C177 LR125509
PIPE - FUEL
From: M2000001 		- 1 Enquire
9C330 LR125294
TUBE - FUEL FEED
Front, Single / From: M2000001 		- 1 Enquire
9D350 LR082765
TUBE - FUEL
Drain / From: M2000001 		- 1 Enquire
9J280 LR142296
PIPE - FUEL
Front / From: M2000001 		- 1 Enquire
9S284 LR142125
TUBE - FUEL SUPPLY AND VAPOUR
Rear / From: M2000001 		- 1 Enquire
9S324 LR125301
FILTER - FUEL - PRIMARY
Assembly / From: M2000001 		- 1 Enquire
17C431 LR081530
GROMMET - FUEL FILTER
From: M2000001 		- 2 Enquire
9155 LR125292
FILTER - FUEL - PRIMARY
With Bracket / From: M2000001 		- 1 Enquire
9180 LR125289
BRACKET - FUEL FILTER
From: M2000001 		- 1 Enquire
9289A LR125290
TUBE - FUEL
Fuel Cooler To Filter Tube / From: M2000001 		- 1 Enquire
9289B LR154872
TUBE
From Fuel Cooler / From: M2000001 		- 1 Enquire
