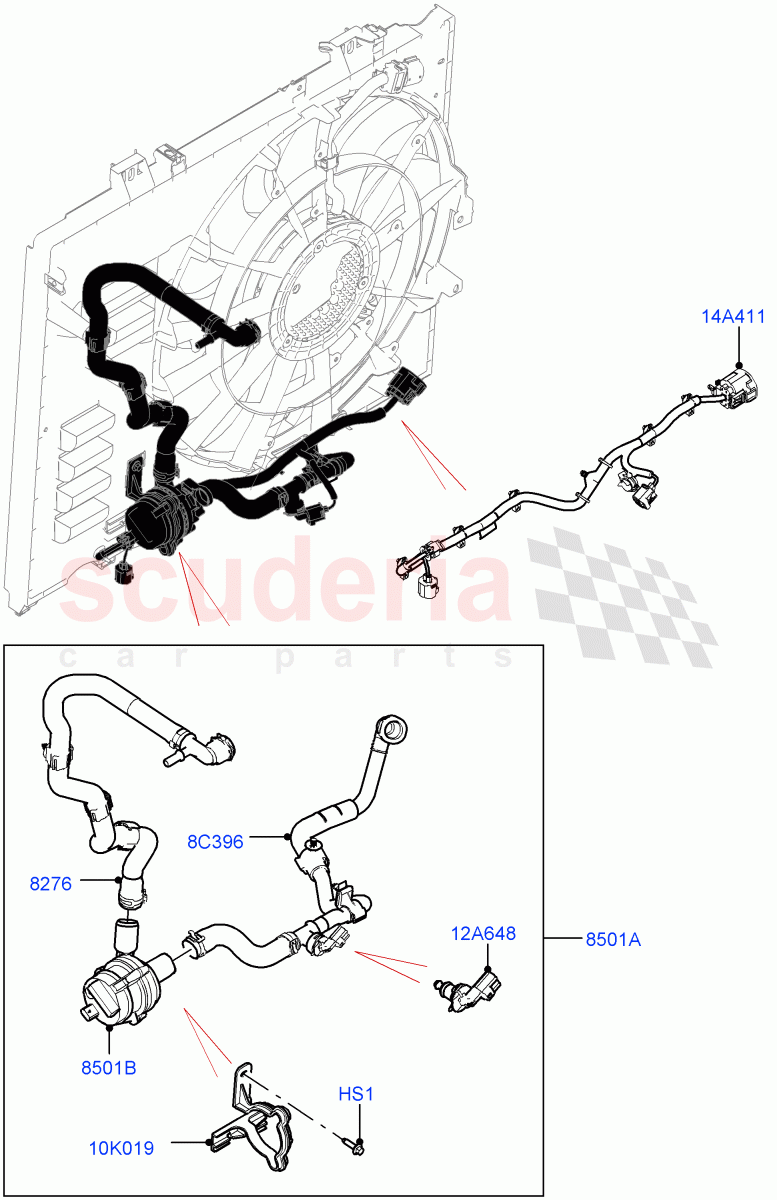

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG500220	SCREW	$3.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR139405	HOSE - WATER	$226.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR164116	PUMP - WATER	$248.65	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153970	PUMP - WATER	$260.21	To Order

Photo	Part No	Description	Price (each)	Stock
	LR164118	GASKET - WATER PUMP	$121.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR128198	BRACKET - PUMP SUPPORT	$12.37	To Order

Photo	Part No	Description	Price (each)	Stock
	LR041442	SENSOR - ENGINE COOLANT TEMPERATURE	$47.02	To Order

Photo	Part No	Description	Price (each)	Stock
	LR170966	WIRING - TRACTION BATTERY	$79.39	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HS1	RYG500220	SCREW IN STOCK	RYG500220 SCREW Hexagonal Head, M6 X 20MM / From: P2000001 IN STOCK	$3.31	1
8C396	LR164118	GASKET - WATER PUMP	LR164118 GASKET - WATER PUMP From: P2000001	$121.11	1
10K019	LR128198	BRACKET - PUMP SUPPORT	LR128198 BRACKET - PUMP SUPPORT From: P2000001	$12.37	1
12A648	LR041442	SENSOR - ENGINE COOLANT TEMPERATURE	LR041442 SENSOR - ENGINE COOLANT TEMPERATURE From: P2000001	$47.02	1
14A411	LR170966	WIRING - TRACTION BATTERY	LR170966 WIRING - TRACTION BATTERY From: P2000001	$79.39	1
8276	LR139405	HOSE - WATER	LR139405 HOSE - WATER Water Pump / From: P2000001	$226.03	1
8501A	LR164116	PUMP - WATER	LR164116 PUMP - WATER Complete Assembly / From: P2000001	$248.65	1
8501B	LR153970	PUMP - WATER	LR153970 PUMP - WATER From: P2000001	$260.21	1
