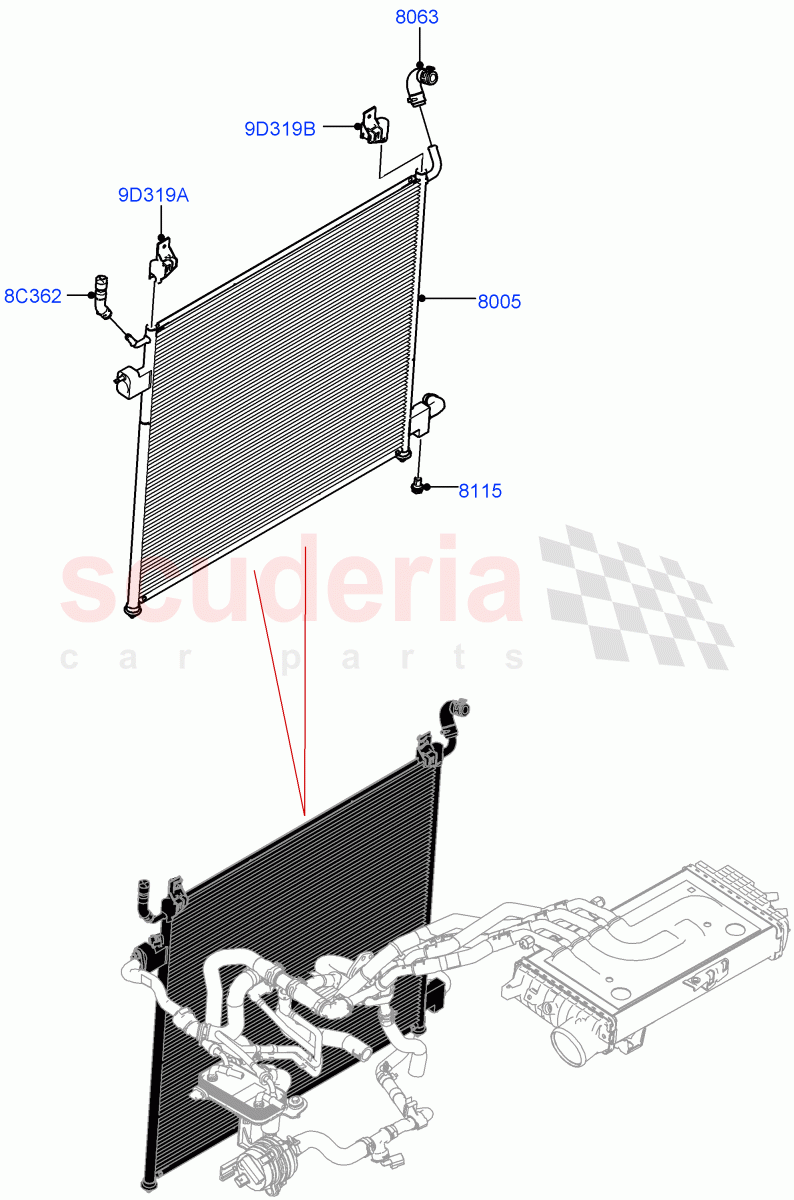

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR106644	RADIATOR	$527.14	To Order

Photo	Part No	Description	Price (each)	Stock
	LR063167	CONNECTION - WATER	$60.93	To Order

Photo	Part No	Description	Price (each)	Stock
	LR063055	PLUG - RADIATOR DRAIN	$15.28	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062108	PIPE - FILLER	$52.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062427	BRACKET - RADIATOR	$7.32	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062429	BRACKET - RADIATOR UPPER	$10.12	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
8C362	LR062108	PIPE - FILLER	LR062108 PIPE - FILLER Fill, Tube / From: M2000001	$52.42	1
9D319A	LR062427	BRACKET - RADIATOR	LR062427 BRACKET - RADIATOR LH Upper / From: M2000001	$7.32	1
9D319B	LR062429	BRACKET - RADIATOR UPPER	LR062429 BRACKET - RADIATOR UPPER RH Upper / From: M2000001	$10.12	1
8005	LR106644	RADIATOR	LR106644 RADIATOR From: M2000001	$527.14	1
8063	LR063167	CONNECTION - WATER	LR063167 CONNECTION - WATER Radiator Hose / From: M2000001	$60.93	1
8115	LR063055	PLUG - RADIATOR DRAIN	LR063055 PLUG - RADIATOR DRAIN From: M2000001	$15.28	1
