Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6] - Inlet Manifold (Nitra Plant Build) (3.0L AJ20D6 Diesel High) ((V) FROMM2000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR095783 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
LR073655 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR130401 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR074074 OIL SPILL GAITER Enquire To Order
Photo Part No Description Price (each) Stock
LR125326 MANIFOLD - INLET Enquire To Order
Photo Part No Description Price (each) Stock
LR133631 GASKET - INTAKE MANIFOLD Enquire To Order
Photo Part No Description Price (each) Stock
LR125274 COVER - ENGINE TOP Enquire To Order
Photo Part No Description Price (each) Stock
LR074085 BOLT - SPECIAL Enquire To Order
Photo Part No Description Price (each) Stock
LR133632 GASKET - THROTTLE Enquire To Order
Photo Part No Description Price (each) Stock
LR090375 SENSOR - AIR TEMPERATURE & PRESSURE Enquire To Order
Photo Part No Description Price (each) Stock
LR038978 STUD - BALL Enquire To Order
Photo Part No Description Price (each) Stock
LR126018 STUD - BALL Enquire To Order
Photo Part No Description Price (each) Stock
LR125330 BRACKET - MANIFOLD Enquire To Order
Photo Part No Description Price (each) Stock
LR125331 BRACKET - MANIFOLD Enquire To Order
Photo Part No Description Price (each) Stock
LR125332 BRACKET - MANIFOLD Enquire To Order
View All

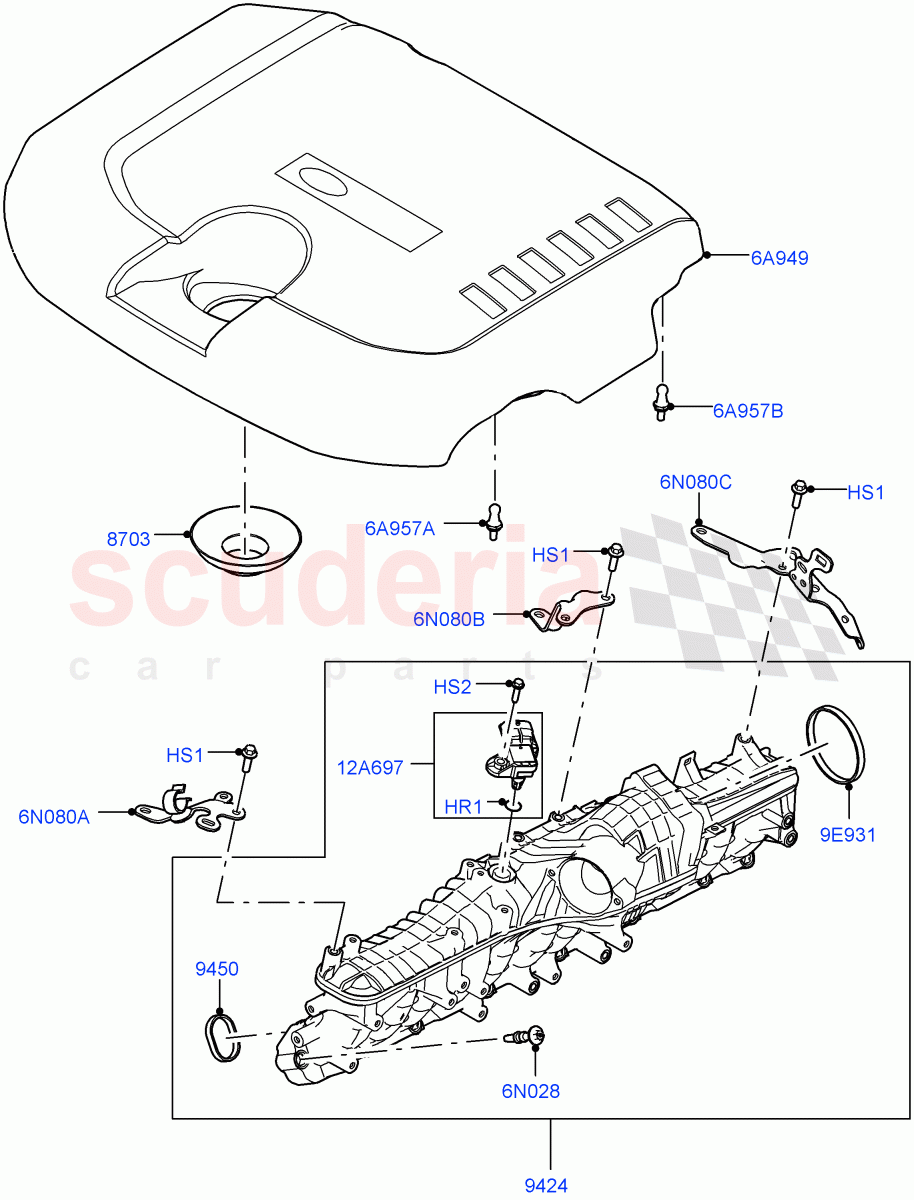

Inlet Manifold (Nitra Plant Build) (3.0L AJ20D6 Diesel High) ((V) FROMM2000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HR1 LR095783
O-RING
7.5MM, MAP Sensor / From: M2000001 		- 1 Enquire
HS1 LR073655
SCREW
Hexagonal Head, M6 X 20MM / From: M2000001 		- 7 Enquire
HS2 LR130401
SCREW
Hexagonal Head, M5 x 20MM, MAP Sensor / From: M2000001 		- 1 Enquire
6A949 LR125274
COVER - ENGINE TOP
Engine / From: M2000001 		- 1 Enquire
6A957A LR038978
STUD - BALL
RH / From: M2000001 		- 1 Enquire
6A957B LR126018
STUD - BALL
LH / From: M2000001 		- 1 Enquire
6N028 LR074085
BOLT - SPECIAL
M6 x 42MM, Manifold To Cylinder Head / From: M2000001 		- 14 Enquire
6N080A LR125330
BRACKET - MANIFOLD
Front / From: M2000001 		- 1 Enquire
6N080B LR125331
BRACKET - MANIFOLD
Centre / From: M2000001 		- 1 Enquire
6N080C LR125332
BRACKET - MANIFOLD
Rear / From: M2000001 		- 1 Enquire
9E931 LR133632
GASKET - THROTTLE
Throttle Body To Intake / From: M2000001 		- 1 Enquire
12A697 LR090375
SENSOR - AIR TEMPERATURE & PRESSURE
Pressure / From: M2000001 		- 1 Enquire
8703 LR074074
OIL SPILL GAITER
Oil Spill / From: M2000001 		- 1 Enquire
9424 LR125326
MANIFOLD - INLET
From: M2000001 		- 1 Enquire
9450 LR133631
GASKET - INTAKE MANIFOLD
Manifold To Cylinder Head / From: M2000001 		- 12 Enquire
