Find Your Part

Cylinder Block And Plugs (Nitra Plant Build) (3.0L AJ20D6 Diesel High) ((V) FROMM2000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6]

View All

Land Rover Discovery 5 (2017+) [3.0 I6 Turbo Diesel AJ20D6] - Cylinder Block And Plugs (Nitra Plant Build) (3.0L AJ20D6 Diesel High) ((V) FROMM2000001)

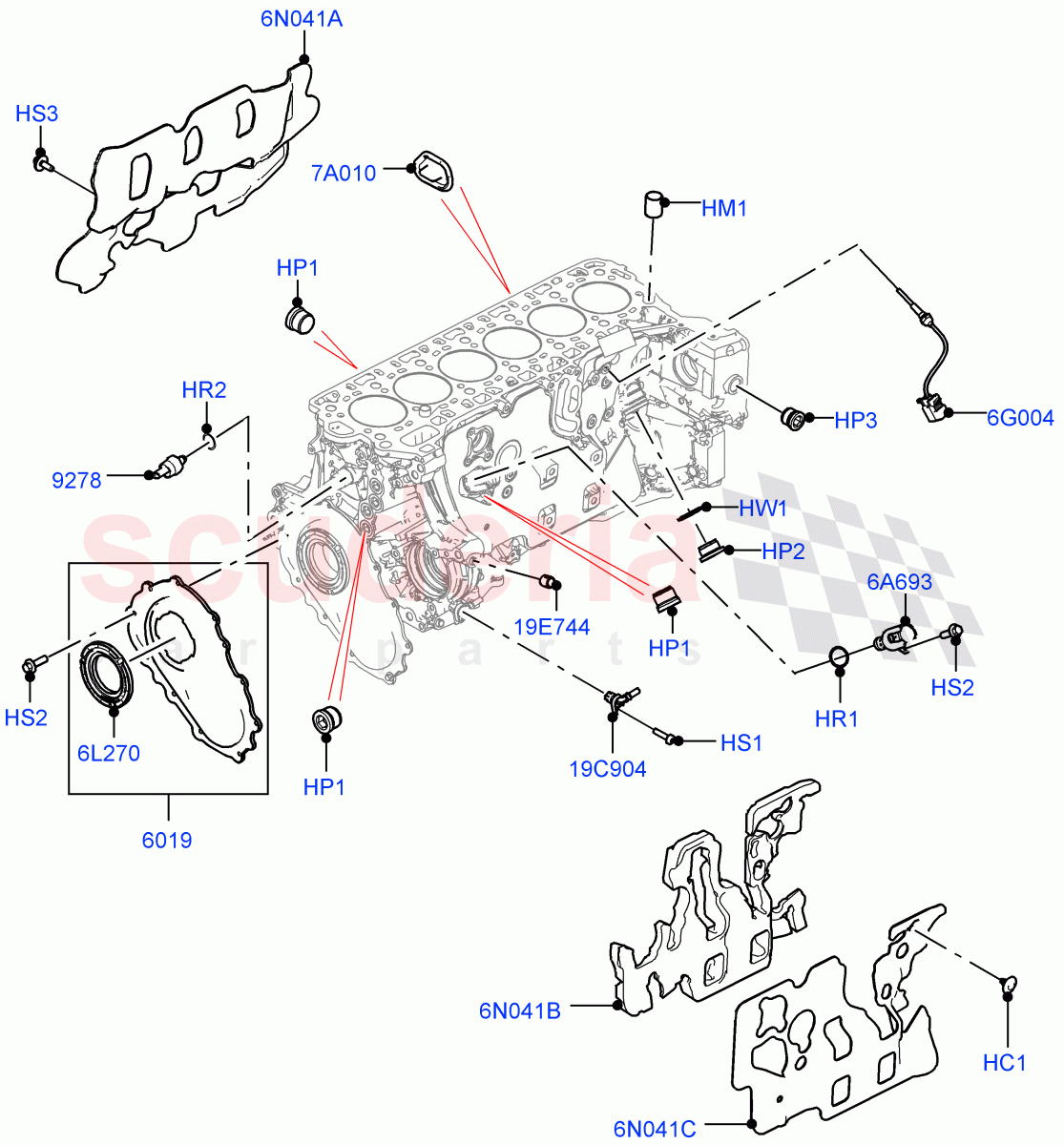

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR125667	CLIP - TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073637	DOWEL - PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR163109	PLUG - ENGINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR163197	PLUG - ENGINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR163195	PLUG - ENGINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR166358	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR170968	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073666	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073655	SCREW	Enquire	To Order
	LR073655	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126158	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR163208	WASHER - SEALING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR138831	COVER - CYLINDER FRONT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135718	SWITCH - OIL PRESSURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125345	VALVE - PISTON OIL COOLNG	Enquire	To Order
	LR153976	VALVE - PISTON OIL COOLNG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115083	SENSOR - CYLINDER HEAD TEMPERATURE	Enquire	To Order
	LR155114	SENSOR - CYLINDER HEAD TEMPERATURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121757	SEAL - CRANKSHAFT OIL - FRONT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121240	PLUG - INSPECTION OPENING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121354	TUBE - VACUUM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR057802	DOWEL - PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125311	COVER - INSULATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125601	INSULATOR PAD - CYLINDER BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125312	INSULATOR - ENGINE COMPARTMENT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HC1	LR125667	CLIP - TRIM	LR125667 CLIP - TRIM 5.8 X 4.5-8, Insulator / From: M2000001	-	2	Enquire
HM1	LR073637	DOWEL - PIN	LR073637 DOWEL - PIN 16.5 x 20, Pin - Dowell / From: M2000001	-	2	Enquire
HP1	LR163109	PLUG - ENGINE	LR163109 PLUG - ENGINE M22x1.5 x 13 mm / From: M2000001	-	6	Enquire
HP2	LR163197	PLUG - ENGINE	LR163197 PLUG - ENGINE LH Side, M30 x 12 mm / From: M2000001	-	1	Enquire
HP3	LR163195	PLUG - ENGINE	LR163195 PLUG - ENGINE M18 x 1.5 / From: M2000001	-	1	Enquire
HR1	LR166358	O-RING	LR166358 O-RING	-	1	Enquire
HR2	LR170968	O-RING	LR170968 O-RING Sensor - Oil Pressure / From: M2000001	-	1	Enquire
HS1	LR073666	SCREW	LR073666 SCREW M5 x 20MM, Vacuum Connector / From: M2000001	-	1	Enquire
HS2	LR073655	SCREW	LR073655 SCREW Hexagonal Head, M6 X 20MM, Valve - piston oil cooling / From: M2000001	-	1	Enquire
HS2	LR073655	SCREW	LR073655 SCREW Engine Cover, Hexagonal Head, M6 X 20MM / From: M2000001	-	11	Enquire
HS3	LR126158	SCREW	LR126158 SCREW RH, Insulator, M8 X 25MM / From: M2000001	-	2	Enquire
HW1	LR163208	WASHER - SEALING	LR163208 WASHER - SEALING 33 x 39.13 x 3.7 / From: M2000001	-	1	Enquire
6A693	LR125345	VALVE - PISTON OIL COOLNG	LR125345 VALVE - PISTON OIL COOLNG From: M2000001 / To: M2447262	-	1	Enquire
6A693	LR153976	VALVE - PISTON OIL COOLNG	LR153976 VALVE - PISTON OIL COOLNG From: M2447263	-	1	Enquire
6G004	LR115083	SENSOR - CYLINDER HEAD TEMPERATURE	LR115083 SENSOR - CYLINDER HEAD TEMPERATURE Temperature / From: M2000001 / To: M2448275	-	1	Enquire
6G004	LR155114	SENSOR - CYLINDER HEAD TEMPERATURE	LR155114 SENSOR - CYLINDER HEAD TEMPERATURE Temperature / From: M2448276	-	1	Enquire
6L270	LR121757	SEAL - CRANKSHAFT OIL - FRONT	LR121757 SEAL - CRANKSHAFT OIL - FRONT From: M2000001	-	1	Enquire
6N041A	LR125311	COVER - INSULATOR	LR125311 COVER - INSULATOR RH / From: M2000001	-	1	Enquire
6N041B	LR125601	INSULATOR PAD - CYLINDER BLOCK	LR125601 INSULATOR PAD - CYLINDER BLOCK LH - Inner / From: M2000001	-	1	Enquire
6N041C	LR125312	INSULATOR - ENGINE COMPARTMENT	LR125312 INSULATOR - ENGINE COMPARTMENT LH - Outer / From: M2000001	-	1	Enquire
7A010	LR121240	PLUG - INSPECTION OPENING	LR121240 PLUG - INSPECTION OPENING Plug; Converter Inspection Hole In Block / From: M2000001	-	1	Enquire
19C904	LR121354	TUBE - VACUUM	LR121354 TUBE - VACUUM From: M2000001	-	1	Enquire
19E744	LR057802	DOWEL - PIN	LR057802 DOWEL - PIN Air Conditioning Compressor Bracket,	-	2	Enquire
6019	LR138831	COVER - CYLINDER FRONT	LR138831 COVER - CYLINDER FRONT Engine Front, Includes Seal / From: M2000001	-	1	Enquire
9278	LR135718	SWITCH - OIL PRESSURE	LR135718 SWITCH - OIL PRESSURE Sensor / From: M2000001	-	1	Enquire
