Name: Fuel Lines (Solihull Plant Build, Front) (3.0 V6 D Gen2 Mono Turbo, 3.0 V6 D Gen2 Twin Turbo, 3.0 V6 D Low MT ROW) ((V) FROMHA000001)
Rating: 4.8 (1 reviews)

Fuel Lines (Solihull Plant Build, Front) (3.0 V6 D Gen2 Mono Turbo, 3.0 V6 D Gen2 Twin Turbo, 3.0 V6 D Low MT ROW) ((V) FROMHA000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] - Fuel Lines (Solihull Plant Build, Front) (3.0 V6 D Gen2 Mono Turbo, 3.0 V6 D Gen2 Twin Turbo, 3.0...

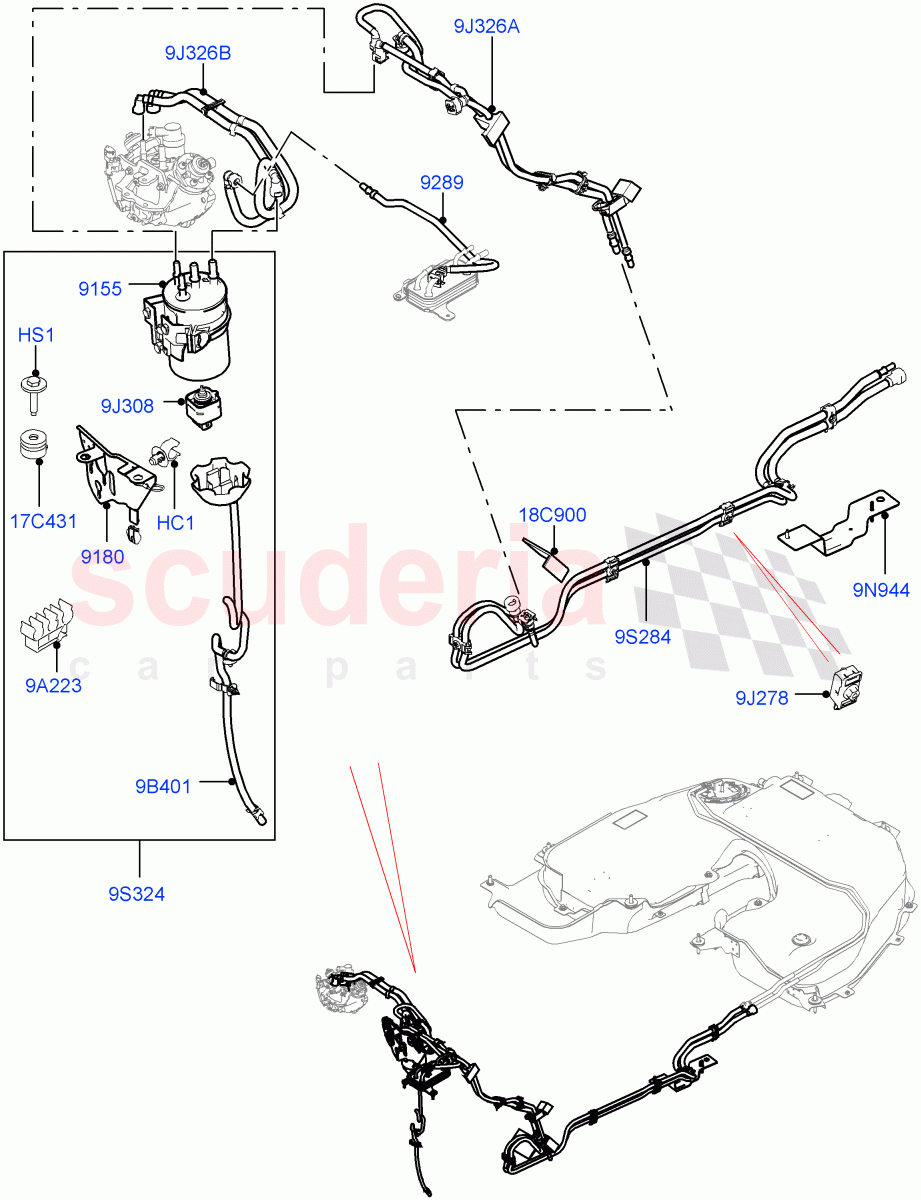

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR004596	CLIP	$1.62	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500900	SCREW	$4.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR041978	FILTER - FUEL	$123.10	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR081087	BRACKET - FUEL FILTER	$36.37	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036736	TUBE - FUEL	$55.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR040124	CLIP	$3.90	To Order

Photo	Part No	Description	Price (each)	Stock
	LR040357	TUBE - DRAIN	$48.98	To Order

Photo	Part No	Description	Price (each)	Stock
	LR086433	RETAINER - TUBE	$6.28	To Order

Photo	Part No	Description	Price (each)	Stock
	LR084452	SENSOR	$126.90	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082760	BRACKET - FUEL TUBE SUPPORT	$10.70	To Order

Photo	Part No	Description	Price (each)	Stock
	LR086377	TUBE - FUEL SUPPLY AND VAPOUR	$204.34	To Order

Photo	Part No	Description	Price (each)	Stock
	LR084459	FILTER - FUEL - PRIMARY	$211.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081530	GROMMET - FUEL FILTER	$10.58	To Order

Photo	Part No	Description	Price (each)	Stock
	MTC7458	PAD - FOAM	$34.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LR088541	PIPE - FUEL	$157.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094012	TUBE - FUEL	$99.56	To Order
	LR105299	TUBE - FUEL	$110.21	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	LR004596	CLIP	LR004596 CLIP 12 x 7.8X.8/4, Plastic	$1.62	2
HS1	RYG500900	SCREW	RYG500900 SCREW Bolt And Washer, Bracket to frame, Hexagonal Head, M6X30	$4.03	3
9A223	LR040124	CLIP	LR040124 CLIP Triple	$3.90	1
9B401	LR040357	TUBE - DRAIN	LR040357 TUBE - DRAIN Drain	$48.98	1
9J278	LR086433	RETAINER - TUBE	LR086433 RETAINER - TUBE	$6.28	5
9J308	LR084452	SENSOR	LR084452 SENSOR Sensor - Water Detector	$126.90	1
9J326A	LR088541	PIPE - FUEL	LR088541 PIPE - FUEL Centre	$157.74	1
9J326B	LR094012	TUBE - FUEL	LR094012 TUBE - FUEL Front / To: HA013514	$99.56	1
9J326B	LR105299	TUBE - FUEL	LR105299 TUBE - FUEL Front / From: HA013515	$110.21	1
9N944	LR082760	BRACKET - FUEL TUBE SUPPORT	LR082760 BRACKET - FUEL TUBE SUPPORT	$10.70	1
9S284	LR086377	TUBE - FUEL SUPPLY AND VAPOUR	LR086377 TUBE - FUEL SUPPLY AND VAPOUR Rear	$204.34	1
9S324	LR084459	FILTER - FUEL - PRIMARY	LR084459 FILTER - FUEL - PRIMARY	$211.31	1
17C431	LR081530	GROMMET - FUEL FILTER	LR081530 GROMMET - FUEL FILTER Rear	$10.58	2
18C900	MTC7458	PAD - FOAM	MTC7458 PAD - FOAM	$34.12	2
9155	LR041978	FILTER - FUEL IN STOCK	LR041978 FILTER - FUEL Less Bracket IN STOCK	$123.10	1
9180	LR081087	BRACKET - FUEL FILTER	LR081087 BRACKET - FUEL FILTER	$36.37	1
9289	LR036736	TUBE - FUEL	LR036736 TUBE - FUEL	$55.03	1
