Find Your Part

View All

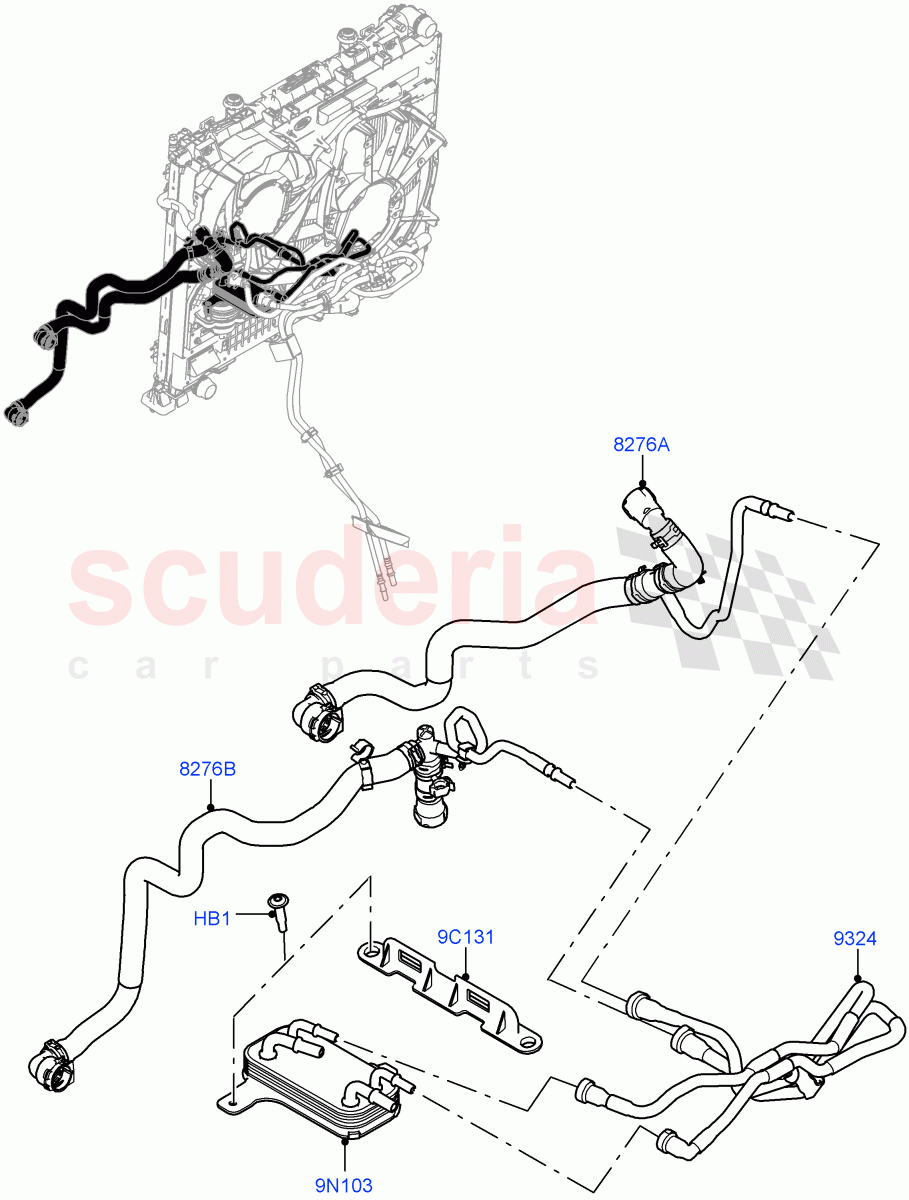

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR034354	BOLT - PAN - TORX	$1.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081673	HOSE - WATER INLET	$126.06	To Order

Photo	Part No	Description	Price (each)	Stock
	LR042509	BRACKET - FUEL COOLER	$19.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038811	COOLER - FUEL	$204.59	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR034354	BOLT - PAN - TORX	LR034354 BOLT - PAN - TORX M6 x 19MM, Torx	$1.01	3
9C131	LR042509	BRACKET - FUEL COOLER	LR042509 BRACKET - FUEL COOLER For Fuel Cooler	$19.79	1
9N103	LR038811	COOLER - FUEL	LR038811 COOLER - FUEL Main	$204.59	1
8276A	LR081673	HOSE - WATER INLET	LR081673 HOSE - WATER INLET Intercooler Outlet	$126.06	1
8276B	LR081672	HOSE - WATER INLET	LR081672 HOSE - WATER INLET Intercooler Inlet / To: HA043237	$145.89	1
8276B	LR106822	HOSE - WATER INLET	LR106822 HOSE - WATER INLET Intercooler Inlet / From: HA043238	$145.89	1
9324	LR081679	HOSE - FUEL COOLER	LR081679 HOSE - FUEL COOLER Fuel Cooler Inlet, Outlet, Set Of 2 Pieces / To: HA043237	$114.46	1
9324	LR106819	HOSE - FUEL COOLER	LR106819 HOSE - FUEL COOLER Fuel Cooler Inlet, Outlet, Set Of 2 Pieces / From: HA043238	$114.46	1
