Turbocharger (Rh Side - Secondary, Nitra Plant Build) (3.0 V6 D Gen2 Twin Turbo) ((V) Fromk2000001)

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] - Turbocharger (RH Side - Secondary, Nitra Plant Build) (3.0 V6 D Gen2 Twin Turbo) ((V) FROMK2000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FB106116 BOLT - HEX.HEAD Enquire To Order
Photo Part No Description Price (each) Stock
1419376 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR000628 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR113014 BOLT - HEX.HEAD Enquire To Order
Photo Part No Description Price (each) Stock
LR038607 NUT Enquire To Order
Photo Part No Description Price (each) Stock
LR000053 NUT - FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
RYH500310 NUT AND WASHER - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
LR006028 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
RYG500160 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR113563 STUD Enquire To Order
Photo Part No Description Price (each) Stock
LR084664 GASKET - EXHAUST MANIFOLD Enquire To Order
Photo Part No Description Price (each) Stock
LR020589 SEAL - TURBINE SHUT OFF VALVE Enquire To Order
Photo Part No Description Price (each) Stock
LR087351 HOSE - OIL RETURN Enquire To Order
Photo Part No Description Price (each) Stock
LR116631 TURBOCHARGER Enquire To Order
Photo Part No Description Price (each) Stock
LR087348 GASKET - OIL RETURN HOSE Enquire To Order
Photo Part No Description Price (each) Stock
LR062026 HOSE - AIR Enquire To Order
Photo Part No Description Price (each) Stock
LR033284 KIT - ACTUATOR SHUT OFF VALVE Enquire To Order
Photo Part No Description Price (each) Stock
LR035450 VALVE - SHUT-OFF Enquire To Order
Photo Part No Description Price (each) Stock
LR116634 KIT - TURBINE SHUT OFF VALVE Enquire To Order
Photo Part No Description Price (each) Stock
LR035477 PIPE - VAC CONTROL TO TURBO VALVE Enquire To Order
Photo Part No Description Price (each) Stock
LR035486 PIPE - VAC CONTROL TO TURBO VALVE Enquire To Order
Photo Part No Description Price (each) Stock
LR058373 BRACKET - SUPPORT - SHUT OFF VALVE Enquire To Order
Photo Part No Description Price (each) Stock
LR063745 BRACKET - TURBOCHARGER Enquire To Order
Photo Part No Description Price (each) Stock
LR013613 HEAT SHIELD - EXHAUST MANIFOLD Enquire To Order
Photo Part No Description Price (each) Stock
LR013602 HEAT SHIELD - TURBOCHARGER Enquire To Order
View All

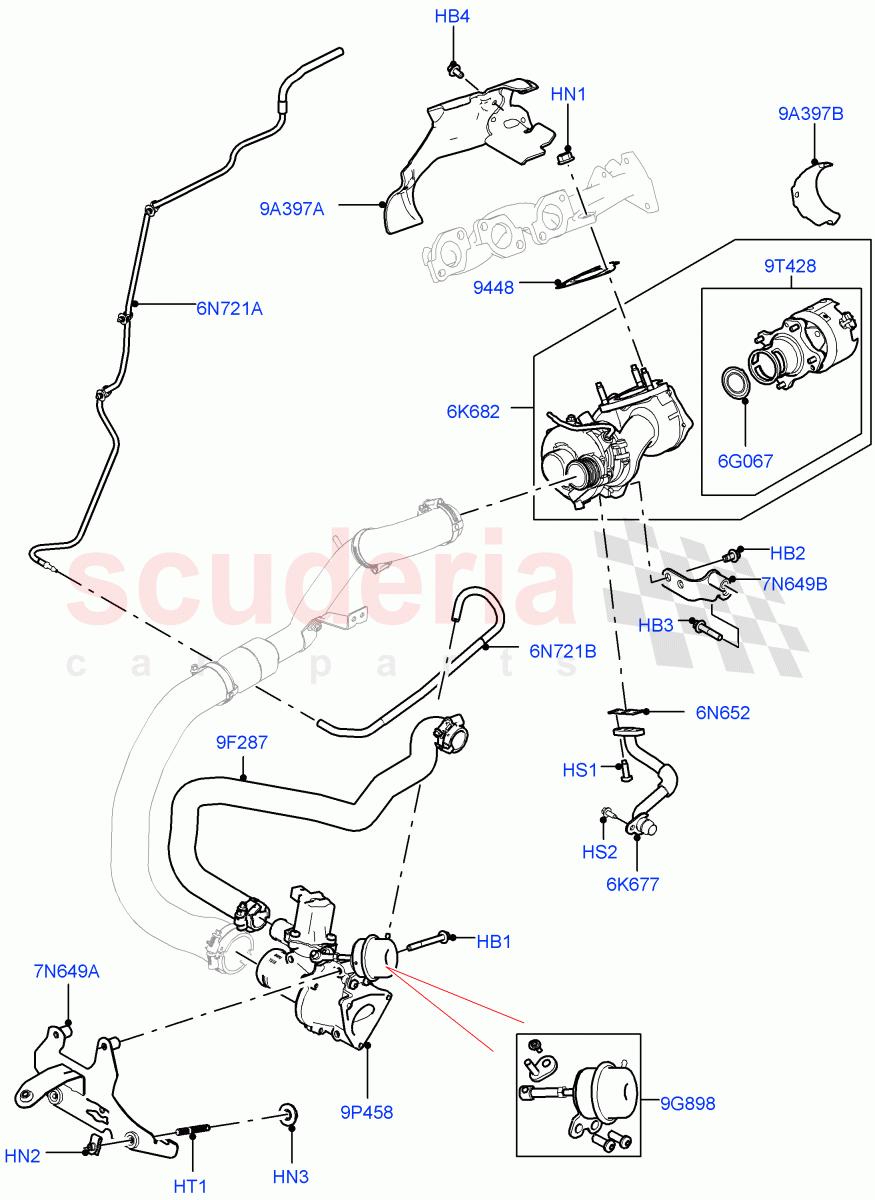

Turbocharger (RH Side - Secondary, Nitra Plant Build) (3.0 V6 D Gen2 Twin Turbo) ((V) FROMK2000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FB106116
BOLT - HEX.HEAD
M6 x 55MM, Shut Off Valve / From: K2000001 		- 3 Enquire
HB2 1419376
BOLT
Bracket, Hexagonal Head, M8 X 16MM, Turbocharger Assembly / From: K2000001 		- 3 Enquire
HB3 LR000628
BOLT
Bracket, Hexagonal Head, M8 x 40MM, Turbocharger Assembly / From: K2000001 		- 1 Enquire
HB4 LR113014
BOLT - HEX.HEAD
Heat Shield, Hexagonal Head, M6 x 11.5MM / From: K2000001 		- 3 Enquire
HN1 LR038607
NUT
M8, Turbocharger Inlet / From: K2000001 		- 3 Enquire
HN2 LR000053
NUT - FLANGED
M6 / From: K2000001 		- 2 Enquire
HN3 RYH500310
NUT AND WASHER - HEX.
Bracket, Hexagonal Head, M6, Nut And Washer, Shut Off Valve / From: K2000001 		- 2 Enquire
HS1 LR006028
SCREW
M6 X 16MM, Torx, Tube - Oil Return, Turbocharger / From: K2000001 		- 2 Enquire
HS2 RYG500160
SCREW
Cylinder Block, Hexagonal Head, M6 X 14MM, Tube - Oil Return / From: K2000001 		- 1 Enquire
HT1 LR113563
STUD
Bracket, Shut Off Valve / From: K2000001 		- 2 Enquire
6G067 LR020589
SEAL - TURBINE SHUT OFF VALVE
Repair Kit, Turbine Shut Off Valve / From: K2000001 		- 1 Enquire
6K677 LR087351
HOSE - OIL RETURN
From: K2000001 		- 1 Enquire
6K682 LR116631
TURBOCHARGER
3.0 V6 D Gen2 Twin Turbo / RH, Secondary / From: K2000001 		- 1 Enquire
6N652 LR087348
GASKET - OIL RETURN HOSE
Gasket - Turbocharger Oil Return Hose, Upper / From: K2000001 		- 1 Enquire
6N721A LR035477
PIPE - VAC CONTROL TO TURBO VALVE
Compressed Air Recirculation And Shut Off Valve, Upper, Vacuum Control / From: K2000001 		- 1 Enquire
6N721B LR035486
PIPE - VAC CONTROL TO TURBO VALVE
Compressed Air Recirculation And Shut Off Valve, Lower, Vacuum Control / From: K2000001 		- 1 Enquire
7N649A LR058373
BRACKET - SUPPORT - SHUT OFF VALVE
Shut Off Valve / From: K2000001 		- 1 Enquire
7N649B LR063745
BRACKET - TURBOCHARGER
Turbocharger / From: K2000001 		- 1 Enquire
9A397A LR013613
HEAT SHIELD - EXHAUST MANIFOLD
RH, Manifold To Turbocharger / From: K2000001 		- 1 Enquire
9A397B LR013602
HEAT SHIELD - TURBOCHARGER
RH, Turbocharger / From: K2000001 		- 1 Enquire
9F287 LR062026
HOSE - AIR
Compressed Air Recirculation, From Valve To Air Inlet Hose / From: K2000001 		- 1 Enquire
9G898 LR033284
KIT - ACTUATOR SHUT OFF VALVE
Compressed Air Recirculation And Shut Off Valve / From: K2000001 		- 1 Enquire
9P458 LR035450
VALVE - SHUT-OFF
Compressed Air Recirculation, Shut Off Valve / From: K2000001 		- 1 Enquire
9T428 LR116634
KIT - TURBINE SHUT OFF VALVE
Actuator, Seals And Fixing, Repair Kit / From: K2000001 		- 1 Enquire
9448 LR084664
GASKET - EXHAUST MANIFOLD
Manifold To Turbocharger / From: K2000001 		- 1 Enquire
