Vacuum Control And Air Injection (Vacuum Pump And Hoses, Solihull Plant Build) (3.0 V6 Diesel, 8...

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] - Vacuum Control And Air Injection (Vacuum Pump And Hoses, Solihull Plant Build) (3.0 V6 Diesel, 8...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR082782 BOLT - HEX.HEAD Enquire To Order
LR110748 BOLT - HEX.HEAD Enquire To Order
Photo Part No Description Price (each) Stock
LR049402 CLIP - DOUBLE Enquire To Order
Photo Part No Description Price (each) Stock
FN108042 NUT Enquire To Order
Photo Part No Description Price (each) Stock
1331241 STUD Enquire To Order
Photo Part No Description Price (each) Stock
LR096061 PUMP - VACUUM Enquire To Order
Photo Part No Description Price (each) Stock
LR096060 GASKET - VACUUM PUMP Enquire To Order
Photo Part No Description Price (each) Stock
LR081631 SENSOR - VACUUM Enquire To Order
Photo Part No Description Price (each) Stock
LR081606 HOSE - VACUUM Enquire To Order
Photo Part No Description Price (each) Stock
LR048196 HOSE - VACUUM Enquire To Order
Photo Part No Description Price (each) Stock
LR075844 HOSE - VACUUM Enquire To Order
View All

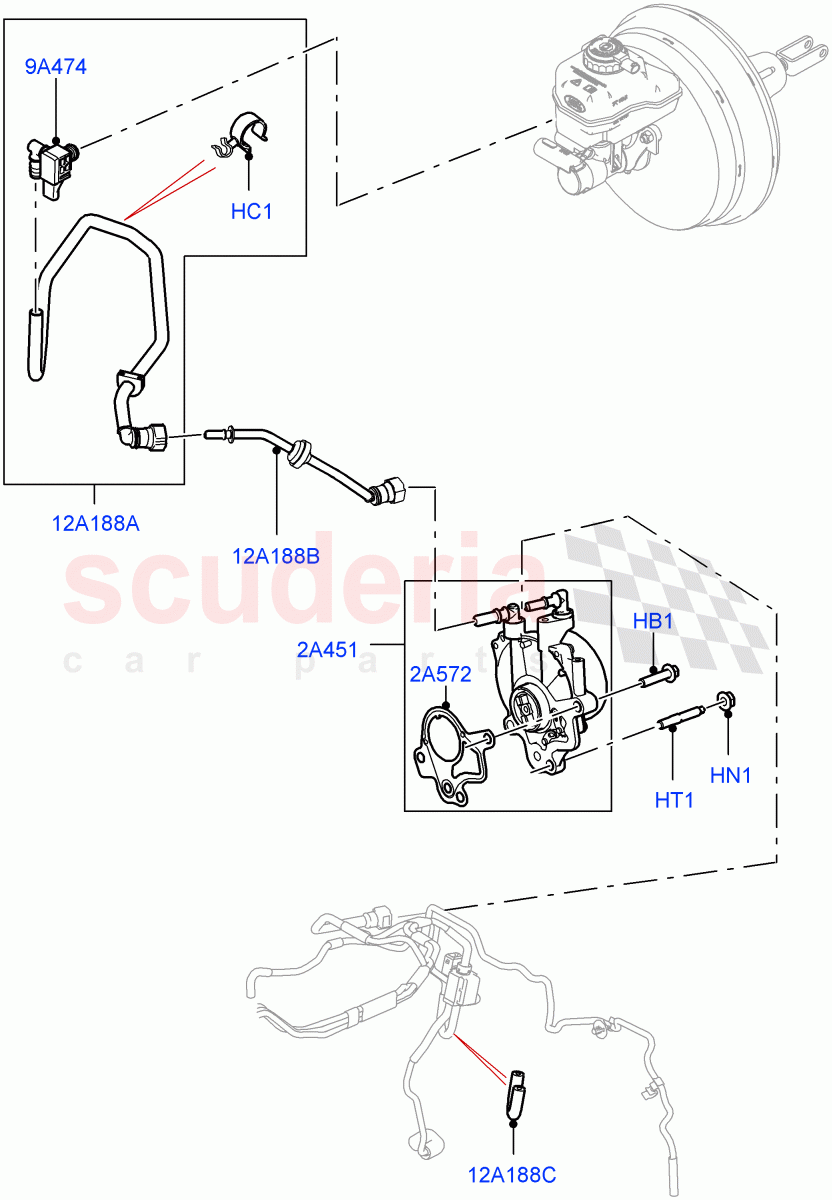

Vacuum Control And Air Injection (Vacuum Pump And Hoses, Solihull Plant Build) (3.0 V6 Diesel, 8 Speed Auto Trans ZF 8HP70 4WD, RHD) ((V) FROMHA000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR082782
BOLT - HEX.HEAD
M8 x 37MM / To: JA047776 		- 2 Enquire
HB1 LR110748
BOLT - HEX.HEAD
M8 x 37MM / From: JA047777 		- 2 Enquire
HC1 LR049402
CLIP - DOUBLE
Double, To Vacuum Hose 		- 1 Enquire
HN1 FN108042
NUT
M8 		- 1 Enquire
HT1 1331241
STUD
M8 X 15 + M8 X 35 		- 1 Enquire
2A451 LR096061
PUMP - VACUUM 		- 1 Enquire
2A572 LR096060
GASKET - VACUUM PUMP 		- 1 Enquire
9A474 LR081631
SENSOR - VACUUM 		- 1 Enquire
12A188A LR081606
HOSE - VACUUM
To Brake Booster 		- 1 Enquire
12A188B LR048196
HOSE - VACUUM
To Vacuum Pump 		- 1 Enquire
12A188C LR075844
HOSE - VACUUM
U-Type 		- 1 Enquire
