Exhaust Gas Recirculation (Nitra Plant Build) (3.0 V6 D Gen2 Twin Turbo) ((V) FROMK2000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] - Exhaust Gas Recirculation (Nitra Plant Build) (3.0 V6 D Gen2 Twin Turbo) ((V) FROMK2000001)

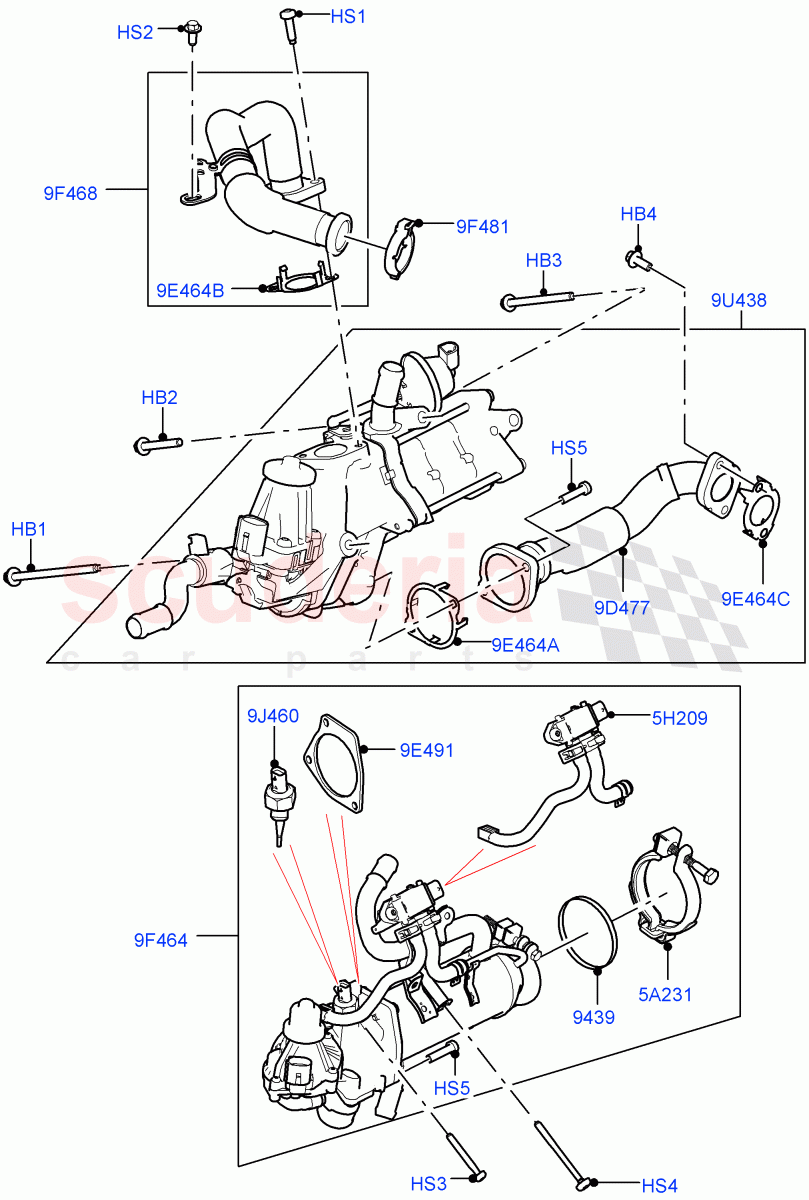

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1225745	BOLT AND WASHER - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR012201	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR009529	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1316028	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105436	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BYP500170	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR063123	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR063120	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005786	SCREW	Enquire	To Order
	LR005786	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR078958	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR087708	CLAMP - EXHAUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR087709	SENSOR - DIFFERENTIAL PRESSURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR078917	TUBE - EGR VALVE TO EXHAUST MANIFLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR136862	FILTER - EGR COOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR069681	EGR UNIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR063058	TUBE - EXHAUST GAS RECIRCULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR063121	CLAMP - TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR087707	SENSOR - EXHAUST GAS - TEMPERATURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR063122	EGR UNIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR078916	GASKET - EGR INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR078915	GASKET - EGR OUTLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR075627	GASKET - EXHAUST MANIFOLD	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	1225745	BOLT AND WASHER - HEX.HEAD	1225745 BOLT AND WASHER - HEX.HEAD Bolt And Washer, M6 X 105MM / From: K2000001	-	1	Enquire
HB2	LR012201	BOLT	LR012201 BOLT Hexagonal Head, M6 x 45MM / From: K2000001	-	1	Enquire
HB3	LR009529	BOLT	LR009529 BOLT M6 x 80MM / From: K2000001	-	1	Enquire
HB4	1316028	BOLT	1316028 BOLT Exhaust Manifold, M6 X 16MM / From: K2000001	-	2	Enquire
HS1	LR105436	BOLT - HEX.HEAD	LR105436 BOLT - HEX.HEAD EGR Valve, M6 X 20MM, Torx / From: K2000001	-	2	Enquire
HS2	BYP500170	SCREW	BYP500170 SCREW Hexagonal Head, M6 x 14MM / From: K2000001	-	1	Enquire
HS3	LR063123	SCREW	LR063123 SCREW M6 x 50MM / From: K2000001	-	1	Enquire
HS4	LR063120	SCREW	LR063120 SCREW M6 x 70MM / From: K2000001	-	1	Enquire
HS5	LR005786	SCREW	LR005786 SCREW RH, EGR Unit, M6 x 25MM / From: K2000001	-	2	Enquire
HS5	LR005786	SCREW	LR005786 SCREW LH, EGR Cooler, M6 x 25MM / From: K2000001	-	4	Enquire
5A231	LR087708	CLAMP - EXHAUST	LR087708 CLAMP - EXHAUST EGR Inlet / From: K2000001	-	1	Enquire
5H209	LR087709	SENSOR - DIFFERENTIAL PRESSURE	LR087709 SENSOR - DIFFERENTIAL PRESSURE Exhaust Gas Pressure / From: K2000001	-	1	Enquire
9D477	LR078917	TUBE - EGR VALVE TO EXHAUST MANIFLD	LR078917 TUBE - EGR VALVE TO EXHAUST MANIFLD RH / From: K2000001	-	1	Enquire
9E464A	LR078916	GASKET - EGR INLET	LR078916 GASKET - EGR INLET RH, EGR Inlet, Located Between The EGR Valve And The EGR Tube / From: K2000001	-	1	Enquire
9E464B	LR078915	GASKET - EGR OUTLET	LR078915 GASKET - EGR OUTLET EGR Outlet / From: K2000001	-	1	Enquire
9E464C	LR075627	GASKET - EXHAUST MANIFOLD	LR075627 GASKET - EXHAUST MANIFOLD RH, EGR Tube / From: K2000001	-	1	Enquire
9E491	LR136862	FILTER - EGR COOLER	LR136862 FILTER - EGR COOLER From: K2000001	-	1	Enquire
9F464	LR069681	EGR UNIT	LR069681 EGR UNIT LH / From: K2000001	-	1	Enquire
9F468	LR063058	TUBE - EXHAUST GAS RECIRCULATION	LR063058 TUBE - EXHAUST GAS RECIRCULATION EGR Valve To Inlet Manifold / From: K2000001	-	1	Enquire
9F481	LR063121	CLAMP - TUBE	LR063121 CLAMP - TUBE EGR Tube / From: K2000001	-	1	Enquire
9J460	LR087707	SENSOR - EXHAUST GAS - TEMPERATURE	LR087707 SENSOR - EXHAUST GAS - TEMPERATURE Exhaust Gas Temperature Sensor / From: K2000001	-	1	Enquire
9U438	LR063122	EGR UNIT	LR063122 EGR UNIT RH, Includes Valve, Cooler, Bypass Actuator And Tube From Exhaust Manifold / From: K2000001	-	1	Enquire
9439	LR078958	GASKET	LR078958 GASKET LH, EGR Inlet / From: K2000001	-	1	Enquire
