Name: Thermostat/Housing & Related Parts (Solihull Plant Build) (3.0 V6 D Gen2 Mono Turbo, Less Immersion Heater, Active Tranmission Warming) ((V) FROMKA000001)
Rating: 5.0 (1 reviews)

Thermostat/Housing & Related Parts (Solihull Plant Build) (3.0 V6 D Gen2 Mono Turbo, Less Immersion Heater, Active Tranmission Warming) ((V) FROMKA000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] - Thermostat/Housing & Related Parts (Solihull Plant Build) (3.0 V6 D Gen2 Mono Turbo, Less Immersion...

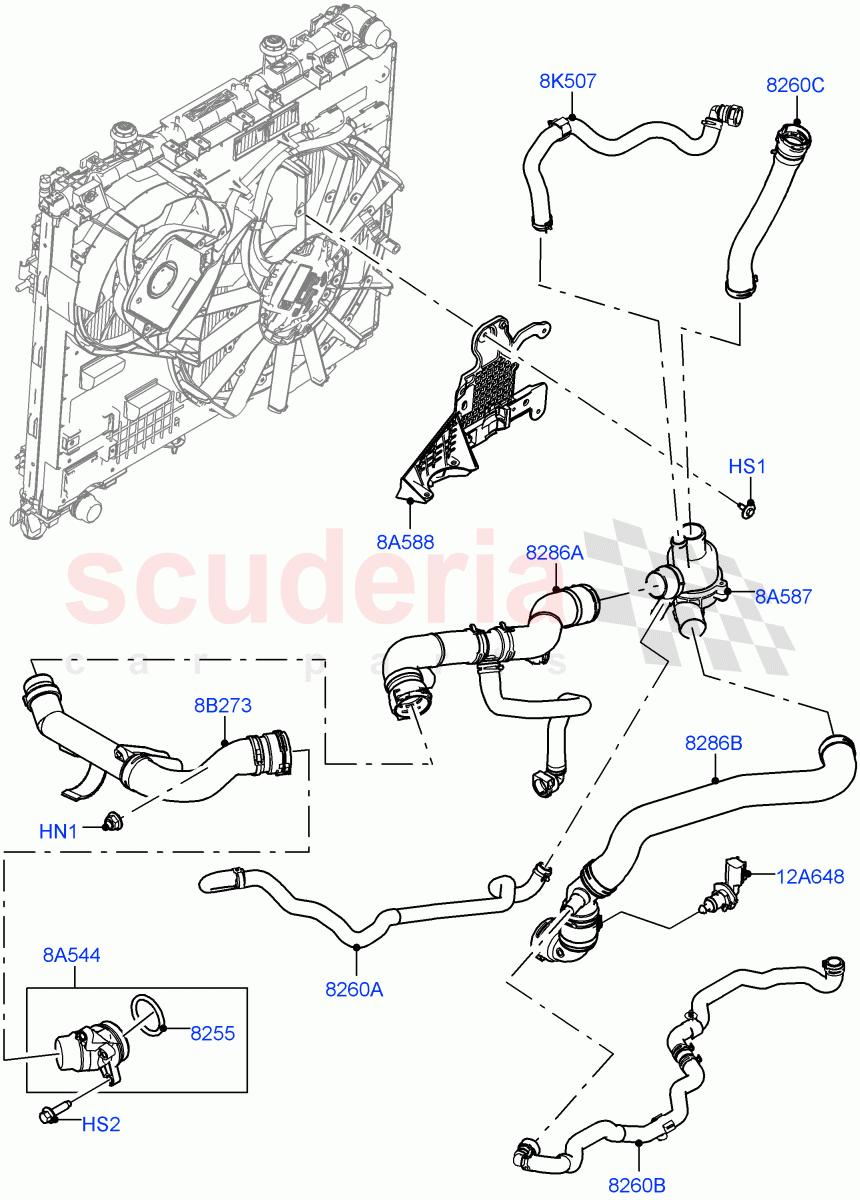

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FX106046	NUT - FLANGED	$0.61	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYG500830	Screw	$1.16	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500220	SCREW	$3.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	1336551	GASKET	$3.57	To Order

Photo	Part No	Description	Price (each)	Stock
	LR078764	HOSE - WATER	$71.64	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062095	HOSE - WATER	$203.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR078766	HOSE - THERMOSTAT	$145.71	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121835	HOSE - RADIATOR	$108.28	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121834	HOSE - RADIATOR	$162.49	To Order

Photo	Part No	Description	Price (each)	Stock
	LR013165	TUBE - CONNECTING	$30.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121833	CONNECTION - WATER OUTLET	$109.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR079609	BRACKET - THERMOSTAT	$103.47	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035627	HOSE - RADIATOR	$34.14	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062097	HOSE - WATER	$46.13	To Order

Photo	Part No	Description	Price (each)	Stock
	4346360	SENSOR - ENGINE COOLANT TEMPERATURE	$57.30	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HN1	FX106046	NUT - FLANGED IN STOCK	FX106046 NUT - FLANGED Hexagonal Head, M6 / From: KA000001 IN STOCK	$0.61	1
HS1	RYG500830	Screw	RYG500830 Screw M6 X 16 HEX, Thermostat Assy To Fan Shroud / From: KA000001	$1.16	2
HS2	RYG500220	SCREW IN STOCK	RYG500220 SCREW Hexagonal Head, M6 X 20MM / From: KA000001 IN STOCK	$3.31	2
8A544	LR013165	TUBE - CONNECTING	LR013165 TUBE - CONNECTING From: KA000001	$30.40	1
8A587	LR121833	CONNECTION - WATER OUTLET	LR121833 CONNECTION - WATER OUTLET From: KA000001	$109.97	1
8A588	LR079609	BRACKET - THERMOSTAT	LR079609 BRACKET - THERMOSTAT From: KA000001	$103.47	1
8B273	LR035627	HOSE - RADIATOR	LR035627 HOSE - RADIATOR Bottom, Engine Side, Thermostat To Engine / From: KA000001	$34.14	1
8K507	LR062097	HOSE - WATER	LR062097 HOSE - WATER Thermostat To Engine, Upper / From: KA000001	$46.13	1
12A648	4346360	SENSOR - ENGINE COOLANT TEMPERATURE	4346360 SENSOR - ENGINE COOLANT TEMPERATURE From: KA000001	$57.30	1
8255	1336551	GASKET	1336551 GASKET From: KA000001	$3.57	1
8260A	LR078764	HOSE - WATER	LR078764 HOSE - WATER Expansion Reservoir To Thermostat / From: KA000001	$71.64	1
8260B	LR062095	HOSE - WATER	LR062095 HOSE - WATER Connects Auxiliary Radiators / From: KA000001	$203.59	1
8260C	LR078766	HOSE - THERMOSTAT	LR078766 HOSE - THERMOSTAT Thermostat To Top Radiator Hose, Upper / From: KA000001	$145.71	1
8286A	LR121835	HOSE - RADIATOR	LR121835 HOSE - RADIATOR Bottom, Thermostat Side, Thermostat To Engine / From: KA000001	$108.28	1
8286B	LR121834	HOSE - RADIATOR	LR121834 HOSE - RADIATOR Bottom, Radiator / From: KA000001	$162.49	1
