Radiator/Coolant Overflow Container (Intercooler Radiator, Water Charge Air Cooler, Solihull Plant...

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] - Radiator/Coolant Overflow Container (Intercooler Radiator, Water Charge Air Cooler, Solihull Plant...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.45 IN STOCK
Photo Part No Description Price (each) Stock
LR062430 RADIATOR $527.14 To Order
LR106644 RADIATOR $527.14 To Order
Photo Part No Description Price (each) Stock
LR063167 CONNECTION - WATER $60.93 To Order
Photo Part No Description Price (each) Stock
LR063055 PLUG - RADIATOR DRAIN $15.28 To Order
Photo Part No Description Price (each) Stock
LR081673 HOSE - WATER INLET $126.06 To Order
Photo Part No Description Price (each) Stock
LR062105 HOSE - WATER $58.84 To Order
Photo Part No Description Price (each) Stock
LR081672 HOSE - WATER INLET $145.89 To Order
LR106822 HOSE - WATER INLET $145.89 To Order
Photo Part No Description Price (each) Stock
LR062108 PIPE - FILLER $52.42 To Order
Photo Part No Description Price (each) Stock
LR062457 HOSE - WATER $55.22 To Order
Photo Part No Description Price (each) Stock
LR062427 BRACKET - RADIATOR $7.32 To Order
Photo Part No Description Price (each) Stock
LR062429 BRACKET - RADIATOR UPPER $10.12 To Order
View All

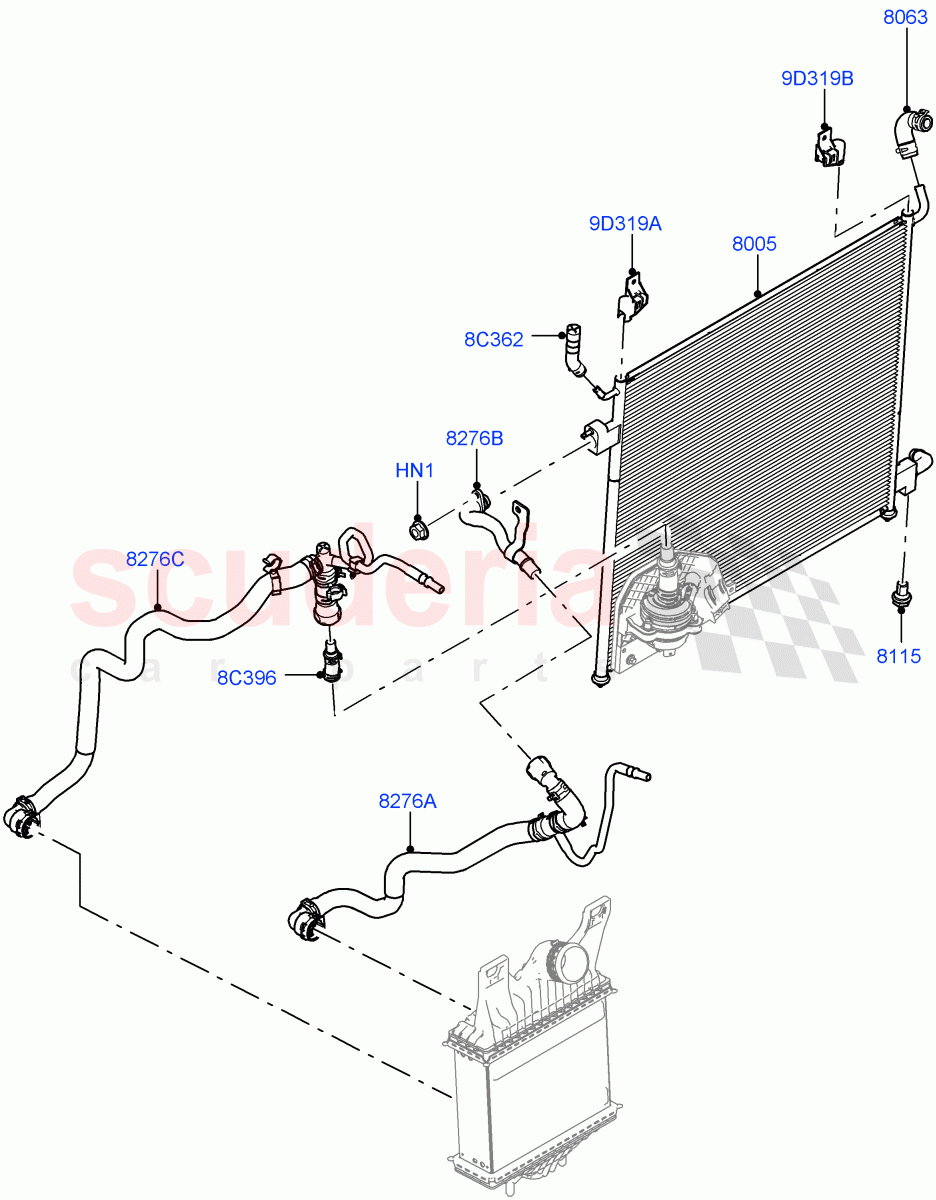

Radiator/Coolant Overflow Container (Intercooler Radiator, Water Charge Air Cooler, Solihull Plant Build) (3.0 V6 Diesel) ((V) FROMHA000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6
IN STOCK 		$1.45 1
8C362 LR062108
PIPE - FILLER
Fill, Tube 		$52.42 1
8C396 LR062457
HOSE - WATER
Outlet, Water Pump 		$55.22 1
9D319A LR062427
BRACKET - RADIATOR
LH Upper 		$7.32 1
9D319B LR062429
BRACKET - RADIATOR UPPER
RH Upper 		$10.12 1
8005 LR062430
RADIATOR
To: HA003064 		$527.14 1
8005 LR106644
RADIATOR
From: HA003065 		$527.14 1
8063 LR063167
CONNECTION - WATER
Radiator Hose 		$60.93 1
8115 LR063055
PLUG - RADIATOR DRAIN 		$15.28 1
8276A LR081673
HOSE - WATER INLET
Intercooler Outlet 		$126.06 1
8276B LR062105
HOSE - WATER
Inlet, Radiator 		$58.84 1
8276C LR081672
HOSE - WATER INLET
Intercooler Inlet / To: HA043237 		$145.89 1
8276C LR106822
HOSE - WATER INLET
Intercooler Inlet / From: HA043238 		$145.89 1
