Rear Seat Belts (Solihull Plant Build) ((V) FROMHA000001) of Land Rover Land Rover Discovery 5 (2017+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Discovery 5 (2017+) [2.0 Turbo Petrol AJ200P] - Rear Seat Belts (Solihull Plant Build) ((V) FROMHA000001)

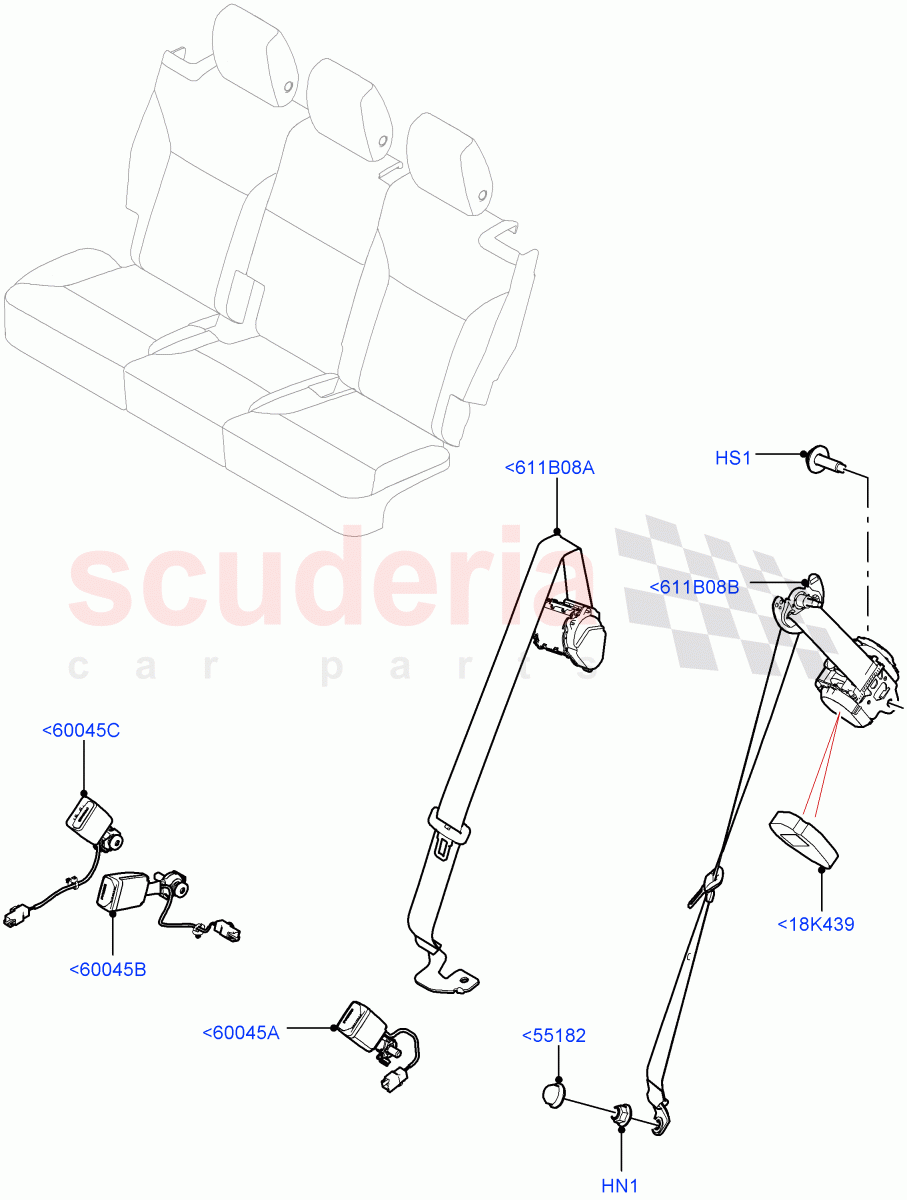

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FX110046	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR084136	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR050804	CAP - NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR102039	PAD - RETRACTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081155	BUCKLE - SEAT BELT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081154	BUCKLE - SEAT BELT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081150	BUCKLE - SEAT BELT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081172	SEAT BELT AND RETRACTOR	Enquire	To Order
	LR081172	SEAT BELT AND RETRACTOR	Enquire	To Order
	LR081171	SEAT BELT AND RETRACTOR	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR081174	SEAT BELT AND RETRACTOR	Enquire	To Order
	LR081175	SEAT BELT AND RETRACTOR	Enquire	To Order
	LR081176	SEAT BELT AND RETRACTOR	Enquire	To Order

...and 5 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<18K439	LR102039	PAD - RETRACTOR	LR102039 PAD - RETRACTOR RH/LH / From: HA003850	-	2	Enquire
<611B08A	LR081172	SEAT BELT AND RETRACTOR	LR081172 SEAT BELT AND RETRACTOR Seatbelt Lock Retract-STD BTS / Centre / To: JA999999	-	1	Enquire
<611B08A	LR081172	SEAT BELT AND RETRACTOR	LR081172 SEAT BELT AND RETRACTOR Seatbelt Lock Retraction-Automatic / Centre / From: KA000001	-	1	Enquire
<611B08A	LR081171	SEAT BELT AND RETRACTOR	LR081171 SEAT BELT AND RETRACTOR St Belt Retractor Lock Less Clt Std / Centre / To: JA999999	-	1	Enquire
<611B08A	LR081171	SEAT BELT AND RETRACTOR	LR081171 SEAT BELT AND RETRACTOR StBlt ELR Without Rear Pretensioner / Centre / From: KA000001	-	1	Enquire
<611B08B	LR081174	SEAT BELT AND RETRACTOR	LR081174 SEAT BELT AND RETRACTOR St Belt Retractor Lock Less Clt Std / RH, Outer / To: JA999999	-	1	Enquire
<611B08B	LR081175	SEAT BELT AND RETRACTOR	LR081175 SEAT BELT AND RETRACTOR Seatbelt Lock Retract-STD BTS / RH, Outer / To: JA999999	-	1	Enquire
<611B08B	LR081176	SEAT BELT AND RETRACTOR	LR081176 SEAT BELT AND RETRACTOR St Belt Retractor Lock Less Clt Std / LH, Outer / To: JA999999	-	1	Enquire
<611B08B	LR081177	SEAT BELT AND RETRACTOR	LR081177 SEAT BELT AND RETRACTOR Seatbelt Lock Retract-STD BTS / LH, Outer / To: JA999999	-	1	Enquire
<611B08B	LR116060	SEAT BELT AND RETRACTOR	LR116060 SEAT BELT AND RETRACTOR St Belt Retractor Lock Less Clt Std / RH, Outer / From: KA000001	-	1	Enquire
<611B08B	LR116062	SEAT BELT AND RETRACTOR	LR116062 SEAT BELT AND RETRACTOR Seatbelt Lock Retract-STD BTS / RH, Outer / From: KA000001	-	1	Enquire
<611B08B	LR116063	SEAT BELT AND RETRACTOR	LR116063 SEAT BELT AND RETRACTOR StBlt ELR Without Rear Pretensioner / LH, Outer / From: KA000001	-	1	Enquire
<611B08B	LR116064	SEAT BELT AND RETRACTOR	LR116064 SEAT BELT AND RETRACTOR Seatbelt Lock Retraction-Automatic / LH, Outer / From: KA000001	-	1	Enquire
<55182	LR050804	CAP - NUT	LR050804 CAP - NUT	-	2	Enquire
<60045A	LR081155	BUCKLE - SEAT BELT	LR081155 BUCKLE - SEAT BELT LH	-	1	Enquire
<60045B	LR081154	BUCKLE - SEAT BELT	LR081154 BUCKLE - SEAT BELT Centre	-	1	Enquire
<60045C	LR081150	BUCKLE - SEAT BELT	LR081150 BUCKLE - SEAT BELT RH	-	1	Enquire
HN1	FX110046	NUT - HEX.	FX110046 NUT - HEX. M10	-	2	Enquire
HS1	LR084136	SCREW	LR084136 SCREW Attaches Belt Retractor, M10 X 31MM, Torx	-	2	Enquire
