Load Compartment Trim (Nitra Plant Build, Commercial) ((V) Fromm2000001)

Land Rover Discovery 5 (2017+) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Discovery 5 (2017+) [2.0 Turbo Petrol AJ200P] - Load Compartment Trim (Nitra Plant Build, Commercial) ((V) FROMM2000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYP501080 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR104075 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
FB108106 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR032819 BOLT AND WASHER - TORX HEAD Enquire To Order
Photo Part No Description Price (each) Stock
LR124894 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR149638 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
RZM500070 PIN - SPECIAL Enquire To Order
Photo Part No Description Price (each) Stock
LR068826 NUT Enquire To Order
Photo Part No Description Price (each) Stock
LR003808 BOLT - HEX.HEAD Enquire To Order
Photo Part No Description Price (each) Stock
LR142857 PROP STAND - FLOOR Enquire To Order
Photo Part No Description Price (each) Stock
LR114321 LEVER - LOAD COMPARTMENT GAP HIDER Enquire To Order
Photo Part No Description Price (each) Stock
LR142845 HANGER - COAT Enquire To Order
Photo Part No Description Price (each) Stock
LR144657 TRAY - PACKAGE Enquire To Order
LR144658 TRAY - PACKAGE Enquire To Order
Photo Part No Description Price (each) Stock
LR142379 PARTITION - NET TYPE Enquire To Order
Photo Part No Description Price (each) Stock
LR088865 HOOK-LUGGAGE COMPARTMENT-TIE DOWN Enquire To Order
Photo Part No Description Price (each) Stock
LR142855 PANEL - FLOOR Enquire To Order
Photo Part No Description Price (each) Stock
LR142856 PANEL - FLOOR Enquire To Order
Photo Part No Description Price (each) Stock
LR142383 BRACKET - SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
LR142384 BRACKET - SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
LR142376 BRACKET - SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
LR142864 SUPPORT - FRAME Enquire To Order
Photo Part No Description Price (each) Stock
LR142868 SUPPORT - FRAME Enquire To Order
Photo Part No Description Price (each) Stock
LR142385 MAT - ANTISLIP - RUBBER Enquire To Order
Photo Part No Description Price (each) Stock
LR142386 MAT - ANTISLIP - RUBBER Enquire To Order
Photo Part No Description Price (each) Stock
LR142387 MAT - ANTISLIP - RUBBER Enquire To Order
Photo Part No Description Price (each) Stock
LR142380 COVER Enquire To Order
LR142381 COVER Enquire To Order
Photo Part No Description Price (each) Stock
LR142872 TRAY - PACKAGE Enquire To Order
LR142873 TRAY - PACKAGE Enquire To Order
Photo Part No Description Price (each) Stock
LR142874 MAT - LOADING COMPARTMENT Enquire To Order
Photo Part No Description Price (each) Stock
LR142875 MAT - LOADING COMPARTMENT Enquire To Order
Photo Part No Description Price (each) Stock
LR113618 CARPET - LUGGAGE COMPARTMENT Enquire To Order
LR113621 CARPET - LUGGAGE COMPARTMENT Enquire To Order
View All

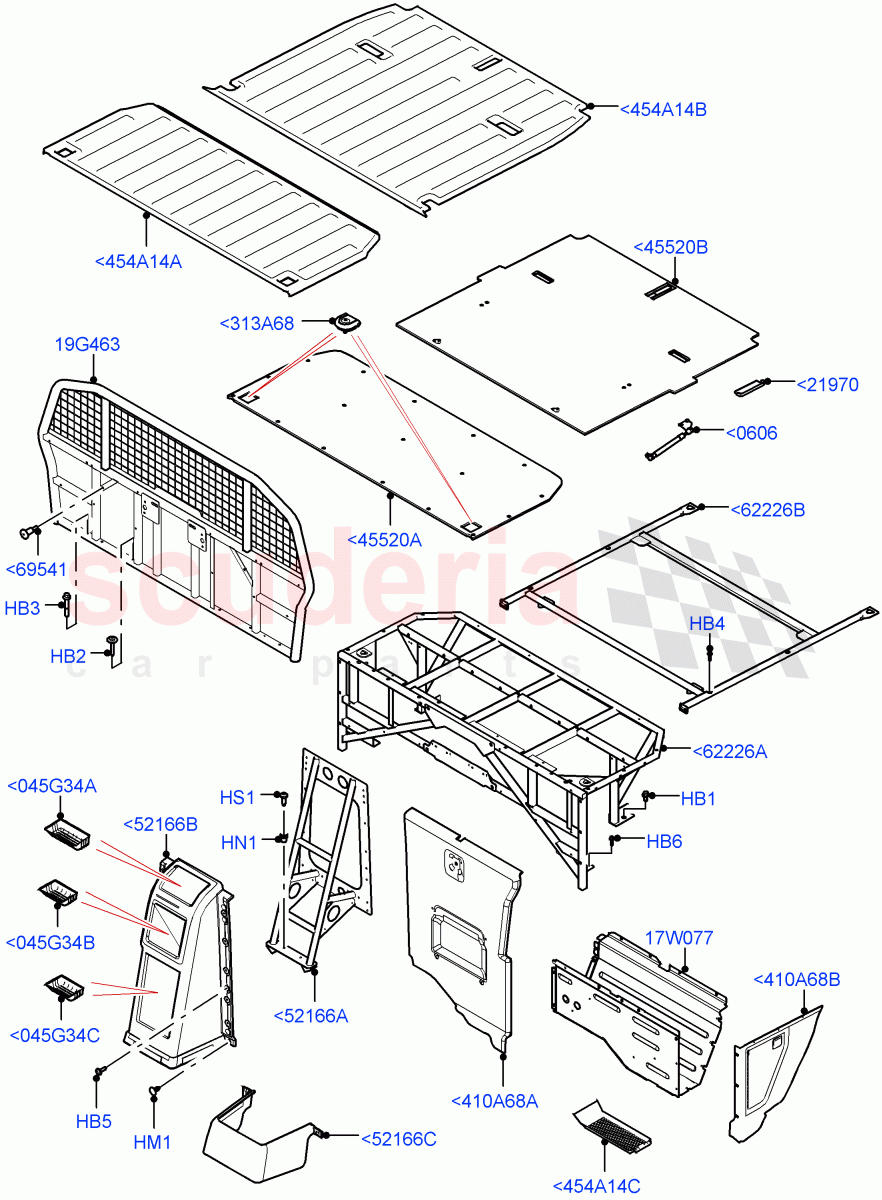

Load Compartment Trim (Nitra Plant Build, Commercial) ((V) FROMM2000001) of Land Rover Land Rover Discovery 5 (2017+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<045G34A LR142385
MAT - ANTISLIP - RUBBER
Upper / From: M2000001 		- 1 Enquire
<045G34B LR142386
MAT - ANTISLIP - RUBBER
Middle / From: M2000001 		- 1 Enquire
<045G34C LR142387
MAT - ANTISLIP - RUBBER
Lower / From: M2000001 		- 1 Enquire
<313A68 LR088865
HOOK-LUGGAGE COMPARTMENT-TIE DOWN
RH/LH / From: M2000001 		- 2 Enquire
<410A68A LR142380
COVER
RH, Barrier / From: M2000001 		- 1 Enquire
<410A68A LR142381
COVER
LH, Barrier / From: M2000001 		- 1 Enquire
<410A68B LR142872
TRAY - PACKAGE
LH, Lid / From: M2000001 		- 1 Enquire
<410A68B LR142873
TRAY - PACKAGE
RH, Lid / From: M2000001 		- 1 Enquire
<454A14A LR142874
MAT - LOADING COMPARTMENT
Front / From: M2000001 		- 1 Enquire
<454A14B LR142875
MAT - LOADING COMPARTMENT
Rear / From: M2000001 		- 1 Enquire
<454A14C LR113618
CARPET - LUGGAGE COMPARTMENT
RH, Tray / From: M2000001 		- 1 Enquire
<454A14C LR113621
CARPET - LUGGAGE COMPARTMENT
LH, Tray / From: M2000001 		- 1 Enquire
<0606 LR142857
PROP STAND - FLOOR
RH/LH / From: M2000001 		- 2 Enquire
<21970 LR114321
LEVER - LOAD COMPARTMENT GAP HIDER
RH/LH / From: M2000001 		- 2 Enquire
<45520A LR142855
PANEL - FLOOR
Front / From: M2000001 		- 1 Enquire
<45520B LR142856
PANEL - FLOOR
Rear / From: M2000001 		- 1 Enquire
<52166A LR142383
BRACKET - SUPPORT
Inner / From: M2000001 		- 1 Enquire
<52166B LR142384
BRACKET - SUPPORT
Outer / From: M2000001 		- 1 Enquire
<52166C LR142376
BRACKET - SUPPORT
Base / From: M2000001 		- 1 Enquire
<62226A LR142864
SUPPORT - FRAME
Front / From: M2000001 		- 1 Enquire
<62226B LR142868
SUPPORT - FRAME
Rear / From: M2000001 		- 1 Enquire
<69541 LR142845
HANGER - COAT
RH/LH / From: M2000001 		- 2 Enquire
HB1 RYP501080
BOLT
M12 x 25MM / From: M2000001 		- 2 Enquire
HB2 LR104075
BOLT
M6 X 40MM / From: M2000001 		- 4 Enquire
HB3 FB108106
BOLT
Hexagonal Head, M8 x 50MM / From: M2000001 		- 2 Enquire
HB4 LR032819
BOLT AND WASHER - TORX HEAD
M8 X 20MM / From: M2000001 		- 4 Enquire
HB5 LR124894
BOLT
M6X16 / From: M2000001 		- 12 Enquire
HB6 LR149638
BOLT
M10 X 25MM / From: M2000001 		- 2 Enquire
HM1 RZM500070
PIN - SPECIAL
6.4 X 20.4, Push Pin / From: M2000001 		- 2 Enquire
HN1 LR068826
NUT
M6 x 15MM / From: M2000001 		- 2 Enquire
HS1 LR003808
BOLT - HEX.HEAD
M6 X 16MM, Torx / From: M2000001 		- 2 Enquire
17W077 LR144657
TRAY - PACKAGE
LH / From: M2000001 		- 1 Enquire
17W077 LR144658
TRAY - PACKAGE
RH / From: M2000001 		- 1 Enquire
19G463 LR142379
PARTITION - NET TYPE
From: M2000001 		- 1 Enquire
