Electronic Damper Control (Solihull Plant Build) (With Four Corner Air Suspension) ((V) FROMHA000001) of Land Rover Land Rover Discovery 5 (2017+) [2.0 Turbo Diesel]

View All

Land Rover Discovery 5 (2017+) [2.0 Turbo Diesel] - Electronic Damper Control (Solihull Plant Build) (With Four Corner Air Suspension) ((V)...

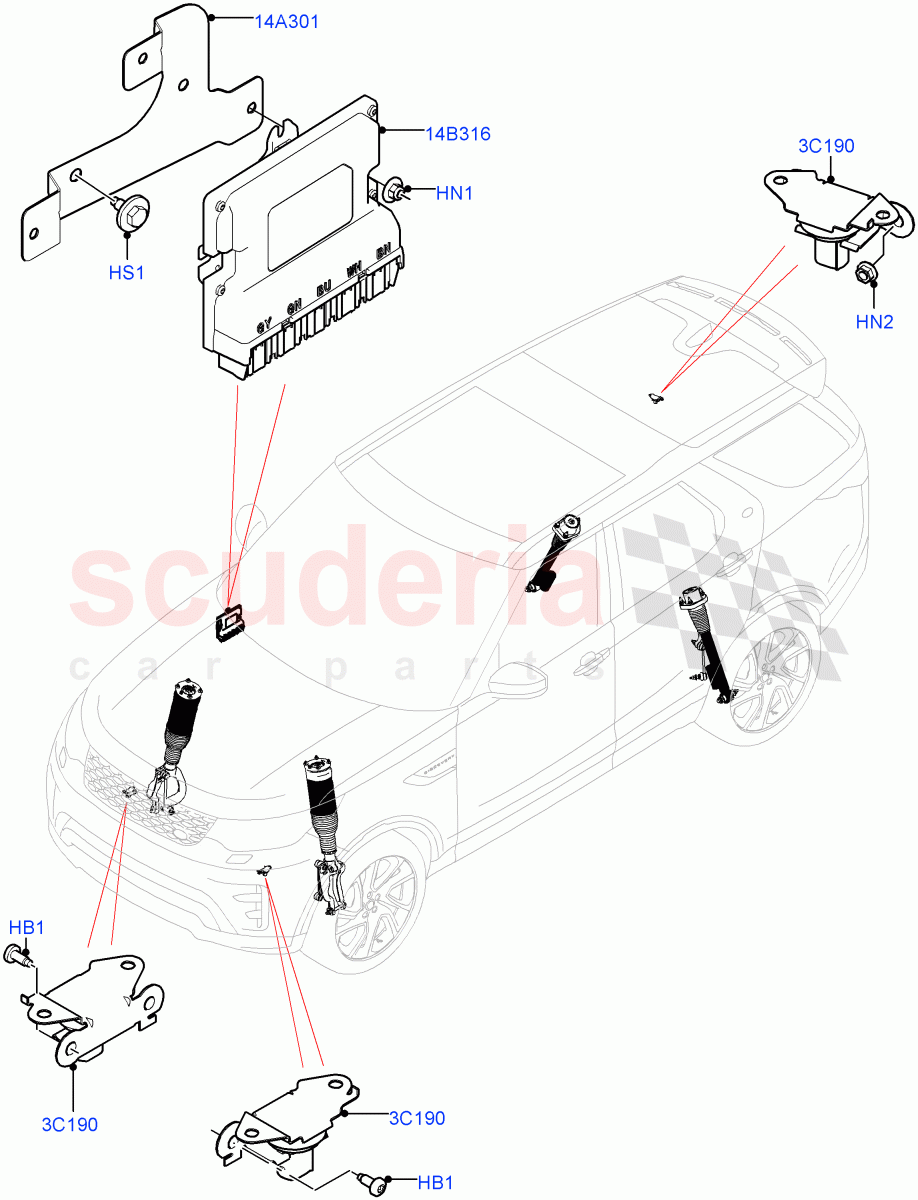

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	XYG500160	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500420	NUT AND WASHER - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002307	SCREW AND WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR084257	SENSOR - ACCELERATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081593	BRACKET - CONTROL MODULE	Enquire	To Order
	LR033258	BRACKET - CONTROL MODULE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR078644	MODULE - AIR SUSPENSION CONTROL	Enquire	To Order
	LR078645	MODULE - AIR SUSPENSION CONTROL	Enquire	To Order
	LR105420	MODULE - AIR SUSPENSION CONTROL	Enquire	To Order

...and 3 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	XYG500160	BOLT	XYG500160 BOLT Brake - Auto Terrain Response / M6 x 12MM, Torx	-	4	Enquire
HN1	RYH500420	NUT AND WASHER - HEX.	RYH500420 NUT AND WASHER - HEX. Hexagonal Head, M6, Nut And Washer	-	3	Enquire
HN2	FN106046	NUT - HEX.	FN106046 NUT - HEX. Brake - Auto Terrain Response / Hexagonal Head, M6	-	2	Enquire
HS1	LR002307	SCREW AND WASHER	LR002307 SCREW AND WASHER Hexagonal Head, M6 X 13.5MM	-	2	Enquire
3C190	LR084257	SENSOR - ACCELERATION	LR084257 SENSOR - ACCELERATION Brake - Auto Terrain Response / Accelerometer, Front / Rear	-	3	Enquire
14A301	LR081593	BRACKET - CONTROL MODULE	LR081593 BRACKET - CONTROL MODULE RHD / RH, Control Module	-	1	Enquire
14A301	LR033258	BRACKET - CONTROL MODULE	LR033258 BRACKET - CONTROL MODULE LHD / LH, Control Module	-	1	Enquire
14B316	LR078644	MODULE - AIR SUSPENSION CONTROL	LR078644 MODULE - AIR SUSPENSION CONTROL Terrain Response - Advanced / Air Suspension Module, LH/LHD RH/RHD / To: HA017001	-	1	Enquire
14B316	LR078645	MODULE - AIR SUSPENSION CONTROL	LR078645 MODULE - AIR SUSPENSION CONTROL Brake - Auto Terrain Response / Air Suspension Module, LH/LHD RH/RHD / To: HA017001	-	1	Enquire
14B316	LR105420	MODULE - AIR SUSPENSION CONTROL	LR105420 MODULE - AIR SUSPENSION CONTROL Traction Ctrl - Terrain Response SW / Air Suspension Module, LH/LHD RH/RHD / From: HA017002 / To: HA045786	-	1	Enquire
14B316	LR105419	MODULE - AIR SUSPENSION CONTROL	LR105419 MODULE - AIR SUSPENSION CONTROL Brake - Auto Terrain Response / Air Suspension Module, LH/LHD RH/RHD / From: HA017002 / To: HA999999	-	1	Enquire
14B316	LR111477	MODULE - AIR SUSPENSION CONTROL	LR111477 MODULE - AIR SUSPENSION CONTROL Terrain Response - Advanced / Air Suspension Module, LH/LHD RH/RHD / From: HA045787 / To: HA999999	-	1	Enquire
14B316	LR111479	MODULE - AIR SUSPENSION CONTROL	LR111479 MODULE - AIR SUSPENSION CONTROL Air Suspension Module, LH/LHD RH/RHD / From: JA000001	-	1	Enquire
